Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P5.21 |
| Minimum Order Quantity: | 1-1000sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T |
| Pixel Density: | 36864 Dots/sqm | Brightness: | >4000CD/sqm |
|---|---|---|---|
| Control System: | LSN | Cabinet Size: | 500×1000×80mm |
| Driver Mode: | 1/6 | Operation Power: | 220V 60HZ |
| Display Color: | 1.07 Billion | Refresh Rate: | >1800Hz |
| Highlight: | transparent led panel,transparent led display |
||
Transparent LED Screen

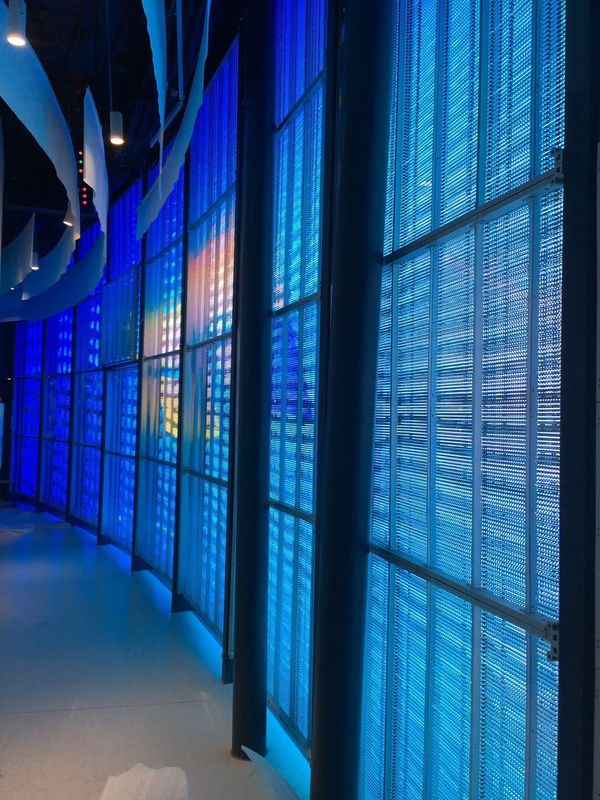

Featured with high transparency, PH5.21-5.21 Transparent LED Screen can be used at any place that has glass walls. Highly usable at places like bank, shopping mall, theater, commercial stage, chain store, hotel, public building and landmark building etc.
The Transparent LED Screen for Shopping Mall is only 65mm thick which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of 7kg/panel LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.
| LED Lamp | |
| Pixel Pitch | 5.21mm |
| Type | SMD3011 |
| Chip parameters | Red:(625-630nm) IV:(300-350mcd) |
| Chip parameters | Green:(523-526nm) IV:(1200-1500mcd) |
| Chip parameters | Blue:(470-473nm) IV:(200-250mcd) |
| LED Module | |
| Pixel Density | 36864 Dots/sqm |
| module layout | Horizontal/Vertical |
| module Resolution | 48×48dot |
| LED Cabinet | |
| Cabinet Size | 500×1000×80mm |
| Transparency | 65% |
| Cabinet Resolution | 96×192dot |
| Cabinet Weight | 7kg/Panel |
| IP Rating( front/back) | IP30 |
| Brightness | >4000CD/sqm |
| Viewing Angle(H/V) | 140o/140o |
| Viewing Distance | >6m |
| Grey Scale Levels | 16bit |
| Max.Power Consumption | 850 W/sqm |
| Ave.Power Consumption | 340 W/sqm |
| Refresh Rate | >1800Hz |
| Environment | Indoor |
| Drive Mode/Driver Position | Constant driving 1/6 Scan |
| Display Function | Text,Graphics,Video |
| Input Voltage | AC110-220V±10%,50/60Hz |
| Operating Temperature | - 20oC~50oC |
| Operating Humidity | 10%~90% |
| MTBF( mean time between failures) | 5000 hours |
| Operating Life | 100,000 hours |
| Control System | |
| Control Method | Synchronization/Asynchronization |
| Control System | Sending Card, Receiving Card,Receiving HUB |
| Input Signal | AVI/MPG/MPEG/TXT.etc |
| PC Operating System | Microsoft Windows 10, XP and Windows 7 |
| Communication Type | Net cable; 3G, WIFI(Sold separately) |
| Software | Nova Studio( HSTV-Nova) |
| Language | Chinese, Traditional Chinese, English, French, Spanish, Korean, Japanese, German, Russian |
| Certificate | CE,ROHS,FCC,ISO9001, TUV |
| Control Card Inputs | DVI,HDMI |
Packaging:
1:Flight Case(5 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(5 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
Certifications:
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
CONTACS:
OLEG
skype: jonniloc
whatsapp: +86-13244742283
Contact Person: oleg
Tel: +8613528772464
