Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE ,rohs ,FCC ,UL |
| Model Number: | SCXK-STP10 |
| Minimum Order Quantity: | 20sqm |
|---|---|
| Price: | negotation |
| Packaging Details: | the led display will be packaged with wooden box, flight case, |
| Delivery Time: | 6-8days after your payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000sqm/month |
| Material: | Iron And Steel | Warranty: | 3 Years |
|---|---|---|---|
| Led Chip: | Epistar | Usage: | Stadium Outdoor Usage |
| IP: | IP65 | Color: | Full Color |
| Module Size: | 320x160mm | Brightness: | 7500cd/sqm |
| Highlight: | perimeter led display,perimeter led screen |
||
Full Color P10 High Brightness Led Screen Display Outdoor For Stadium
Our factory has its own characteristic culture, which is full of passion and warmth, and has its own sunshine motto. Every employee working here is not only a worker, but also a friend, and our friendship is rich, and all of our employees are doing their best work every day. Our work motto is: passionate work, happy life; our spirit is: strict requirements, conscious dedication; our goal is: customer first, service first; our service concept is: loyal service, wonderful life.
1. The cabinets, featuring great moisture and corrosion proofing, enable themselves to work in all weather conditions.
2. Superb refresh rate provides you coherent video effects to meet your needs for high display quality.
3. Superb cost effective offers you both top notch quality and reasonable price, maximizing the value of your investment
Application:
Outdoor full-color LED display can be used in outdoor environments such as airports, highways, cultural and leisure plazas, commercial pedestrian streets, residential communities, downtown areas and other outdoor environments, with a variety of real-time signal sources and waterproof, dustproof, anti-static features, and its use is to publicize outdoor advertisements or broadcasting important news, events or TV programs.
Our led display feature as follows.
1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .
2). High brightness:7000cd/m2 Automatic or manual adjustment of the brightness of the display.
3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality: Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.
The parameter as follows:
| The outdoor full color outdoor P10 stadium led display | |||||||||
| LED Lamps | Type | SMD3535(High Brightness LEDs) | |||||||
| LED Standard | Real Pixel(1R1G1B) | ||||||||
| Red Wavelength | 625-630nm | ||||||||
| Green Wavelength | 515-530nm | ||||||||
| Blue Wavelength | 465-475nm | ||||||||
| LED Module | Pixel Pitch | 10mm | |||||||
| Module Size | 320mmx160mm | ||||||||
| Module Resolution | 32*16dots | ||||||||
| LED Cabinet | Cabinet Size | 960mmX960mm | |||||||
| Cabinet Resolution | 96pixels *96pixels | ||||||||
| Cabinets Material | Sealed Iron Cabinet | ||||||||
| led screen | Pixel Density | 10000dots/sqm | |||||||
| Drive IC | MBI5024 | ||||||||
| Power Supply | Series connection | ||||||||
| Brightness | >8500cd/sqm | ||||||||
| Display Color | 16.7million | ||||||||
| Viewing Angle | 160°(Horizontal),110°(Vertical) | ||||||||
| Best Viewing Distance | 10m~200m | ||||||||
| Max Power Consumption | 600 w/sq.m | ||||||||
| Average Power Consumption | 300 w/sq.m | ||||||||
| Weight | 45/sq.m | ||||||||
| Refresh Rate | 3000hz | ||||||||
| Input Voltage | AC220V/50H or AC110V/60H | ||||||||
| Output Voltage | DC5V,40A | ||||||||
| Grey Scale Levels | 16bit | ||||||||
| Display Colors | R(1024) x G(1024) x B(1024) | ||||||||
| MTBF | 10,000 hours | ||||||||

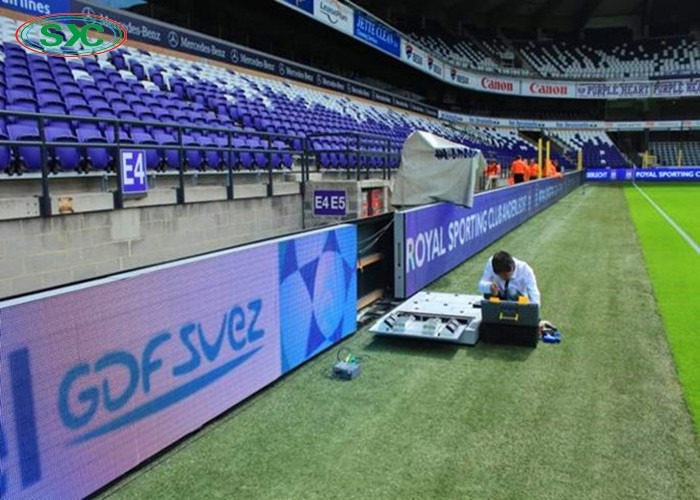

The project case as follows:
Features:
1. LED brightness is high and adjustable, which can meet the changing needs of customers in different environments.
2. Uniform illumination, high flatness, no mosaic phenomenon.
3. wide viewing angle, horizontal viewing angle up to 120 ° m. In this range, the image display effect will not change greatly. 4. 4.
4. 4. Outdoor display can adopt virtual pixel display to increase the resolution to four times of the real pixel, making the image softer and more lifelike.
5. 5. LED single lamp maintenance, low cost.
6. Unique cooling fan design, strong heat dissipation ability.
7. Environmentally friendly and energy saving.
