Name: Outdoor P10 LED Display 10mm Pixel Pitch 5000cd/m2 Brightness
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4.81
Price: 10000.00 USD
Availability: InStock

Home Products Outdoor Full Color LED Display

Outdoor P10 LED Display 10mm Pixel Pitch 5000cd/m2 Brightness

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P4.81

Payment & Shipping Terms:

Minimum Order Quantity:	3 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	10mm	Brightness:	>=5000cd/m2
Pixel Density:	10000dots/sqm	Display Function:	Video/Text/Image
Waterproof:	IP65	LED Chip Brand:	Epistar
Module Size:	960*960mm
Highlight:	full color outdoor led display , outdoor full color led screen

High Brightness Good Heat Dissipation Outdoor Advertising P10 LED Screens Full Color

High Brightness Good Heat Dissipation Outdoor Advertising LED Display P10 LED Screen Panel

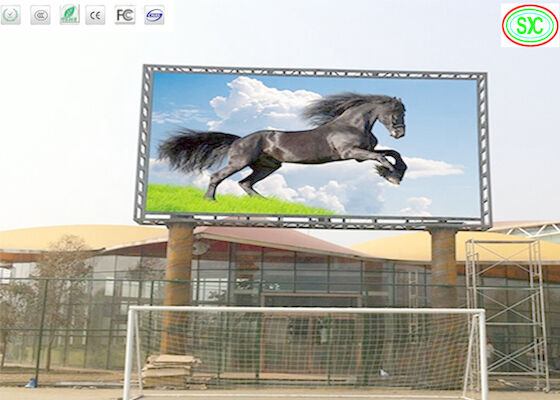

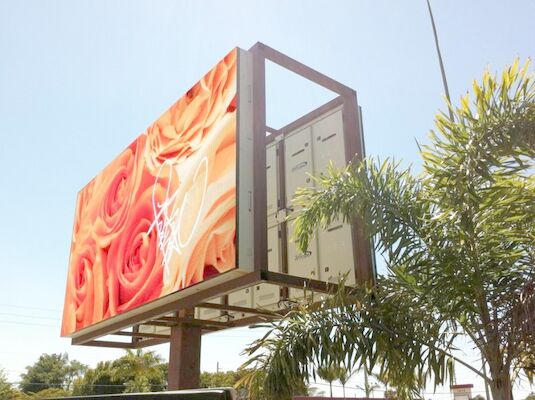

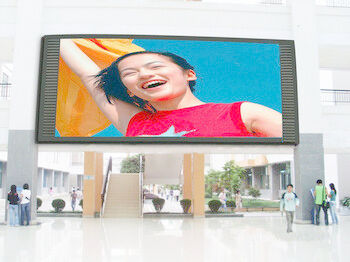

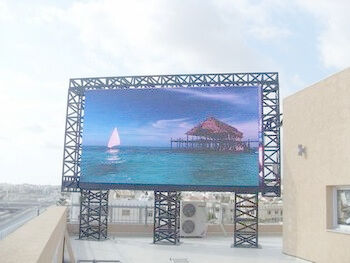

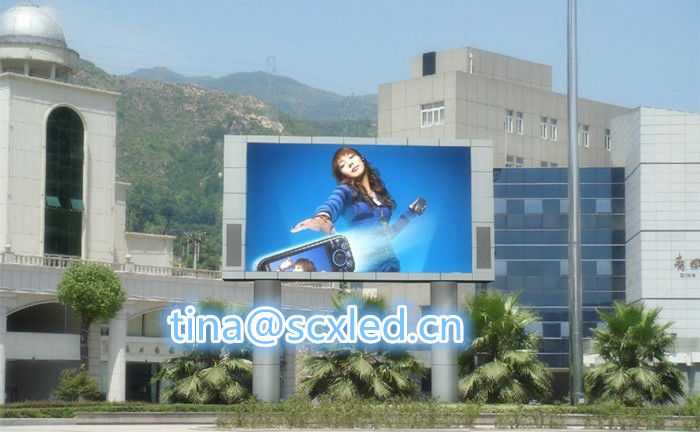

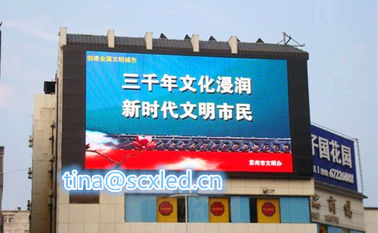

Applications

Outdoor and indoor advertising, digital billboards, advertising companies
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations and railway passenger terminals
Facades of shopping malls, department stores, banks and car dealerships
Architecture and social projects, information systems in cities
Show-business, concerts, festivals, motor shows and other public events

Technical Specifications

Specification	Details
Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000m²
Module resolution	32*16
Module size/mm	320*160
View distance	10-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>8000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120°
Vertical view angle	60°
Signal Process bit	10 or 16bit
Driving mode	Constant driving current
Scanning mode	Static driving
Frame rate	60Hz
Refresh frequency	3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	>72 hours
Mean time Between Failure	>500 hours
Life time	>100000 hours
Environment temperature range	Operating temperature range -20°C to +50°C
Maximum power/m²	<800w
Average power/m²	<300w
Self-check technology	LED spot self-check, communication check, power check, temperature monitor (need customization)
Remote monitoring	Remote supervision and control, record potential fault send out warning signs to the operators (need customization)
Software environment	Windows NT, Windows 1999, Windows XP
Input power cable	AC110v to 220v
Signal input	DVI
Warranty	2 years quality warranty, 10 years spare parts support

Packaging and Shipping

Wooden case or flight case package are available.

Shipping by sea, air or DHL, multiple shipping ways for your choice.

Our Service

Pre-sales Support

We offer technical advice to our customers before buying our products
Help customers choose suitable products within budget with most economy benefit
Design the framework structure to install our LED products with technical drawing
We offer software customization for our customer's specific usage

After-sales Service

We promise our customers 3 years warranty service!
We provide free maintenance services including remote configuration, technical consultation, and trouble shooting
We promise a lifetime follow up service for all equipment supplied by our company
We offer training to our customers including operating and maintenance of our products

Why Choose Us

Continuous Quality

With more than 10 years experience in LED display production, equipment is updated regularly. Our unique standardized and modular production ensures continuous product quality.

Competitive Price

With large scale production capacity and professional production technology, we have built effective modular production. We always promote technical innovation to reduce costs and benefit customers.

Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products. After-sales: We will track product usage and constantly perfect our products.

Our Project
