Name: P6 Outdoor LED Billboard Full Color Digital Display 6mm Pixel Pitch
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P6
Price: 10000.00 USD
Availability: InStock

Home Products LED Billboards

P6 Outdoor LED Billboard Full Color Digital Display 6mm Pixel Pitch

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	1 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram,L/C
Supply Ability:	5500 sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	6mm	Tube Chip Color:	Full Color
Led Type:	SMD2727	Display Function:	Video/Text/Image
Cabinet:	Steel Or Aluminum For Options	Cabinet Size:	960mm768mm Or 640mm640mm
Working Voltage:	DC5V	Warranty Time:	3 Years
Dot Density:	27778	Driving Mode:	1/8scaning
Highlight:	led advertising billboards , led screen billboard

Outdoor LED Signs P6 Advertising Led Billboards Full Color Digital Led Display

Product Specifications

Attribute	Value
Pixel pitch	6mm
Tube Chip Color	Full color
Led Type	SMD2727
Display Function	Video/Text/Image
Cabinet	Steel or Aluminum For Options
Cabinet size	960mm768mm or 640mm640mm
Working voltage	DC5V
Warranty Time	3 years
Dot density	27778
Driving mode	1/8scaning

Digital P6 High Brightness Outdoor Full Color LED Advertising Display Board

Our Advantages

Professional Manufacturer of LED display
OEM service, No MOQ
Easy installation, regular items in Stocks
Offering free design drawing as requested
Remote controlling and adjusting are available
Wooden case or flight case packaging options
Fast response time (within 24 hours)
Fast delivery: Usually 7-10 working days
Excellent R&D team, factory Price and quality assurance

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Outdoor Full Color Led Display Product Specification

Specification	Details
Resolution/mm	6
Pixel configuration	1R1G1B
Pixel density/pixels/m²	27778/m²
Module resolution	32*32
Module size/mm	192x192
View distance	6-400m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>4500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	(1/8)
Frame rate	60Hz
Refresh frequency	>3500Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-55℃
Maximum power:/㎡	<800W
Average power:/㎡	<300W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Key Features

Sensitive control system automatically adjusts screen brightness according to lighting conditions, saving energy and reducing operating costs
High refresh rate and high gray scale make the picture more realistic for commercial applications
Advertising contents can be changed at any time for different customers and various advertisements
Remote monitoring allows you to know the display operation status anytime, anywhere
Can be programmed to turn on/off automatically or manually, achieving unattended operation

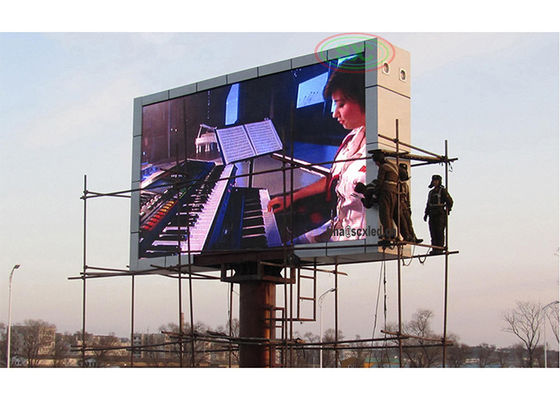

Project in Malaysia
