Name: P10 Outdoor LED Display 10mm Pixel IP65 Waterproof 600W/m2
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Home Products LED Billboards

P10 Outdoor LED Display 10mm Pixel IP65 Waterproof 600W/m2

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	5 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram,L/C,D/P
Supply Ability:	6000 sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	Led Type:	SMD 3535
Display Function:	Video/Image	Waterproof:	IP65
Cabinet:	Iron Or Aluminum	Frame Frequency:	>=60HZ
Refresh Rate:	>=180HZ	Maximum Power:	600m2
The Average Power:	200w/m2
Highlight:	led advertising billboards , led screen billboard

Outdoor High Brightness Full Color P10 Advertising LED Display Screen Panels

Product Specifications

Attribute	Value
Pixels	10mm
Led Type	SMD 3535
Display Function	Video/Image
Waterproof	IP65
Cabinet	Iron or Aluminum
Frame Frequency	>=60HZ
Refresh Rate	>=180HZ
Maximum power	600m2
The average power	200w/m2

Product Overview

Outdoor High Brightness LED Video Billboards P10 Advertising LED Display Screen Panels offer superior visibility and performance for outdoor advertising applications.

Key Advantages

Front or rear maintenance option, realizing module, power supply and receiving card front or rear maintenance, saving your maintenance cost
Adopt top high brightness with low power consumption LED lamp, energy-saving≥30%, if adopt 28 kinds of main patent technique, entire energy-saving ≥50%, environment protection
Free back service path for all kinds of installation surroundings
Broadcast level color scale, color temperature and brightness-adjustable, smooth color, high color ratio, nature pictures

Technical Parameters

Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000m2
Module resolution	32*16
Module size/mm	320*160
View distance	10-300m
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Frame rate	60Hz
Refresh frequency	3000Hz
Working hours	>72hours
Life time	>100000hours

P10 Module Features

The use of ultra-high brightness LED and high-quality plastic pieces
High-contrast hue can achieve a good display
Lightweight, easy to install, remove
Can be single-point, single lamp maintenance, low cost
Using a constant current way to drive LED, light uniformity, low power consumption
The pixel pitch is 6mm, a total of 32 * 16 pixels, each pixel consists of 1R1G1B

Product Advantages

The product structure is resistant to 100 Km / h wind and 8 earthquakes
With excellent waterproof performance, safe and reliable power system
All components of the product can be processed according to customer requirements
All materials are environmentally friendly materials
The life of the product is more than 5 years
The warranty is for 2~5 years
We can provide additional installation, permanent technical supports, and training services

Control System

Certifications

Our Mission

To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

Why Choose Us?

Packing & Shipping

Packing: wooden case, flight case for choose.

Shipping: by air, sea, train, DHL, you are the boss.

Frequently Asked Questions

How can I place an order?

Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /Whatsapp, in case of any delays.

What kind of display do we provide?

We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you to choose. The customized service also could be provided.

What about the lead time for an order?

Always: 7-17 days after receiving your payment, as your order quantity, sometimes we have stock, can delivery within 7 days.

What about the warranty?

We have 2~5 years of quality guaranteed, spare parts such as the led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.

How about the quality?

Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship, Each step has strict quality control systems to ensure led display with good quality.

Can you offer technical support? Since it's my first time....

We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to do if you are really don't know how to control (Our Engineer can text English, we can saving more time).

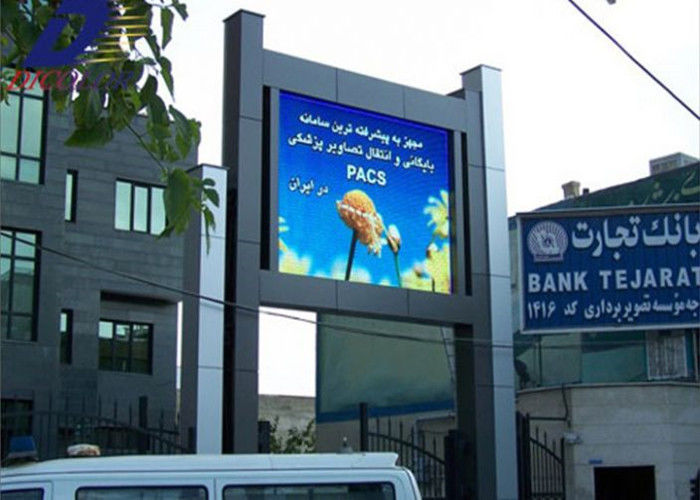

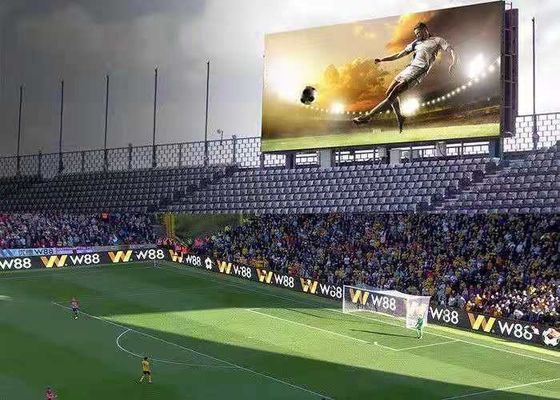

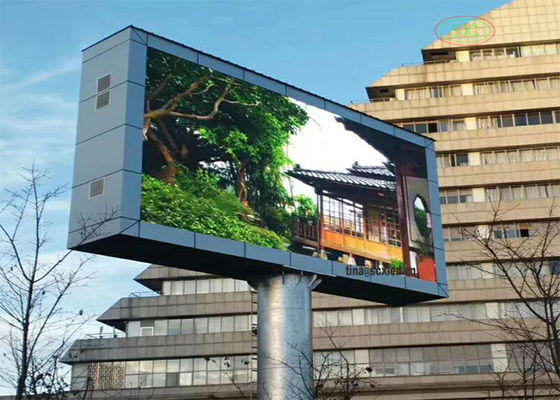

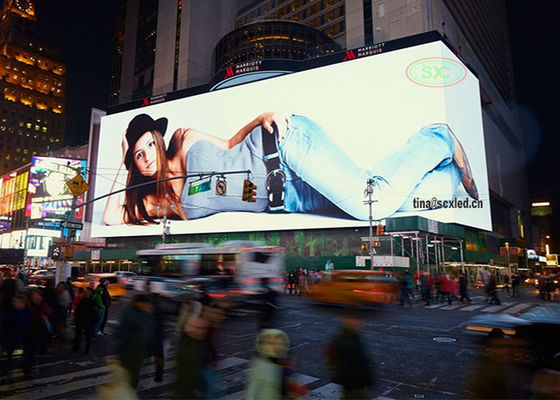

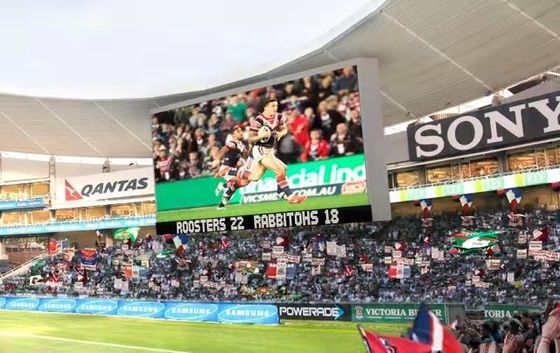

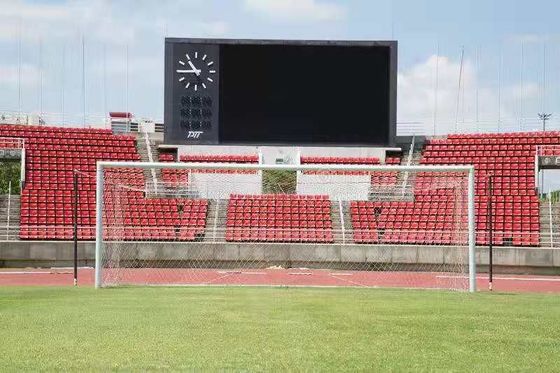

Our Case Studies
