Name: P5 Outdoor LED Billboard 5mm Pixel Pitch IP65 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P5
Price: 10000.00 USD
Availability: InStock

Home Products LED Billboards

P5 Outdoor LED Billboard 5mm Pixel Pitch IP65 Waterproof

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P5

Payment & Shipping Terms:

Minimum Order Quantity:	2 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Led Type:	SMD 2727
Display Function:	Video/Text/Image	Waterproof:	IP65
Frame Frequency:	>=60HZ	Average NO Failure:	>=1000hours
Transmiiting Distance:	Internet Cable <100m	Refresh Rate:	>=1920HZ
Maximum Power:	600m2
Highlight:	led digital billboards , led screen billboard

High Brightness Outdoor Clear Video Wall Advertising Billboard P5 P6 P10 4K

Product Specifications

Attribute	Value
Pixel Pitch	5mm
Led Type	SMD 2727
Display Function	Video/Text/Image
Waterproof	IP65
Frame Frequency	>=60HZ
Average NO Failure	>=1000hours
Transmitting distance	Internet cable <100m
Refresh Rate	>=1920HZ
Maximum power	600m²

P5 Super Slim LED Billboards / HD LED Large Screen Display For Advertising

Specification	Details
Lamp size	2727
Resolution/mm	5
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	40000/m²
Module resolution	32x32
Module size/mm	160*160
View distance	≥5m
White balance brightness	>4500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Working hours	≥72hours
Life time	100000hours
Operating temperature range	-20-45℃
Maximum power	<1100W/㎡

Key Features

Easy operation: Uses popular video playing software for simple system operations
Superior image quality: Non-linear calibration technology delivers clearer images with enhanced depth
Advanced control: Single point brightness and color adjustment capabilities
Reliable performance: Comprehensive system protection including moistureproof, dustproof, and anti-corrosion features
Remote monitoring: Optional remote supervision and control with fault warning system

Why Choose Our LED Displays

Continuous Quality: 10+ years manufacturing experience with standardized production processes
Competitive Pricing: Large-scale production capacity and cost-effective solutions
Fast Delivery: Reliable supply chain with emergency inventory options
Comprehensive Service: Dedicated pre-sales consultation and after-sales support

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Packaging & Shipping

Available in wooden case or flight case packaging. Shipping options include sea, air or express courier services.

Applications

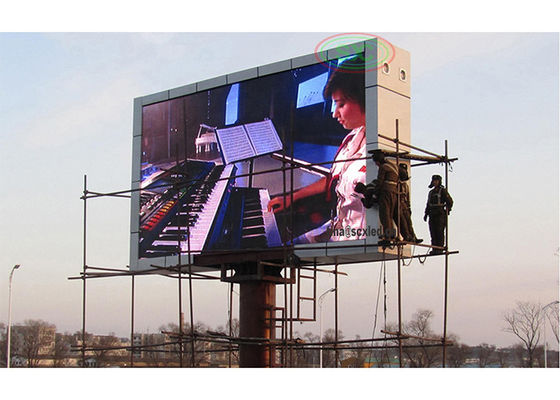

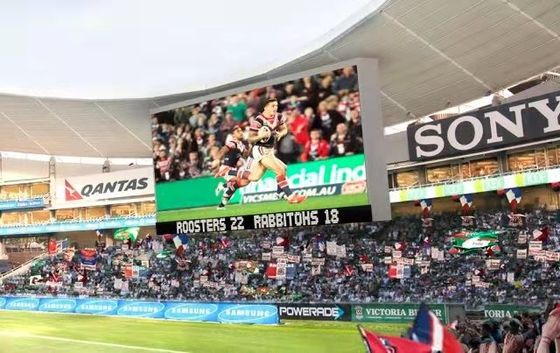

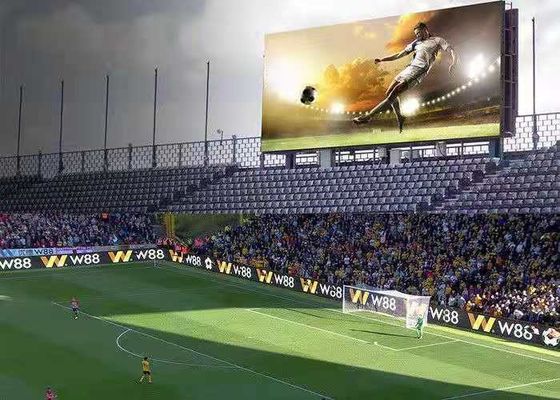

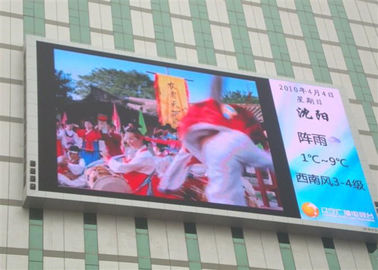

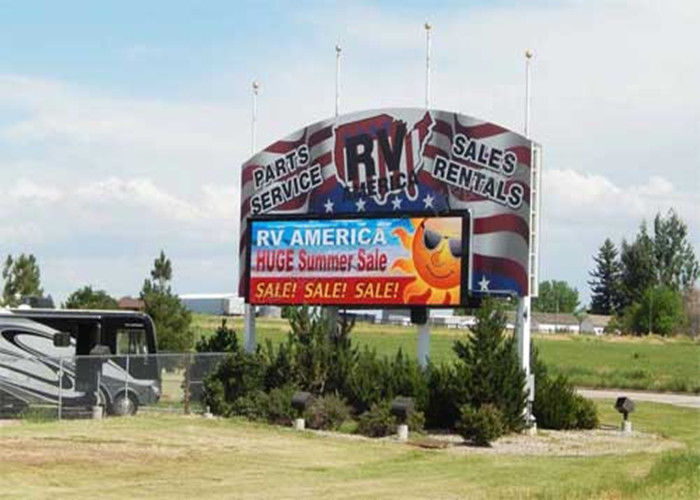

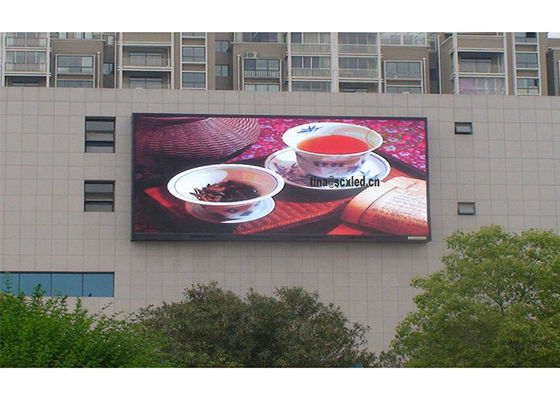

Ideal for advertising, multi-media displays, stadiums, stages, rental shows, transit directions, and various commercial applications.
