HD Flexible Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen

HD Flexible Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen

  • HD Flexible  Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen
  • HD Flexible  Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen
HD Flexible  Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen
Product Details:
Place of Origin: China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: p5
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Warranty: 5 Years Brightness: >8000cd/㎡
Working Temerature:: -20℃~80℃ Out Of Control Pixel Rate: 0.01%
Gray Scale: 16bits Per Color MTBF: 5000 Hours
High Light:

flexible led stage screens

,

flexible led display

HD Flexible Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen



Innovative Display Fabric Frame that holds graphics tight

• Lighted with efficient LED strips.
• The Silicone strip (green) gets stitched to the graphic’s perimeter and inserted into the frame

channel for a drum tight fit.
• To ensure strength and stability, the wall thicknesses of our fabric frame profiles are substantial

and exceed typical standards.
• Our unique quick connect brackets make assembly fast and easy. Graphics are easily changed

out which is perfect for retail promotions and advertising.
• Mounting options include Wall, Ceiling or Floor- Free Standing.
• Free standing and hanging fabric light box frames can be made double sided for a unique,

professional looking display. You can use the same graphic on both sides or use



♦ Technical specification



outdoor  SMD P5
Resolution/mm4
Pixel configuration 1R1G1B
Pixel density/pixels/m² 40000/m²
Module resolution 32x32
Module size/mm 160x160
View distance 4-400m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >8000cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode (1/8)
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range

Manual, automatic operation, stepless continuous adjusted

255 steps. No grey loss

Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Maximum power:/㎡ <1000W
Average power:/㎡ <350W
Self-check technology

LED spot self-check, communications check, power check,

temperature monitor(need customization)

Remote monitoring

Remote supervision and control, record potential fault,

send out warning signs to the operators.(need customization)

Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast  (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%



Product overviews
Items Indoor Led display:
P1.5 P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P7.62, P10
Outdoor Led display:
P4, P4.81, P5, P6, P8, P10, P12, P16,P20,P25,P31.25
Dance floor led display
DJ led screen
Transparent led display
Material steel,aluminum ,die casting aluminum
Certificates CE, FCC,RoHS, CCC, UL
Payment
terms
30% deposit before production, 70% balance before shipping
T/T
Western Union
Packing: Standard Export Carton with fully Polyfoam or Pearl Wool
Flight case;
Anti-shaking wooden case
Shipping: 5 to 7 working days upon receiving deposit payment
After-Sales-Service: Lifetime with professional engineer support for free.
Within 5 year, supply spare parts for free if has quality problem
( not by man-made damage)
Using Range Shopping mall,bank,bus station, train station,
center of downtown, airport, school, factory, bus, taxi,and so on.

HD Flexible  Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen 0

Star Product, Superb Quality

The P5 LED Display is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray level ensures the picture quality remains seamless.

Get Every Detail in Picture

We spend some time with every detail of the product, so that you can enjoy every detail of your marketing pictures. The pixel-perfect pictures are a treat to watch. It means, you will not miss any detail in the picture, video or text displayed on the screen

Perfect Brightness and Chromaticity Calibration

Perfect calibration between brightness and chromaticity delivers best picture quality at every place. The brightness difference is set to less than 2%, and chromaticity difference is less than 0.005. You may also adjust the brightness and chromaticity as per your choice.



♦ Production process



1) Incoming Inspection→2)SMD→3)Plug-in

→4) Wave Soldering→5)After Welding→6)Testing

→7) Semi Finished Aging→8)Module Assembly

→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing



♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Why choose us



Assured High Quality

With more than 10 years experience in led display producing,equipments are updated regularly. clients cover more than 50 cuntries. As a high-tech enterprise integrated with scientific research, design, production, maintenance, sales and system integration, we have a professional high-quality technical R & D team,rich experienced engineers and professional product development and design engineers,excellent marketing team, pre and after-sales 24 hours service.



Competitive Price

With large scale production capacity and professional production technology,our company have built

effective modular production.We always stick to promote the technical innovation and reduce cost to

benefit customers.



Fast Delivery

Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency

inventory will be used to maintain your uninterrupted supply of the products.



Perfect Service

Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to

you.

After-sales:We will track the products usage and then constantly perfect our products.

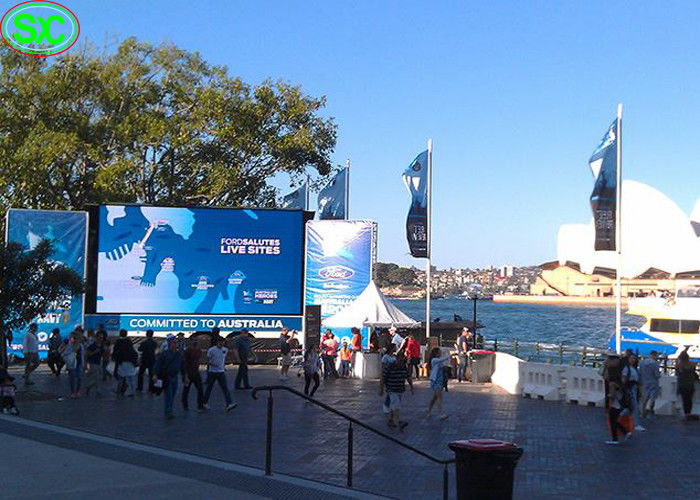

Our project

HD Flexible  Curtain LED Display P5mm , Waterproof IP65 Super Thin LED Screen 1
