Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqs/month |
| Pitch: | 3mm | Color: | Full Color,RGB 3In1 |
|---|---|---|---|
| LED Chip: | Epistar | System: | LSN |
| Module Size: | 192*192mm | Waterproof: | IP34 |
| Working Voltage: | DC5V | Certification: | CE,RoHS,FCC,CCC,SAA,TUV,UL |
| Warranty: | 3-5 Years | Application: | Dance Floor,stadium,airport,Shopping Mall Advertising |
| Highlight: | interactive dance floor,light up dance floor |
||

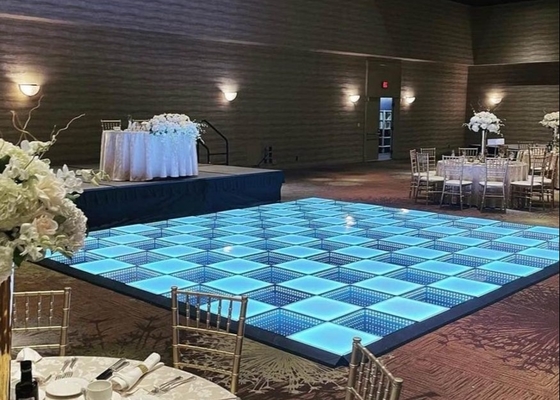

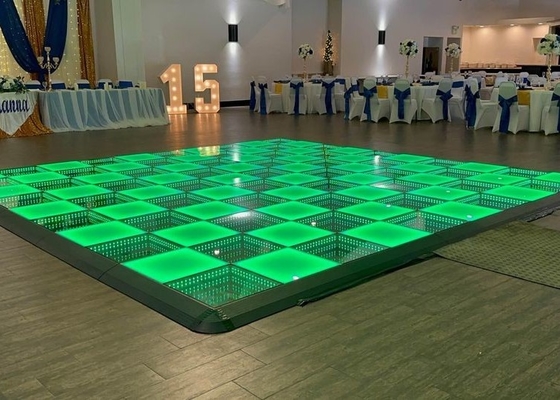

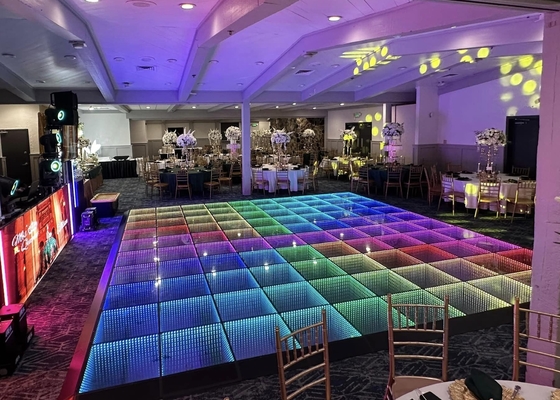

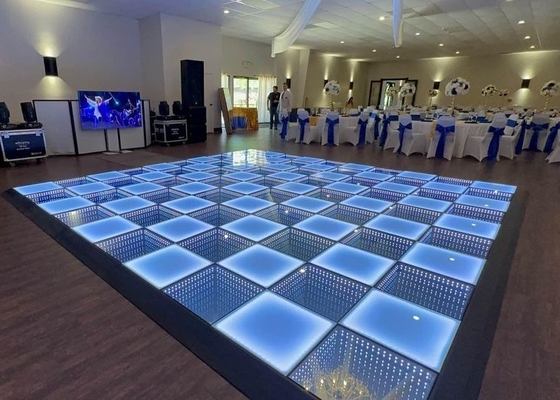

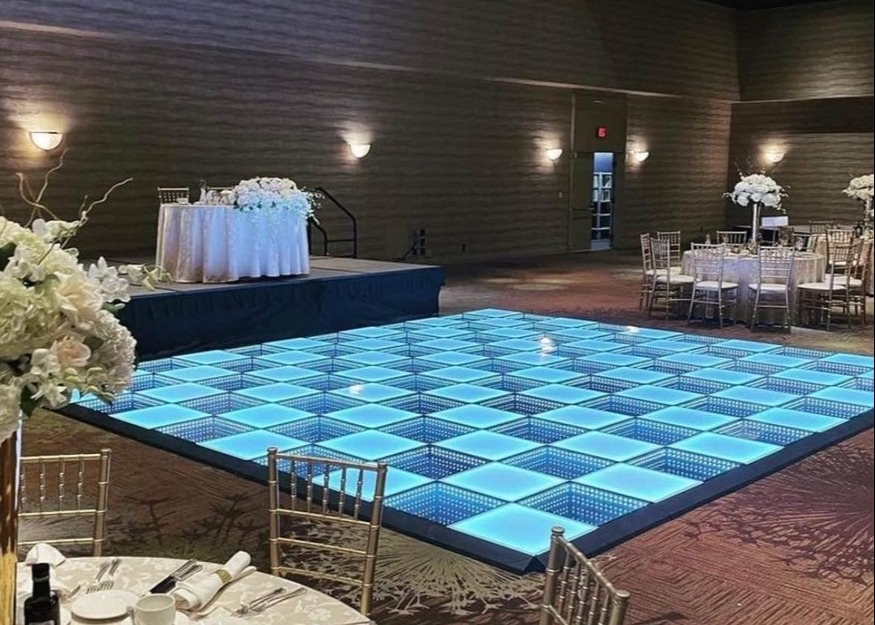

P3 LED Dance Floor Less Power Waste for Concert 160000dots/sq Brightness
1. We have our own ERP and are a major manufacturer of digital signage and LED video walls with more than 10 years of product production experience.2. We can provide OEM/ODM services for various customers. Our professional support team will be online 24 hours to serve customers. 3. We have a very strong quality control system. 4. Samples are always available to check the quality and can be sent to you very quickly. 5. Design capability: Artwork/instructions/product design according to customer requirements. 6. We have our own ERP system: Shorten delivery time at low cost through responsive production planning 7. Warranty 3-5 years.
Specifications :
| Indoor P3 LED Display | |||||
| Resolution/mm | 3 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 111111/square meter | ||||
| Module resolution | 64x64 | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1200cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
We know you have choices about where to buy your technology, and we believe we are your best choice.
Our products are designed to help you solve all your problems.
We know technology can be daunting, so we offer a variety of services to help your self-service or digitalization projects succeed in the field.
OEM Services: Shenzhen Shichuang Electronic Materials Co., Ltd. can be customized according to your design and requirements. With our strong design capabilities and rich OEM and ODM industry experience, we can easily customize your exclusive products.
Replacement and Repair: We offer a variety of response times and coverages to provide continuous troubleshooting services. We can also stock spare parts for your equipment and handle those critical parts that are critical to the success or failure of your field application.
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
2.Warranty: 2 years warranty .lifetime maintainance.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
Our project
Welcome to visit our website and inquire more details!!!
Contact Person: Lillian seori
Tel: +8619386814677
