|Place of Origin:||China|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||Packed in wooden case and flight case for outer packing|
|Delivery Time:||10 working days after received your payment|
|Payment Terms:||T/T or western Union|
|Supply Ability:||5,000/ Sq m per month|
|Product Name:||Indoor P6.25 Dance Floor Screen||Module Size(W * H):||250mm*250mm|
|Standard:||CE/ROHS/FCC/ISO2001||Tube Chip Color:||Full Color|
|Pixel Pitch:||6.25mm||Module Qty:||1pcs|
club dance floor,
light up dance floor

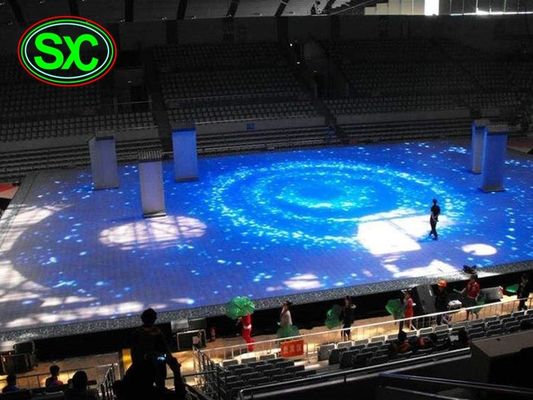

think about dancing in fire, chasing tide, fabulous video…you can easily realize such things in dancing floor of show dramas,T-stage,disco hall, night club, concerts, …
Dnace Floor LED Screen feature
High Weight Load [200kg/S (S≥160*160 mm) Al-alloy Structure, Super-wearable Surface,Sealed Structure, High Protection Level (IP65) 14Bits Processing Depth, 3-in-1 SMD Technology The best color uniformity

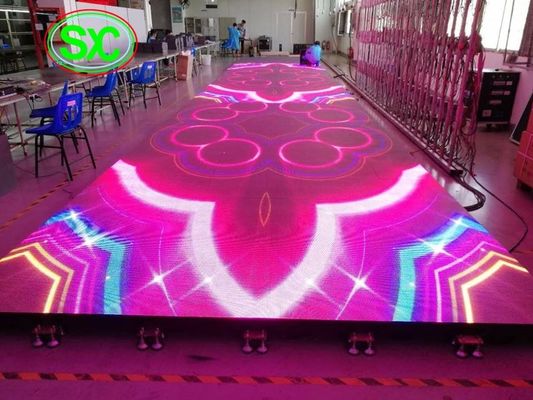

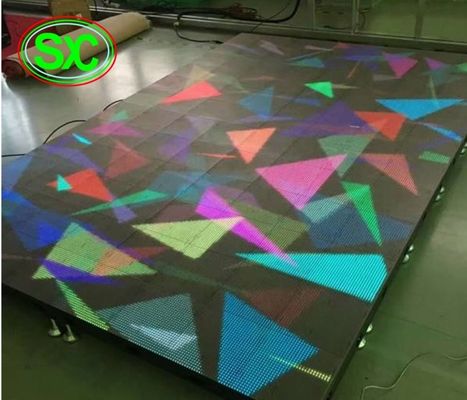

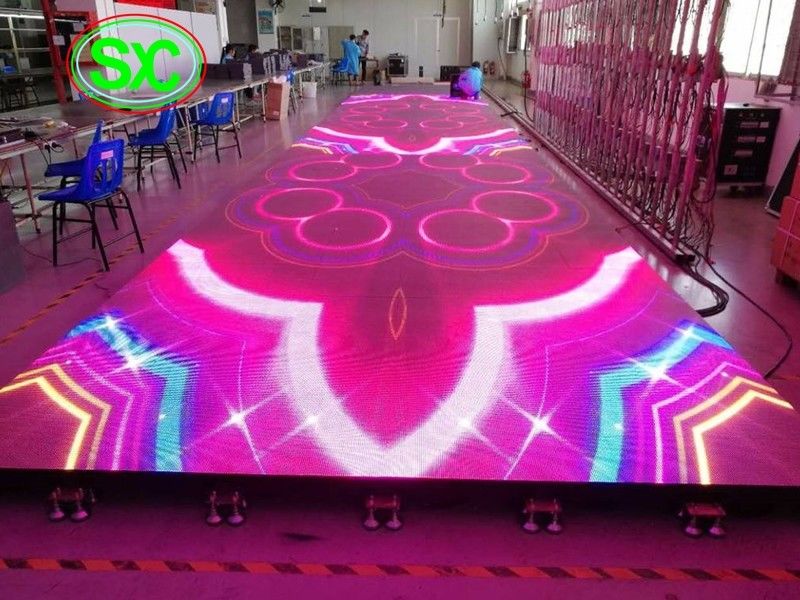

Floor LED Screen P6.25 is designed into tiling module which turns the inanimate floor into an amazing stage video displaying surface with colors, patterns, videos and interactive performances. Designed based on concept of PASSION digital stage,which is a brand-new form digitally expressing floor. It also brings the best expressing form for floor for creating scene and interacting with shows in stage.high grey grade, the screen picture will be extremely soft and vivid.
Dance Floor LED Screen adopt the color and brightness revised technology, the uniformity can reach the best level. The definition of showing picture is very high, Strong and durable aluminum alloy is used to build its structure and its facade is made of super-wearable rosin plastic, which endures hundreds of kgs stuff onto its facade moving and trampling.
The epistar Led chip. with SMD and DIP Technology .
we adopt the epistar led chip from Taiwan,DIP and SMD led display module will be available
|New style SMD p6.25 full color waterproof stage floor tile dance led screen|
|LED Lamps||Type||SMD2727(High Brightness LEDs)|
|LED Standard||Real Pixel(1R1G1B)|
|LED Module||Pixel Pitch||6.25mm|
|LED Cabinet||Cabinet Size||1000mmX500mm|
|Cabinet Resolution||160pixels *80pixels|
|Cabinets Material||steel or aluminium|
|LED Display||Pixel Density||25600pixels/sq.m|
|Power Supply||Series connection|
|Best Viewing Distance||1m~100m|
|Max Power Consumption||1000w/sq.m|
|Average Power Consumption||600 w/sq.m|
|Input Voltage||AC220V/50H or AC110V/60H|
|Grey Scale Levels||16bit|
|Display Colors||R(1024) x G(1024) x B(1024)|
|Failure percentage of leds||less than 0.0003|
|Drive Mode||1/5 scan constant current|
|Control method||Synchronization & Asynchronization|
|Control System||Control System||Mooncell|
|PC Operating system||Microsoft Windows 7, 98, 2000, XP and Vista|
The package and shippment
we can receive all kinds of transportation. and the shippment term. FOB and CIF. EXW and so on.
we can choose the best shippment which is convenient to you!
SCXK group can give you the short delivery time and With the large production ability ,
you can feel free about this . By air ,by train, by sea?
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
♦ Why choose us:
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to
After-sales:We will track the products usage and then constantly perfect our products.
♦ Frequently Asked Questions
What kind of payment terms you can accept ?
We can accept T/T and Western Union.
What about your Led Display quality ?
Checking in the whole manufacturing process&100% inspection before shipment ensure the quality of
our products continuity.
What is your delivery time ?
Within 7-35 days according to your area and quantity.
Is your LED display competitive ?
Yes,we are led display manufacturer for more than 10 years.Mass and professional production ensure
our led display’s competitiveness.
