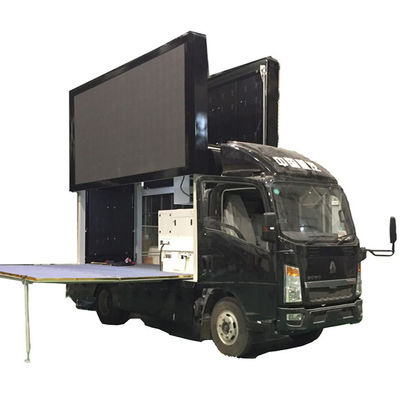

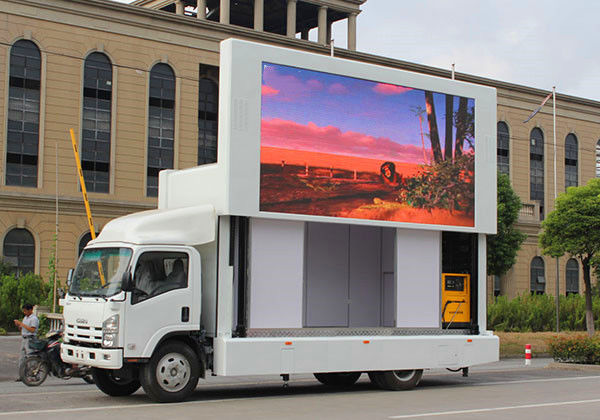

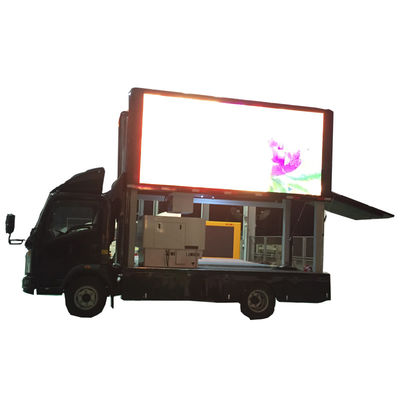

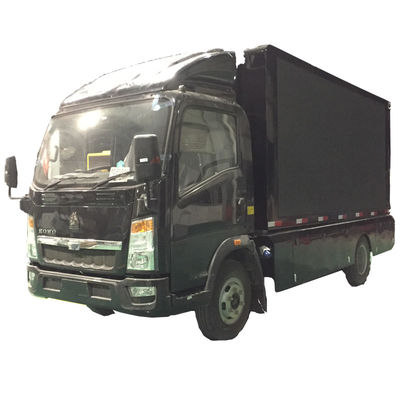

Name: P6 Outdoor Mobile LED Display Truck Screen IP65 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: SMD P6
Price: 1,629.00 USD
Availability: InStock

Home Products Mobile Truck LED Display

P6 Outdoor Mobile LED Display Truck Screen IP65 Waterproof

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	SMD P6

Payment & Shipping Terms:

Minimum Order Quantity:	5 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel:	6mm	Module Size:	192*192mm
LED Chip:	Episatr	Pixel Configuration:	3 In 1
Warranty:	5 Years	Viewing Angle(degree):	≤140°
Protection Level:	IP65
Highlight:	6mm mobile led sign trailer , IP65 trailer mounted led screen

Outdoor Full Color Mobile Advertising Truck Van Trailer P6 P8 P10 LED Display Screen

Product Specifications

Attribute	Value
Pixel	6mm
Module size	192*192mm
LED chip	Episatr
Pixel Configuration	3 in 1
Warranty	5 years
Viewing Angle(degree)	≤140°
Protection Level	IP65

IP65 Waterproof LED Video Wall Trailer Solar Energy LED Screen Trailer

High Brightness, Better Quality for mobile truck LED display

Installing at outdoor places requires displays with high brightness output. The P6 LED Screen Display features high brightness and high definition, ensuring excellent picture quality - making it perfect for stages, banks, highways, promotions, stations, stadiums, and other outdoor locations.

High Refresh Rate for truck LED display

The P6 LED Screen Display uses dynamic scanning mode technology, offering higher brightness and a refresh rate of 1920Hz for superior picture, video, and text quality.

Technical Specifications

Lamp size	3535
Resolution/mm	6
Pixel configuration	RGB 3 in 1
Pixel density/pixels/sqm	27778/sqm
Module resolution	32x32
Module size/mm	192*192MM
View distance	≥5m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>8000cd/sqm
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	constant driving static
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/sqm	<750W
Average power:/sqm	<300W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

LED Module Process

Preparation Before Installation

Installation Procedure

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping options available.

Why Choose Us

Continuous Quality

With over 10 years of LED display production experience, we regularly update our equipment. Our standardized modular production ensures consistent product quality.

Competitive Price

Our large-scale production capacity and professional technology allow us to maintain efficient modular production while reducing costs to benefit customers.

Fast Delivery

We honor our delivery commitments and use emergency inventory procedures when necessary to maintain uninterrupted supply.

Perfect Service

Pre-sales: We carefully consider your requirements and recommend suitable products. After-sales: We track product usage to continuously improve our offerings.

Our team is committed to providing full support for all your needs!
