Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | ISO9001,ROHS, CE, FC,SAA, SASO,CB,IECEE |
| Model Number: | P2.5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | Wooden Case/ Flight Case |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50,000 sqm per month |
| Pixel Pitch: | 2.5mm | Module Size: | 160*160mm |
|---|---|---|---|
| Module Resolution: | 64*64 | Driving Method: | 1/16 |
| Contrast Ratio: | ≥6000:1 | Pixel Density: | 160000 Dots/sqm |
| Color Temperature Condition: | 3500K-9500K,(can Be Adjustable) | Number Of Colors: | 16.7 Trillion |
| Input Voltage: | AC220V/50Hz Or AC110V/60Hz | Operating Life: | ≥100,000 Hours |
| High Light: | 2.5mm advertising led display,Kinglight indoor rental led display |
||
1. Led lamp 2121, encapsulation craft different from the lamp 3528 , 2727 etc
2. Light weight and portable for installation
3. Easy operation software , easy maintanance .
4. Applied in lots of different occations and places, for example, Bank, Hotel, Supermarket, Office Building , Airport, Train Station,Gas Station etc for advertising, Bill Borads and other usage .
5.Thin, light weight, easy installation
6. Low brightness with High grayscale operation
7. Wall-mounted installation, our engineers can design CAD drawings for you to help you complete the whole installation process
8. For standing installation, We can design drawings for you free of charge so that you can buy the structure locally. If you want
to buy the structure from us, we can also provide it.
Indoor Full Color Led Display Specifications
|
Unit Module |
Item: |
Parameter |
|
Model: |
PH2.5mm |
|
|
Pixel Pitch: |
2.5mm |
|
|
Pixel configuration: |
3in1 (1R1G1B) |
|
|
Module Size: |
160mm*160mm 320mm*160mm |
|
|
Module Resolution: |
64dots(W) *64dots(H) 128dots(W) *64dots(H) |
|
|
Module Thickness: |
10MM |
|
|
Module Weight: |
0.2 KG 0.4KG |
|
|
Package LED mode: |
SMD2121 |
|
|
Max Power: |
16W |
|
|
Pixel Density: |
160000 dots / SQM |
|
|
Driving Method: |
Constant Current Driving |
|
|
Scan Method: |
1/32 or 1/16 scan |
|
|
Interface Way: |
HUB 75 |
|
|
Brightness: |
≥ 1600CD /SQM |
|
|
Unit Cabinet |
Cabinet Size: |
480mm *480mm (Customize) |
|
Cabinet Composing: |
16pcs |
|
|
Power Supply Mode: |
5V/40A(3pcs/cabinet) |
|
|
Cabinet Resolution: |
256dots *256dots |
|
|
Viewing Distance: |
2.5-35M (according to the big screen size) |
|
|
Optimal Viewing Angle: |
Horizontal angle: 160 degree; Vertical angle: 120 degree |
|
|
Environment Temperature: |
Storage: -40 degree ~ +85 degree Work: -20 degree ~ +60 degree |
|
|
Relative Humidity: |
10% ~ 95% |
|
|
Power |
Operating Voltage: |
AC:100V~120V AC:220~240V |
|
Average Power: |
≤170W/ SQM |
|
|
Max Power Consumption: |
≤ 350W/SQM |
|
|
Control System |
Computer: |
Pentium4 or I3 or above |
|
Operate System: |
Win98/2000/XP/Win 7/Win10 |
|
|
Control Mode: |
Synchronization with PC |
|
|
Main Technical Parameter |
Driving Device: |
IC Constant Current Driving |
|
Refresh Rate: |
≥ 2800Hz |
|
|
Gray/Color: |
RGB each 256 grade, can display 16.7color |
|
|
MTPF: |
≥ 9000hours |
|
|
Power Switch: |
Automatic Switch |
|
|
Display Mode: |
1920*10801024*7681280*960 |

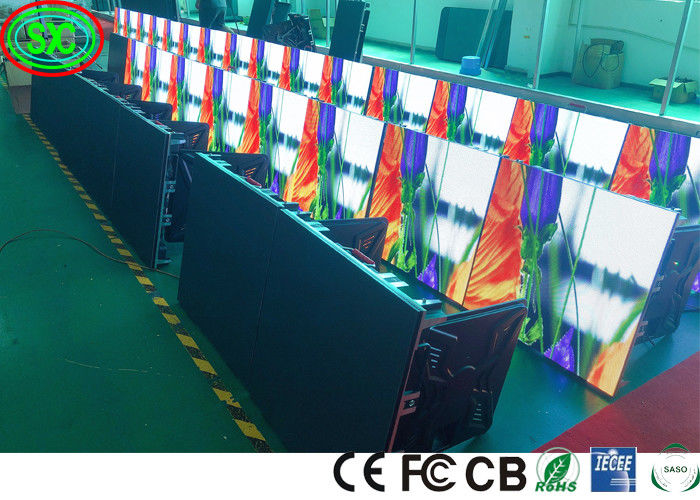

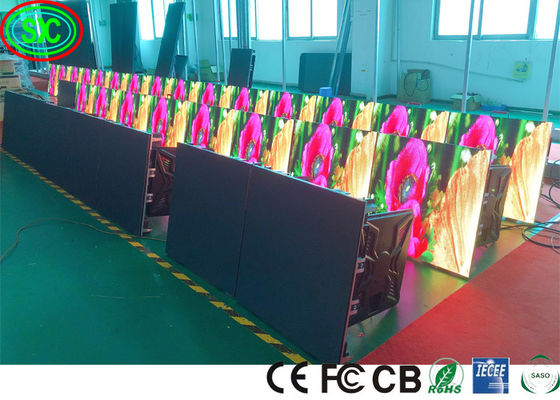

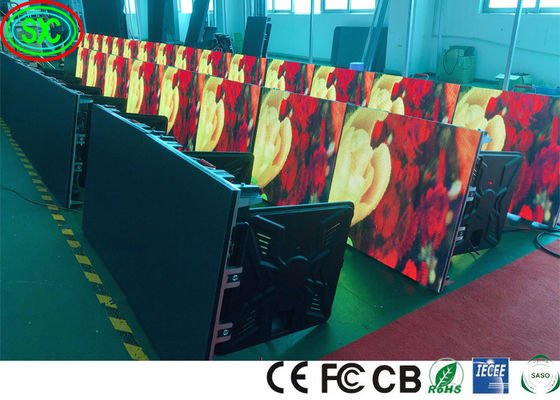

Indoor Full Color Led Display Detailed Pictures
Indoor Full Color Led Display Production Process
1. Standard processing technology to ensure that each row and each column tube at the same level, ensure the stability of the clear picture.
2. High quality LED chips, anti static, high wavelength stability
3. We seriously practice 24 hours led module testing time and 72 hours led display aging time .Before shipping and within the warranty time ,our team will track the goods situation to satisfy all your request .
4. Advanced packaging equipment, guarantee the quality and life expectancy
Company information
Shenzhen ShiChuangXinKe Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates , What's more, we have FCC, SAA, BIS, SASO etc to meet different countries customer's need
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea: 15-20 days; by air: 3-7 days ;by express:3-6days
