Name: P4 Indoor LED Video Wall Panel 4mm Pixel Pitch IP34 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4
Price: 10000.00 USD
Availability: InStock

Home Products Fine Pitch Led Display

P4 Indoor LED Video Wall Panel 4mm Pixel Pitch IP34 Waterproof

Product Details:

Place of Origin:	ShenZhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P4

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-15 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	4mm	Led Type:	SMD 2121
Display Function:	Video	Waterproof:	Ip34
Cabinet:	Iron/die Casting	MBI:	51024
Viewing Angle:	H:100 V:50	Optimal Viewing Distance:	>=4m
Voltage:	DC5V
Highlight:	P4 LED Video Wall Panel , Stage Background LED Video Wall

Indoor Full Color Stage Background P4 LED Video Wall Panel Display Screen

Product Specifications

Attribute	Value
Pixels	4mm
Led Type	SMD 2121
Display Function	Video
Waterproof	IP34
Cabinet	Iron/Die Casting
MBI	51024
Viewing Angle	H:100° V:50°
Optimal Viewing Distance	≥4m
Voltage	DC5V

P4 Indoor Full Color HD Energy Saving Advertising LED Video Wall Display Screens

High-performance LED display solution for professional indoor applications with excellent color reproduction and energy efficiency.

Applications

Outdoor and indoor advertising, digital billboards
Sports halls, fields, playgrounds, schools, churches
Airports, bus stations and railway passenger terminals
Facades of shopping malls, department stores, banks and car dealerships
Architecture and social projects, information systems in cities
Show-business, concerts, festivals, motor shows and other public events

Our Services

Reply to your inquiry within 24 working hours
Free training for engineers on operation, maintenance and repair
Customized design available (OEM & ODM welcome)
Unique solutions provided by professional engineers
Special discounts and sales area protection for distributors
24-month warranty with options for extended coverage

LED Screen Technical Parameters

Technical Data	PH4
Pixel Pitch	4mm
Physical Density (pixels/m²)	62,500
LED Shape & Size	SMD 3 in 1
LED Arrangement	1R1G1B
Module Size (mm)	320 × 160
Module Resolution	80*40
Drive Mode	Dynamic 1/8 Duty Constant Current
Brightness	≥1000cd/m²
Contrast (cd/m²)	≥2000:1
View Angle (50% Brightness)	140°/140°
Minimum View Distance	4m
Grey Scale	10bits/1024levels
Color Capacity	1.07 billion
Maximum Power Consumption	860W/m²
Average Power Consumption	280W/m²
Operation Power Source	AC90-260V 50-60HZ
Frame Frequency	60-85HZ
Refresh Rate	240-1000HZ
Brightness Adjustment	0-100% 8 levels automatic
Gamma Correction	-5.0-5.0
Correction Scale Level	16bits
Color Temperature	5000-9300K
Brightness Correction	Pixels, Module, Cabinet Correction
Input Source Support	Composite, S-Video, Component, VGA, DVI, HDMI, SDI, HD_SDI
Control Distance	UTP CAT5E:100m; Multi-mode Fiber:50m; Single-mode Fiber:10km
Operating Temperature	-40°C - 65°C
Operating Humidity	10-90%RH
Operating Life Span	100,000 Hours
MTBF	5000 Hours
Protection Ratings	IP43
Out of Control Rate	0.01%

Energy Saving & Environmental Protection

Features top high-brightness with low power consumption LED lamps, achieving energy savings ≥30%. With 28 patented techniques, overall energy savings reach ≥50%. Pioneering outdoor mature HD LED Display technology with advanced specifications 2 years ahead of competitors.

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing

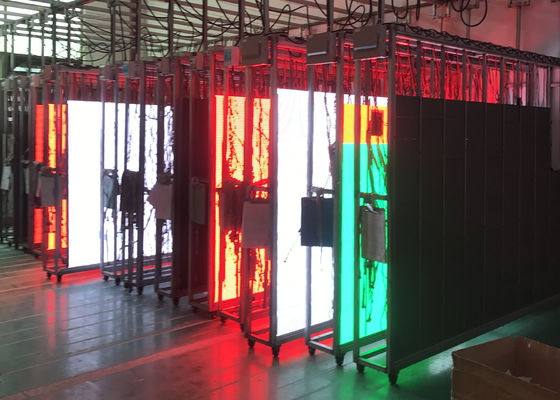

Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Certifications

Training & Installation Services

Free Training: 3 days on-site technical training in our Shenzhen factory or remote training via TeamViewer/Skype. Includes comprehensive user manual for successful debugging and installation.

Installation Service: On-site installation instruction service includes:

Bracket and frame technical verification
LED module installation guidance
Panel testing and adjustment
Technician training

Note: Foreign installation services available at $100/day plus technician's living and travel expenses.

Trade Terms

Hardware: LED display and video controlling system
Technical material: English version user, installation and maintenance manuals
Service: 7 years free technology support by phone and email
Delivery: Approximately 3-12 working days
Packing: Anti-shaking wooden package or Air Flight Case
Transportation: By sea, air or Express

We look forward to building a successful partnership and working together on your next project.
