Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | ShenZhen in China |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL/CB |
| Model Number: | P4 |
| Minimum Order Quantity: | 2 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T, Western Union, Western Union |
| Supply Ability: | 4000 sqm per month |
| Pixels: | 4mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Cabinet: | Iron Or Aluminum For Options | Average NO Failure: | >=1000hours |
| Refresh Rate: | >=180HZ | Optimal Viewing Distance: | >=4m |
| LED Span Lifetime: | 10000 H | Gray Level: | 4096~16384 |
| Highlight: | Smd Advertising LED screen,Outdoor Flexible Advertising LED screen,Full Color Advertising LED screen |
||

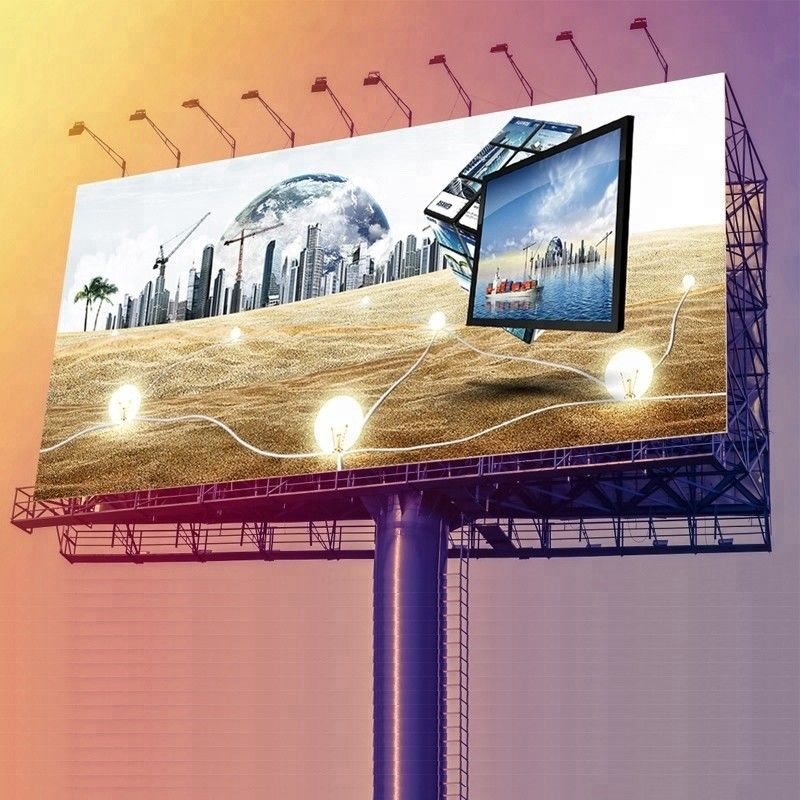

High Waterproof Level P4 Outdoor Advertising LED Billboards 3 Years Warranty
Type: SMD1919
Driver scan: 1/8 scan
Lamp Brand: Epistar
Arrangement: 1R1G1B
Module Size: 256x128mm
Module Resolution: 64×32=2048 (Dots)
Material: Iron
Dimension: 1024*1024*140mm
Weight: 40 KGS
Module Quanty /Cabinet: 4*8=32 pcs
Standard Power supply: G-energy N200V5(220V)/ A-200AF-5(110V). It can be customized as your requirement.
Use of environment: outdoor IP65
Cabinet color: Black, Grey
Technical Parameters
| Item | Module Parameters |
| Pixel type | Real full color |
| Pixel color | RGB |
| Module size | 256*128mm |
| Pixel led | SMD3528 |
| Pixels pitch | 4mm |
| Resolution rate | 64*32 |
| Driving way | 1/8 |
| Driving IC | MBI5024 |
| Working voltage | DC5V |
| Power | 80W |
| Working temperature | -30°C - +50°C |
| Item | Screen Parameters |
| Material | Aluminum/iron/aluminum die-casting |
| Color | Black |
| Size | 1024*768mm/512*512mm |
| Resolution rate | 96*96 |
| Module quantity | 3*3 |
| Density | 62500dots/m2 |
| White balance luminance | 7000-11000cd/m2 |
| Color temperature | 6500 |
| Horizontal view angel | 110 |
| Vertical view angel | 50 |
| Protection grade | Before/after: IP67/IP65 |
| Non-Flatness | <1mm |
| Module interval | <1mm |
| Weight | 32kg or 6kg |
| Maximal power/m2 | 750W |
| Frame frequency | ≥60Hz/s |
| Refresh frequency | 800-3840Hz |
| Gray grade | 1024*1024*1024Grade/1073741824 |
| Luminance adjusted | 256 grade by auto-optic/color &8 grade by hand |
| Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| MTBF | >5000h |
| Life-span | >100000h |
| Speckles rate | <0.0001 |
Control system
♦ Production process
1) Incoming Inspection→2)DIP→3)Plug-in
→4) Wave Soldering→5)After Welding→6)Testing
→7) Semi Finished Aging→8)Module Assembly
→9) Gluing→10)Finished Aging→11)Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
♦ Why choose us
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
