Name: P5 Full Color LED Video Wall 5mm Pixel Pitch 1500cd/m2 Brightness
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P5
Price: 10000.00 USD
Availability: InStock

Home Products RGB LED Display

P5 Full Color LED Video Wall 5mm Pixel Pitch 1500cd/m2 Brightness

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P5

Payment & Shipping Terms:

Minimum Order Quantity:	2 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Tube Chip Color:	Full Color
Voltage:	DC5V	Refresh Rate:	>=1920HZ
Maximum Power:	600m2	Module Size:	320mmx160mm
Brightness:	1500cd/m2	Pixel Density:	40000dots/㎡
IC:	MBI 5024 IC	Chip Brand:	Epistar Led
Highlight:	P5 LED Video Wall Screen , Full Color LED Video Wall Screen , Indoor Stadium Advertising LED Billboard

Full Color P4 P5 LED Video Wall Screen Advertising LED Billboard For Indoor Stadium Supermarket

Product Description

Indoor Stadium Supermarket Full Color P4 P5 Fixed Installation Big LED Video Wall Screen LED Billboard

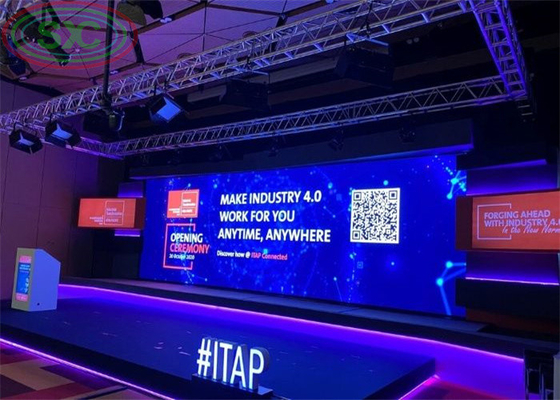

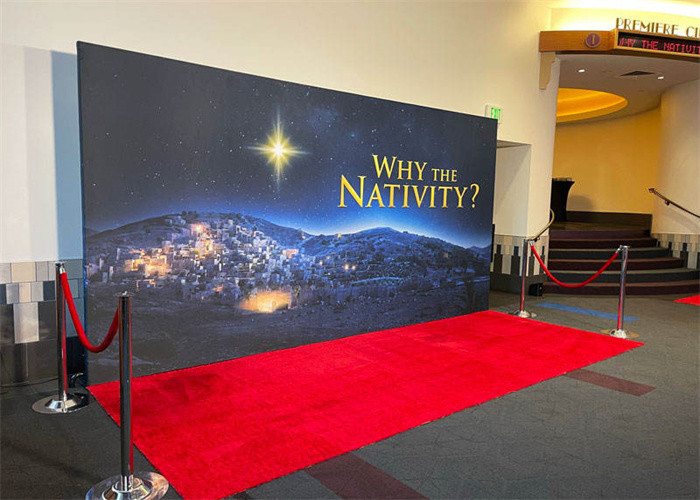

Application Areas

P5 LED display is widely used in various indoor locations including stadiums, business applications, banking, shopping malls, transportation hubs, educational institutions, restaurants, hotels, and entertainment venues.

Product Specification

Indoor SMD P5
Lamp size	2727
Resolution/mm	5
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	40000/m²
Module resolution	64x32
Module size/mm	320*160mm
View distance	≥0.5m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>2500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/16
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<1000W
Average power:/㎡	<280W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Product Overviews

Items	Details
Indoor Led display	P1.5, P2, P2.5, P3, P3.91, P4,P4.81, P5, P6, P10
Outdoor Led display	P4, P4.81, P5, P6, P8, P10, P12, P16, P20, P25
Material	steel, aluminum, die casting aluminum
Payment terms	30% deposit before production, 70% balance before shipping T/T Western Union
Packing	Standard Export Carton with fully Polyfoam or Pearl Wool Flight case Anti-shaking wooden case
Shipping	5 to 7 working days upon receiving deposit payment
After-Sales-Service	Lifetime with professional engineer support for free. Within 5 year, supply spare parts for free if has quality problem (not by man-made damage)
Using Range	Shopping mall, bank, bus station, train station, center of downtown, airport, school, factory, bus, taxi, and so on.

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Our Advantages

Professional Manufacturer of LED display
OEM service, No MOQ
Easy installation, regular items in Stocks
Offering free design drawing as requested
Remote controlling and adjusting are available
Wooden case or flight case packaging options
24-hour response time for inquiries
Fast delivery: Usually 6-8 working days
Excellent R&D team, factory Price and quality assurance

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Methods for Quality Assurance

a. Aging

100% fully test
Condition: 72 hours with 256 grey level

b. Vibration Testing

Condition: 3-5 mins up and down in 5mm range

Our Workshop

Why Choose Us

Continues Quality

With more than 12 years experience in LED display production, our equipment is regularly updated. Our unique standardized and modular production ensures consistent product quality.

Competitive Price

Our large-scale production capacity and professional technology allow us to maintain effective modular production. We continuously innovate to reduce costs and benefit our customers.

Fast Delivery

We honor our delivery commitments and implement special procedures when needed to maintain uninterrupted supply of products.

Perfect Service

Pre-sales: We carefully consider your requirements and recommend suitable products.
After-sales: We track product usage to continuously improve our offerings.
