Name: Indoor Full Color LED Display 4mm Pixel Pitch SMD2121
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4
Price: 10000.00 USD
Availability: InStock

Home Products Indoor Full Color LED Display

Indoor Full Color LED Display 4mm Pixel Pitch SMD2121

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P4

Payment & Shipping Terms:

Minimum Order Quantity:	3 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	4mm	Tube Chip Color:	Full Color
Led Type:	SMD2121	Display Function:	Video/Text/Image
Cabinet Material:	Die- Catsing Aluminum / Iron	Working Voltage:	DC5V
Warranty Time:	3~5 Years	Pixel Density:	62500 Dots/sqm
Driving Mode:	1/16 Scaning
Highlight:	High Resolution Indoor LED Display , Full Color Indoor LED Display , Pixel pitch Indoor LED Display

High Resolution Indoor Full Color LED Display HD 4mm Pixel Pitch Stage Wall

Product Specifications

Attribute	Value
Pixel pitch	4mm
Tube Chip Color	Full color
Led Type	SMD2121
Display Function	Video/Text/Image
Cabinet material	Die-casting Aluminum / Iron
Working voltage	DC5V
Warranty Time	3~5 years
Pixel density	62500 dots/sqm
Driving mode	1/16 scanning

Technical Specifications

Resolution/mm	4
Pixel configuration	1R1G1B
Pixel density/pixels/m²	62500/m²
Module resolution	80x40
Module size/mm	320x160MM
View distance	≥4m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>1000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	1/20 SCANNING
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)
Software environment	WindowsNT,Windows1999,WindowsXP
Luminous point width between centres	Deviation<3%
Brightness uniformity	<10%
Color uniformity(chromaticity coordinate)	±0.003
Power supply request	AC85-264V(50Hz-60Hz)
Contrast	(1000:1)
System protection	Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working)	working:10-95%
Humidity(storing)	storing:10-95%

Key Features

High Brightness: Viewers can see images clearly at long distances in sharp sunlight due to high brightness LED lamps.
Long Lifetime: High quality LED lamps and patent PCB design ensure extended product lifespan.
Stable Performance: Anti-electromagnetic wave treatment and modular design ensure reliable operation.
Exquisite Images: Nonlinearity correction technology delivers clear, vivid video with high fidelity.
Excellent Flatness: Precision module frame design maintains flatness within 0.1mm deviation.
High Contrast: Consistent deep black and patent masks enhance color freshness and contrast.
Easy Installation: Modular design simplifies setup and maintenance.
Premium Materials: Uses imported LED chips from Taiwan, USA or Japan with high quality components.
Multiple Formats: Supports TXT, graphics, pictures, animations and video programs.
Lacquer Coating: Protects PCB from environmental erosion with excellent insulation and moisture resistance.
High Shockproof: Cabinets undergo shockproof testing to prevent connection issues.
Waterproof Performance: Fully waterproof front and back for all-weather outdoor operation.

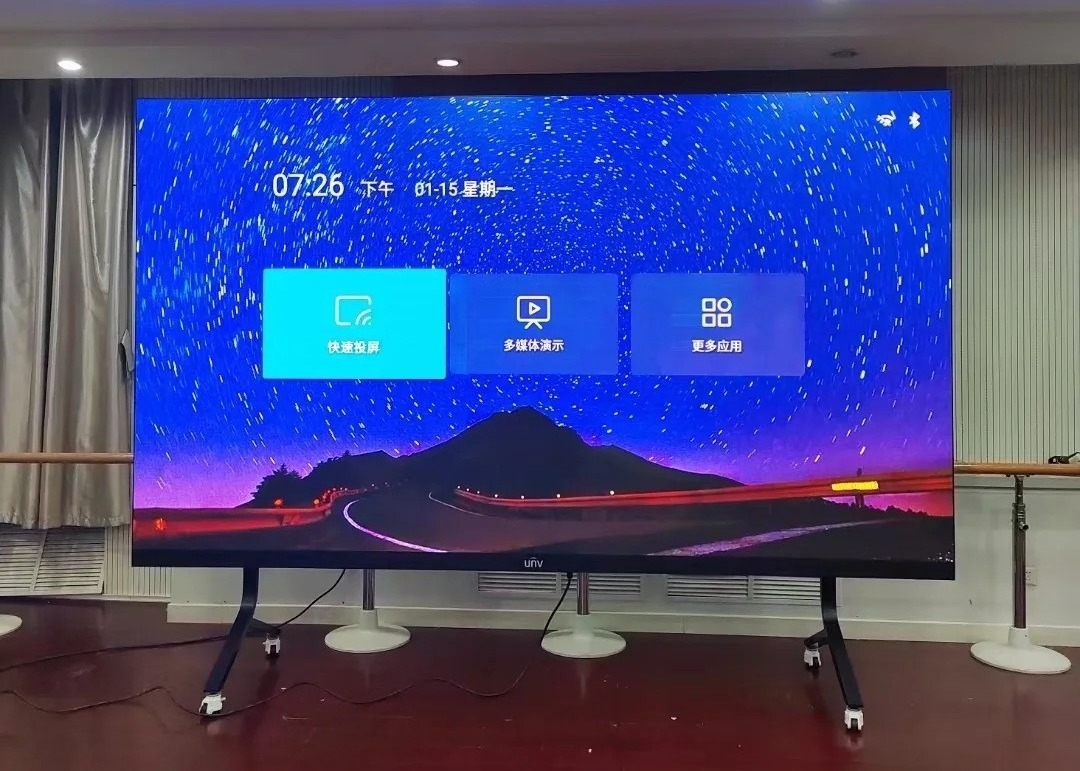

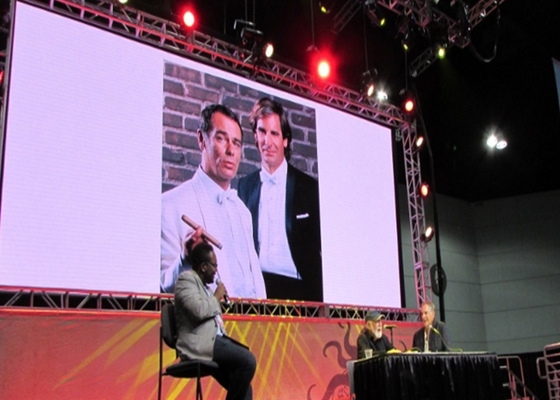

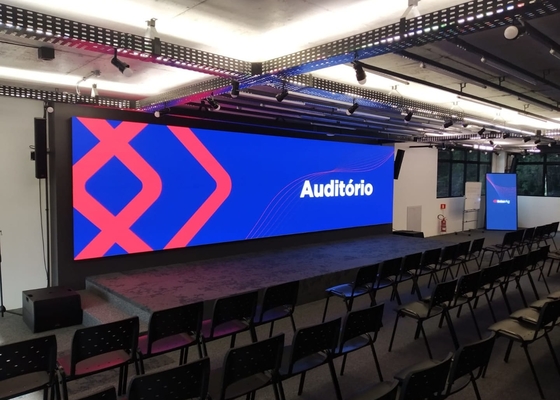

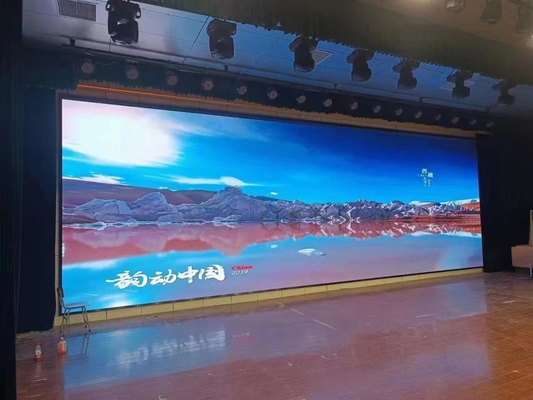

Product Images
