Name: P1.875 Indoor LED Display 284440 Dots/Sqm 480x480mm Cabinet
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P1.875
Price: 10000.00 USD
Availability: InStock

Home Products Indoor Full Color LED Display

P1.875 Indoor LED Display 284440 Dots/Sqm 480x480mm Cabinet

Product Details:

Place of Origin:	ShenZhen ,China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P1.875

Payment & Shipping Terms:

Minimum Order Quantity:	5sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your down payment
Payment Terms:	T/T,Western Union
Supply Ability:	4500 sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	1.875	Module Size:	240x120mm
Scan Mode:	30S	Pixel Density:	284440dots / Sqm
Cabinet Size:	480x480mm
Highlight:	giant LED display , P1.875 giant LED display

P1.875 Indoor Giant LED Display 284440 Dots/Sqm Advertising with Cabinet Size 480x480mm

Key Specifications

Pixel Pitch	1.875
Module Size	240x120mm
Scan Mode	30S
Pixel Density	284440dots/sqm
Cabinet Size	480x480mm

Indoor Fixed Installation Giant LED Display Screen P1.875 SMD2121 1R1G1B Advertising LED Video Wall

Applications

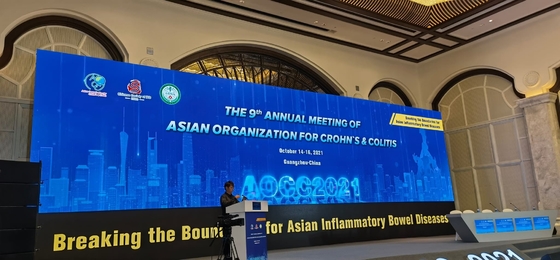

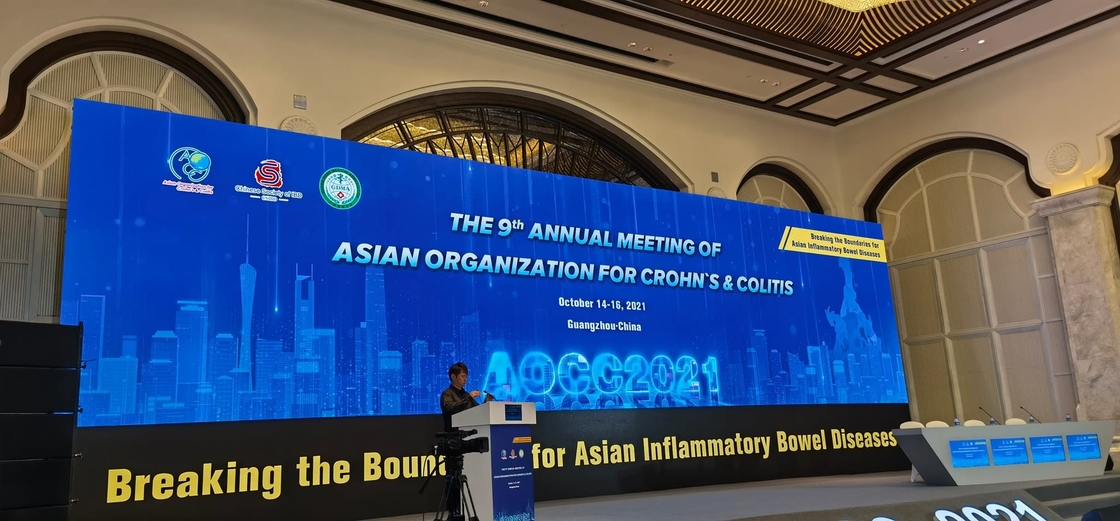

News conference, shopping plaza, exhibition, theater, fitness room, and more.

Product Features

Convenient Usage: Compatible with camera, video, laptop, and TV signals
High Quality: SMD2121 or SMD1515 LED Chip with wide viewing angle, perfect for events and exhibitions
Super Light and Slim: Lightweight cabinet for easy installation and delivery
High Refresh Rate: Over 38400Hz for clear pictures without flicker or distortion
Less Noise Design: Fan-free operation with aluminum materials for improved heat emission

Technical Specifications

Pixel Pitch	1.875
Brightness	800cd/sqm
Pixel Density	284440
Viewing Angle	H: 160° V:140°
Lifetime	100000 Hours
Average Consumption	180w/m2
Operation Power Voltage	110V50HZ/220V60HZ
Refresh Rate	1920Hz
Operating Temperature	-10° to +55°
Working Voltage	DC5V
Driver Mode	32s
Protection Level	IP34

Additional Specifications

Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>2500cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/13
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<1100W
Average power:/㎡	<280W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)

Trade Terms

Payment: T/T, usually 40% prepayment before production, 60% balance before delivery (varies by quantity)
Production lead time: Less than 20 sqm: 8-15 days; More than 50 sqm: 30 days
Samples can be delivered within 3 days
Shipping port: Shenzhen, Mainland China
Discounts available based on order quantities
MOQ: 1 sqm/1pcs

Packaging & Shipping
