P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2

P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2

Product Details:
Place of Origin: ShenZhen China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Model: SMD P2.5 Physical Pitch: 2.5 Mm
Pixel Configuration: 1R1G1B Pixel Density: 160000Pixel /m2
LED Type: SMD1515 Driving Method: 32S
Module Resolution: 64X64 Led Chip: Epistar
Highlight:

P2.5 indoor LED poster screen

,

SMD1515 LED display

,

160000Pixel/m2 LED poster

Indoor Full Color P2.5 High Brightness 2500cd/㎡ Floor Standing LED Poster Screens
Product Specifications
Attribute Value
Model SMD P2.5
Physical Pitch 2.5 mm
Pixel Configuration 1R1G1B
Pixel Density 160000Pixel /m²
LED Type SMD1515
Driving Method 32S
Module Resolution 64×64
LED Chip Epistar

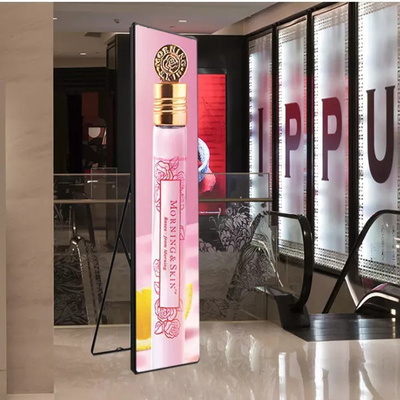

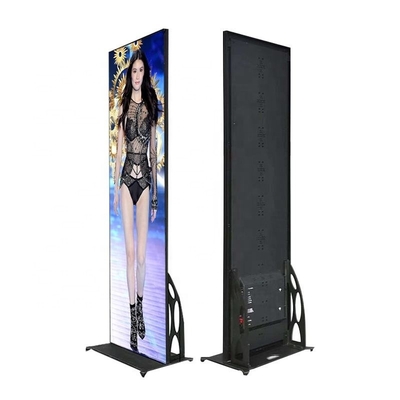

P2.5 Indoor Floor Standing LED Poster Screen

This best-selling digital LED mirror panel is the perfect indoor advertising solution for hotels, banks, stores, airports, stations, theaters, and other indoor venues.

Technical Parameters
Lamp size 2121
Resolution 2.5 mm
Pixel configuration RGB 3 in 1
Pixel density 160000/m²
Module resolution 64×64
Module size 320×160 mm
View distance ≥2.5m
White balance brightness >1500cd/㎡
Color temperature 6500K-9500K
Viewing angle 140° (horizontal and vertical)
Refresh frequency >4200Hz
Working temperature -20°C to 45°C
Power consumption Average: <280W/m², Max: <1000W/m²
Lifespan 100,000 hours
Key Features
  • Integrated Design: Professional-grade aviation plug connectors ensure quality and safety. Integrated circuit design guarantees stability and reliability.
  • P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 0
  • Lightweight Construction: Thinner and lighter than traditional advertising players for easy transportation and installation.
  • P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 1
  • Easy Maintenance: Magnetic absorption module allows for front-side maintenance with reasonable structure design.
  • Energy Efficient: Low power consumption LED modules reduce running costs and extend lifespan.
  • Superior Display Quality: 140° wide viewing angle with 16-bit color depth processing for vivid, accurate color reproduction.
  • P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 2
  • Rigorous Testing: All products undergo 72-hour aging tests to ensure no dead lamps, dim lamps, color differences, or mosaic issues.
  • P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 3
  • Remote Management: Network control platform enables remote monitoring and management with custom broadcast software.
  • P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 4

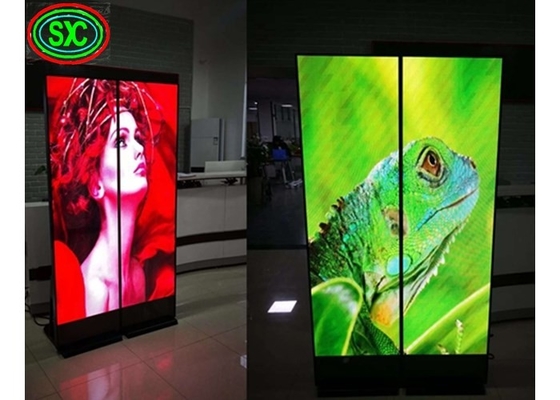

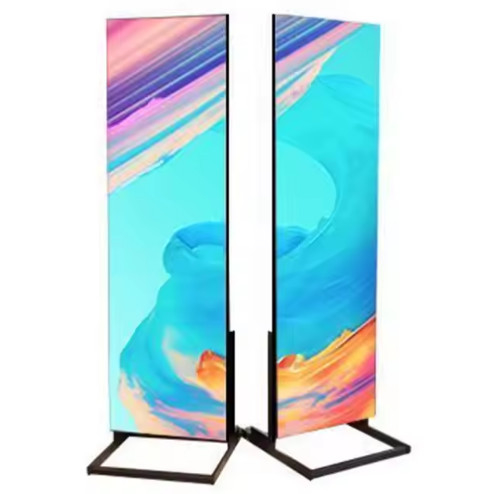

Product Gallery
P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 5 P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 6 P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 7 P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 8
Our Service
  • Warranty: 3-year full component warranty with free replacement/repair. Lifetime maintenance with material cost only.
  • Technology Training: Free operation and maintenance training in factory. Optional on-site engineer dispatch.
  • Maintenance Support: Lifetime maintenance and free consultation via email, Skype, WhatsApp, etc.
  • Certification: CE, LVD, RoHS certifications available with operation manuals and test reports.
  • Installation Support: Free CAD drawings and expert suggestions. Optional on-site engineer dispatch.
Packing & Shipping

Packing options: wooden case or flight case

Shipping methods: air, sea, train, or DHL

P2.5 Indoor LED Poster Screen SMD1515 160000Pixel/m2 9
Frequently Asked Questions
Q1: What's your payment term? How long does delivery take?

A: We accept T/T and L/C. Average production time is 16 days after receiving deposit.

Q2: Can I order samples?

A: Yes, we welcome sample orders for quality testing.

Q3: What about your pre-sale and post-sale service?

A: Our professional sales and technical teams provide complete project solutions. Post-sale includes usage instructions, module replacement, and optional on-site technical support.

Q4: What control systems do you use?

A: Linsn, Nova, and Carlette control systems.

Q5: What's the warranty period?

A: 2-year warranty for LED display with 100,000 hours LED lifespan.

Q6: How to place an order?

A: 1) Share your requirements 2) Receive our quotation 3) Confirm order and pay deposit 4) We arrange production.
