Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | shenzhen |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | SCX-T10 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | T/T or western Union |
| Supply Ability: | 5000sqm per month |
| Brightness:: | ≥2000cd/sq M | Module Size(W * H):: | 256*256mm |
|---|---|---|---|
| Pixel Pitch: | 16mm | Resolution(W*H): | 16*16 |
| Refreshing Rate:: | ≥400Hz/s | Relative Humidity:: | ≤95%RH |
| High Light: | perimeter led screen,led perimeter advertising boards |
||

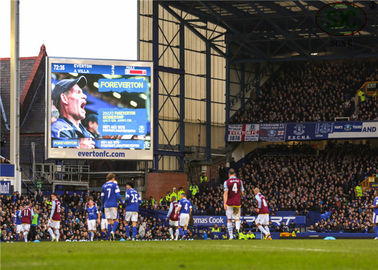

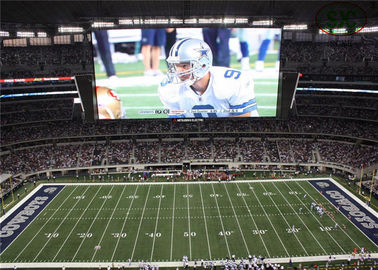

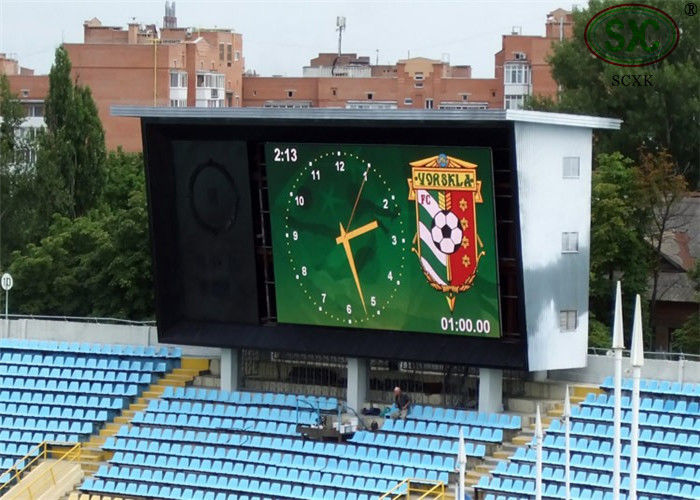

16mm x 16mm P10 Sports Stadium LED Display Advertising Field
♦ For events :
The stadium full color led display is very popular in LED display advertising field. This type digital billboards are widely used stadium.
Ways for Quality Assurance
a. Aging
1. 100% fully test
Condition: 72 hours with 256 gray level
b. Vibration Testing
Condition: 3-5 min up and down in 5mm range
♦ Features:
Vivid and exact picture, minimum noise, advanced test equipment, support any PC operation system
and play a variety of information like video, word, flash, music, clock, graph etc. LED billboard Cabinet design for easy install and dismantle
4.High brightness, this is very important for South African market, Brazil market, no matter the sunshine spot, our high brightness can work well under the big sunshine.
5.Stable performances, our JiNaite brands can gurantee you this , you have our words, the best sales services before&after sale
♦ Mobile advertising outdoor P10 full color truck led display
|
1, Item Name |
technology parameter |
|
2, pixel tube: |
pixel pitch:16mm; primary colors: pure red+ pure green +pure blue; color composing: 1R1G1B Density 3906dots/sq m; DIP346 |
|
3 , unit box |
module size:160mm×160mm; Module resolution:16X16 cabinet thickness:(cold-roll steel sheet)150mm+(maintain)600mm; |
|
4, whole screen: |
the optimum viewing angel :horizontal 110°, vertical 50° viewing distance:10-300m;working temperature:-20°C~+45°C(-30°C ~+50°C optional) relative humidity:≤95%RH; Drive IC ET6024
|
|
5, operating voltage |
AC220V±10% or 110V±10% ,average consumption:500 W/sq m max consumption:≤650 W/ sq m |
|
6, main parameter |
1) driving mode: static scan 2) refreshing rate:≥400Hz/s 3) frame frequency:≥60Hz/s 4) gray scale/color:≥16.7Mcolors(Synchronized) 5) manage gray:≥72bit 6) brightness:≥2000cd/sq m 7) color temperature condition:3500K~9500K,be adjustable 8) adjusting style of brightness: hand movement/auto 9) video signal: RF,S-Video,RGB,RGBHV,YUV,YC,COMPOSITION etc. managing ability of signal:≥12bit.against Y revised curve: owns 3pcs above Y curve that can adjustable. 10) average trouble-free time:≥5000hours 11) evenness: between random adjacent pixel ≤0.5mm,module splicing space<1mm 12) switch power loading:5V/40A 13) display mode of computer:1024×768
|
♦ Competitive Advantage:
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. On site installation instruction and regular inspection
6, Small order accepted.
♦ Factory Equipment
1: Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
2: Automatic Glue- pouring Machine, Solder Paste Printing Machine,
3: Re flow Soldering Machine, Automatic Solder Paste Printing Machine,
4: Withstand Voltage Tester, Ground Resistance Tester,
5: Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
6: Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipment.
♦Contact Info:
Ruby
Shenzhen ShiChuangXinKe Electronics Co.,Ltd
http://www.rgbleddisplays.com/
Email:ruby@scxled.cn
Tel:0086-755-36810046
Mob:0086-18123703296 (WhatsApp)
Skype:rubychen899 (Wechat)
Contact Person: Mrs Ruby
Tel: +8613590361707
