| Place of Origin: | SHENZHEN |
| Brand Name: | SCX |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P2.5 |
| Minimum Order Quantity: | negotiation |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000sqm per month |
| Module Size: | 320*160mm | Pixel Density: | 160000 |
|---|---|---|---|
| Pixel Composition: | 1R1G1B | Module Resolution: | 128*64 |
| The Optimum Viewing Angle: | H:120° V:120° | Life Span: | 100000 Hours |
| Working/ Storage Humidity: | 10%~90% RH | Refresh Rate: | ≥180Hz |
| White Balance Luminance(CDm2): | ≥1000CD/m2 | Ave.consumption(w/sqm): | 650 |
| Input Signal: | AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP | ||
| Highlight: | rental led display screen,led rental screen |
||

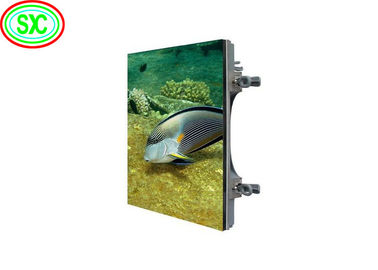

Affordable Price GOB COB HD High Resolution Indoor Full Color LED Display over 1000CD
Production process
1) Incoming inspection → 2) SMD → 3) Plug-in
→ 4) Wave soldering → 5) After soldering → 6) Testing
→ 7) Aging of semi-finished products → 8) Module assembly
→ 9) Gluing → 10) Aging of finished products → 11) Inspection, sorting and storage
Specifications
| Item | P2.5 |
| Pixel pitch | 2.5 mm |
| Pixel density(dots/sqm) | 160000/sqm |
| LED encapsulation | SMD2121 |
| Driving method | 1/30 |
| Module size(mm) | 320*160 |
| Resolution of module | 128*64 |
| Cabinet size(mm) | 640*640 |
| Max. consumption(w/sqm) | 1200 |
| Ave.consumption(w/sqm) | 650 |
| Brightness | >1000cd/ sqm |
| Refresh rate | >600HZ |
| Color temperature | 6500K |
| View angle(H/V) | 160°/140° |
| Grey scale | 16bit |
| Brightness adjustment | 256 grade/ Manually/ Automatically |
| Working/ storage tempereture | -20℃~50℃/ -30℃~60℃ |
| Working/ storage humidity | 10%~90% RH |
| Working voltage | AC220/110V 50Hz |
| Protect degree | IP43 |
| MTBF | >5000h |
| Life span | 100000h |
| Input Signal | AV, S-VIDEO, VGA, DVI, HDMI, SDI, DP |
| Operation system | Windows 7/XP |
| Control distance | cat-5 data cable:<100m, optical fiber<15km |
Advantages of GOB Led display
(1) Waterproof, anti-dumping, dustproof, and anti-collision
(2) Adopting anti-UV mask, the mask color will not change even if exposed to UV rays.
(3) Weatherproof design, fully outdoor use.
(4) Added connector, easy assembly and connection.
(5) High color uniformity and clear image, bringing you realistic audio-visual effects.
(6) Accessible from front and back.
(7) The LED chips we use have the advantages of large viewing angle, low power consumption, and good color uniformity.
(8) Using the same level of red, green, and blue LED chips, the image display of the entire LED display is more outstanding and uniform.
(9) The maintenance of pixels and individual LEDs is realized.
(10) High-quality raw materials, precise craftsmanship, and careful inspection ensure the high quality of the LED display
FAQ
Q1. How could I buy the products I need if there is no price in the website?
You can send your inquiry to us about the products you need,our sales will reply you within 24 hours to help you make the order.
Q2. How long could I get reply of my inquiry?
You will get a reply within 24 hours.
Q3. What kind of warranty do you offer?
all product here we offer 3 year at least warranty.
Q4. How is the after sales service?
We have a professional team which is in charge of after-sales service, also a service hot-line dealing with your complains and feedback.We also offer 24-hour online service to help you solving problems.
Q5. What kind of payment methods do you have As a manufacturer?
We take T/T and Cash as payment terms
Q6. How long will it take to deliver goods?
We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get your payment.
Q7. What kind of packaging you offer?
During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
