IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations

IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations

IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations
IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations
IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixels: 4.81mm Tube Chip Color: Full Color
Led Type: SMD3535 Display Function: Video/Text/Image
Cabinet: Steel Or Aluminum For Options The Optimum Viewing Angel: H:160°,V:160°
Relative Humidity: ≤95%RH Power Supply: AC80-260V±10%/50Hz,60Hz
Regular Cabinet Size: 1000mmx500mm Module Size: 250mmx250mm
Warranty Time: 3 Years IC: MBI 5024 IC
Density: 12580dots/㎡ Chip Brand: Epistar Led
Certificates: CE,RoHs,FCC Rated Power/average Power: 400W/240W
Scan Mode: Constant Current 7 Scan
High Light:

interactive dance floor

,

light up dance floor

IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations



Description

Led video dance floor is a new digital terrestrial. Our led dance floor uses a high strength resin mask, the support of solid aluminum die-casting equipment, big load-bearing capacity, easy to connect, can be directly stampede with highly performance protective structure, can be connected seamlessly next panel, random combinations.
RGB colorful LED dance floor
Ø Unlimited programming effects
Ø Special lighting effect
Ø 32-bit colour (16.7 million color combinations)
Ø Modular & highly portable
Ø Quick and easy installation
Ø More affordable than any existing solutions
Ø Sealed for long, durable lifetime

♦ Product specification

LED Specifications
1 Type SMD
2 LED Standard Real Pixel(1R1G1B)
3 Red Wavelength 625-630nm
4 Green Wavelength 515-530nm
5 Blue Wavelength 465-475nm
Module Specifications
1 Pixel Pitch 4.81mm
2 Resolution 52x52dots
3 Module size 250x250mm

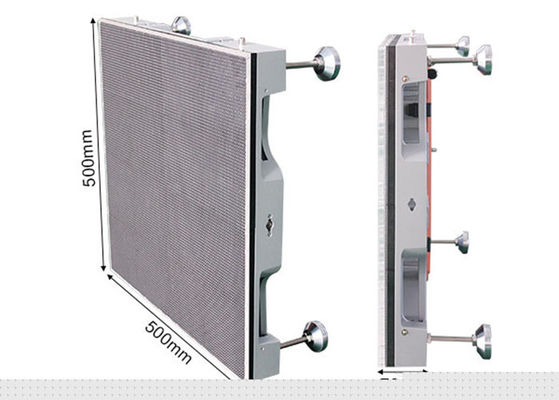

Cabinet Specifications
1 Cabinet Size(W*H) 500x500mm
2 Cabinet Resolution 104x104dots
3 Pixel Density 43222dots/㎡
4 Cabinet Weight ≤6.5kg
5 Material die casting aluminum
6 Flatness of cabinet ≤0.3mm
Screen Parameters
1 Color /Brightness Calibration Yes
2 Color Temperature(K) 3000-10000
3 Light Centre Distance Deviation <3%
4 Brightness Uniformity ≥97%
5 Color Uniformity Within ±0.003C×,Cy
6 Contrast Ratio 5000:1
7 View Angle Horizontal160°/ Vertical 140°
8 Input Voltage AC100~240V(50-60Hz)
9 Power Consumption Max:800w/㎡ Avg:280w/㎡
10 Driving Method 13 scaning
11 Protection Level IP65 waterproof
12 Grey Scale Levels R(256) G(256) B(256)
13 Life Span 100,000 Hrs
14 Temperature-Operating -20 — 40℃
15 Humidity-Operating 10 - 99%
16 Features anti-slip,anti-collision,big load-bearing capacity
17 Usage led floors, led wall background
18 Display function txt, picture, video


IP65 Waterproof Dj 3d Led Dance Floor , Light Up Dance Floor For Wedding Decorations 0

♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing

♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.

♦ Applications
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion
shows, concerts, ceremonies, entertainment,etc.

♦ Our advantages
Professional Manufacturer of led display
1. OEM service,No MOQ
2. Easy installation,regular items in Stocks
3. Offering free design drawing as requested.
4. Remote controlling and adjusting are available.
5. Wooden case or flight case,you are the boss.
6. Your reply will be replied within 24 hours.
7. Fast delivery: Usually 6-8 working days
8. Excellent R&D team,factory Price and assure you quality goods.


Service
Pre-sale service:
1.Reply enquiries in 24 hours.
2.Market research and forecast for customer.
3.Provide unique and professional solutions based on customer's requirement.
4.Data sheet and samples offer.
5.Other services, such as special packing design, factory visiting and so on.

In-sale service:
1.Tracking report in producing.
2.Quality test report for every order.
3.Photos and videos as per customer's requirement.
4.Free spare parts.

After-sale service:
1.Lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.Customer satisfaction tracking report.
4.Free technician training.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.Special service for big project, such as stadium, exhibitions, squares and so on.
