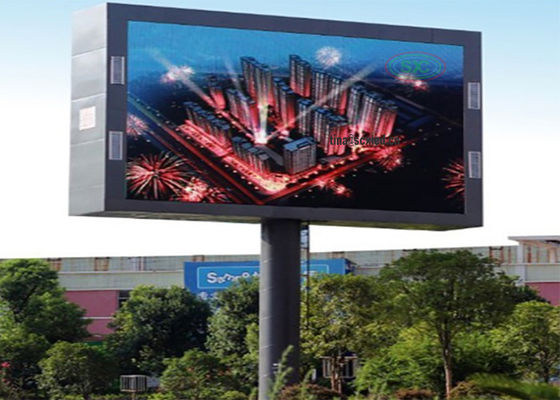

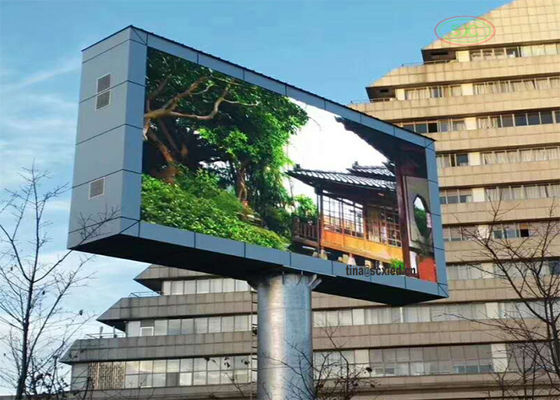

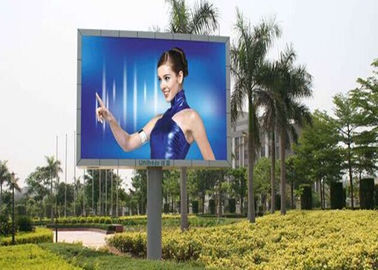

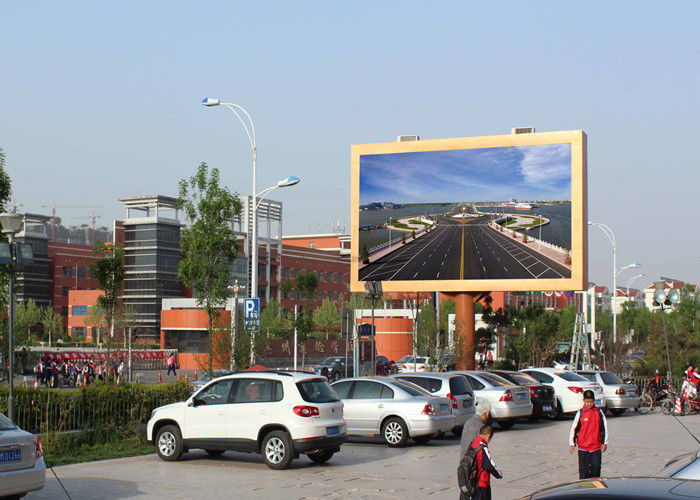

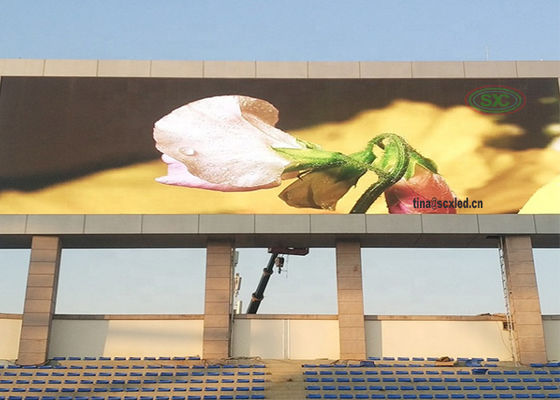

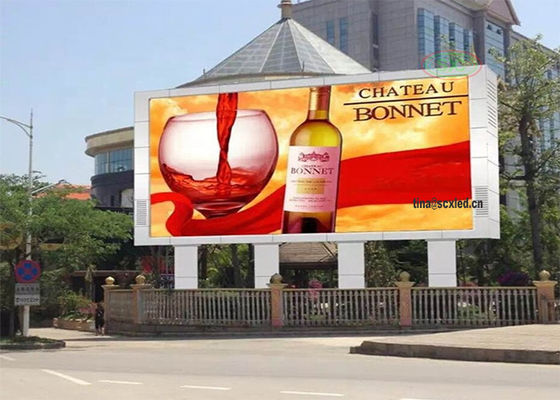

Outdoor P8 LED Billboard Screen 8mm Pixel Pitch IP65 Waterproof

Outdoor Full Color High Quality P8 Fixed Installation Advertising LED Billboard Digital LED Video Wall Screen

• Uses ultra-high brightness LED and high-quality plastic pieces
• High-contrast hue achieves excellent display quality
• Lightweight design for easy installation and removal
• Supports single-point, single lamp maintenance with low cost
• Constant current LED driving for uniform lighting and low power consumption
• 6mm pixel pitch with 32×16 pixels (1R1G1B per pixel)

• High brightness (≥4000cd/㎡) suitable for all-day outdoor use
• Long lifespan (≥100,000 hours)
• Wide viewing angles (≥160° indoor, ≥120° outdoor)
• Intelligent control system with computer or WiFi operation
• Flexible shaping and seamless splicing compared to LCD displays

Parameter	Specification
Pixel Pitch	8mm
LED Type	SMD3528
Pixel Composition	1R1G1B
Scan Method	1/8
Screen Brightness	>6500nits (adjustable)
Average Power Consumption	280W/sqm
Maximum Power Consumption	850W/sqm
Module Resolution	32dots × 16dots
Module Size	256mm × 128mm
Pixel Density	15625dots/sqm
Viewing Distance	5-150m
Viewing Angle	Level: 105°, Vertical: 50°
Lifespan	>50,000 hours
Working Temperature	-10°C to +50°C

• Wind-resistant structure (100 km/h) and earthquake-proof (8 magnitude)
• Excellent waterproof performance with safe, reliable power system
• Customizable components to meet specific requirements
• Environmentally friendly materials
• Product lifespan exceeds 5 years
• 2-5 years warranty
• Includes installation support, technical assistance, and training services

To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

Packing options: wooden case or flight case

Shipping methods: air, sea, train, or DHL - you choose
