Name: SCXK P3 Indoor Full Color LED Display 3mm Pixel Video Wall
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P3
Price: 10000.00 USD
Availability: InStock

Home Products Indoor Full Color LED Display

SCXK P3 Indoor Full Color LED Display 3mm Pixel Video Wall

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P3

Payment & Shipping Terms:

Minimum Order Quantity:	3sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	3mm	Tube Chip Color:	Full Color
Cabinet:	Iron Or Aluminum For Options	Pixel Configuration:	1R1G1B
Warranty:	3 Years	Brand:	SCXK
Highlight:	led screen module , led sign module

P3 Epistal Full Color High Definition Indoor LED Advertising Video Wall Screen

Product Specifications

Attribute	Value
Pixels	3mm
Tube Chip Color	Full color
Cabinet	Iron or Aluminum For Options
Pixel Configuration	1R1G1B
Warranty	3 years
Brand	SCXK

Product Description

P3 Epistal 576*576mm High Definition Indoor LED Advertising Video Wall Screen

Key Advantages

Price Advantage: Competitive market pricing with superior quality
Quality Advantage: Complete control from material selection to final production
Service Advantage: Exceptional customer service and cooperation

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Technical Specifications

Parameter	Specification
Lamp size	2020
Resolution/mm	3
Pixel configuration	RGB 3 in 1
Pixel density/pixels/m²	111111/m²
Module resolution	64x64
Module size/mm	192x192
View distance	≥3m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>1000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 14 bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:5km
Driving mode	Constant driving current
Scanning mode	1/32
Frame rate	60Hz
Refresh frequency	>4200Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃ Storing temperature range: -30-65℃
Maximum power:/㎡	<600W
Average power:/㎡	<180W

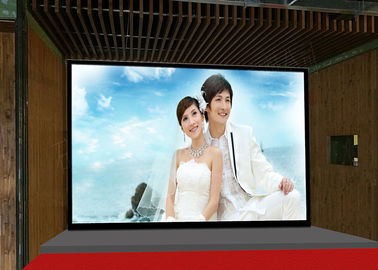

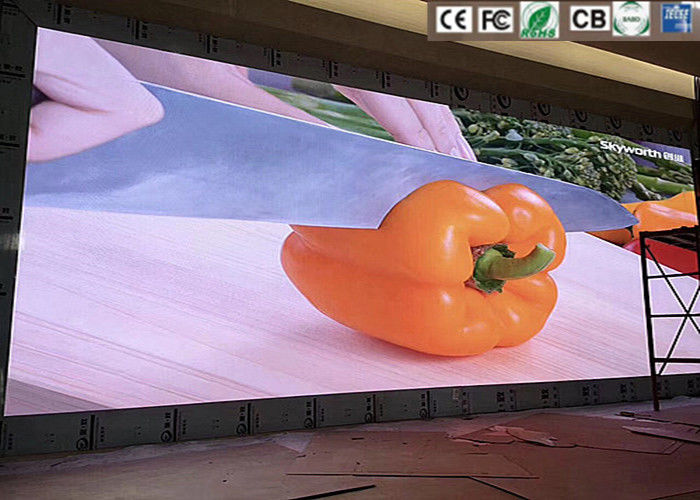

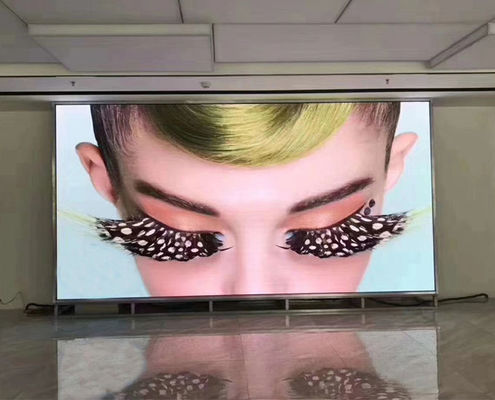

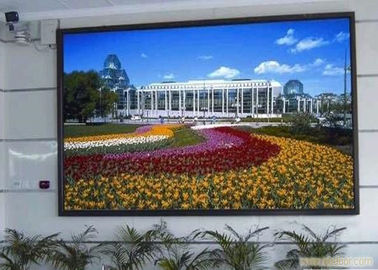

Product Images

SCX Competitive Advantages

Diversified Products: Wide range of outdoor/indoor LED display models with custom cabinet options
Experienced & Professional: 10+ years manufacturing experience with professional workmanship
Premium Materials: Taiwan Epistar LED chips for high brightness and long lifespan
Competitive Pricing: Factory-direct pricing for cost-effective solutions
Strict Quality Control: 100% testing before shipment
Quality Guarantee: 100,000+ hours lifespan for all LED displays

Quality Assurance Methods

Aging Test: 100% fully tested for 72 hours with 256 grey level
Vibration Testing: 3-5 minutes up and down in 5mm range

Why Choose Us

Consistent Quality: 12+ years experience with regularly updated equipment and standardized production
Competitive Pricing: Large-scale production capacity and cost-effective solutions
Fast Delivery: Commitment to promised delivery dates with emergency inventory options
Comprehensive Service: Pre-sales consultation and after-sales product tracking

Frequently Asked Questions

Are you a trading company or manufacturer?

We are factory.

How long is your delivery time?

Generally 3-5 working days for in-stock items, or 15-20 days for out-of-stock items (quantity dependent).

Do you provide samples? Is it free or extra?

Yes, we offer free samples but customers pay for freight.

What are your payment terms?

Payment <=3000USD: 100% in advance. Payment >=3000USD: 30% T/T in advance, balance before shipment.
