Name: SMD 2727 P6 Outdoor Full Color LED Billboard IP65 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P6
Price: 10000.00 USD
Availability: InStock

Home Products Advertising LED Screens

SMD 2727 P6 Outdoor Full Color LED Billboard IP65 Waterproof

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	3 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C,D/A
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixels:	6mm	Tube Chip Color:	Full Color
Waterproof:	Ip65	Cabinet:	Steel Or Aluminum For Options
Viewing Angle:	H:100 V:50	Optimal Viewing Distance:	>=4m
Voltage:	DC5V	Driving Mode:	1/8scan
Highlight:	advertising led display board , outdoor advertising led display

SMD 2727 P6 Outdoor Full Color Advertising LED Billboards 3 Years Warranty

Product Specifications

Attribute	Value
Pixels	6mm
Tube Chip Color	Full color
Waterproof	IP65
Cabinet	Steel or Aluminum For Options
Viewing Angle	H:100° V:50°
Optimal Viewing Distance	≥4m
Voltage	DC5V
Driving Mode	1/8scan

Product Description

High Brightness Outdoor LED Display with Superior Quality

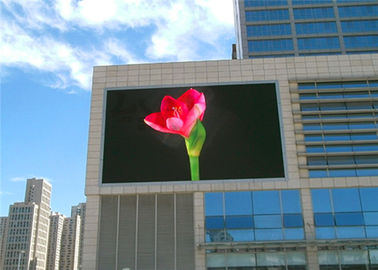

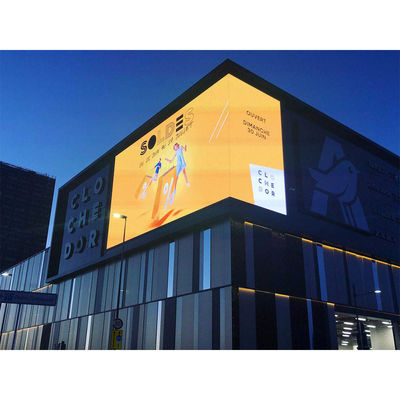

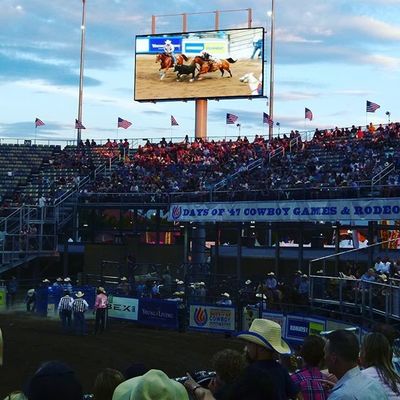

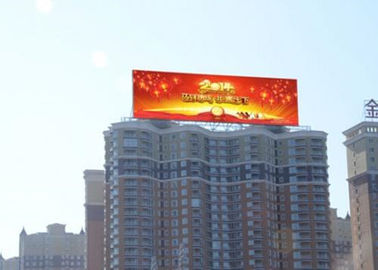

Designed for outdoor installations, the P6 SMD Outdoor LED Screen delivers exceptional brightness and high-definition visuals, making it ideal for various applications including stages, banks, highways, promotions, stations, and stadiums.

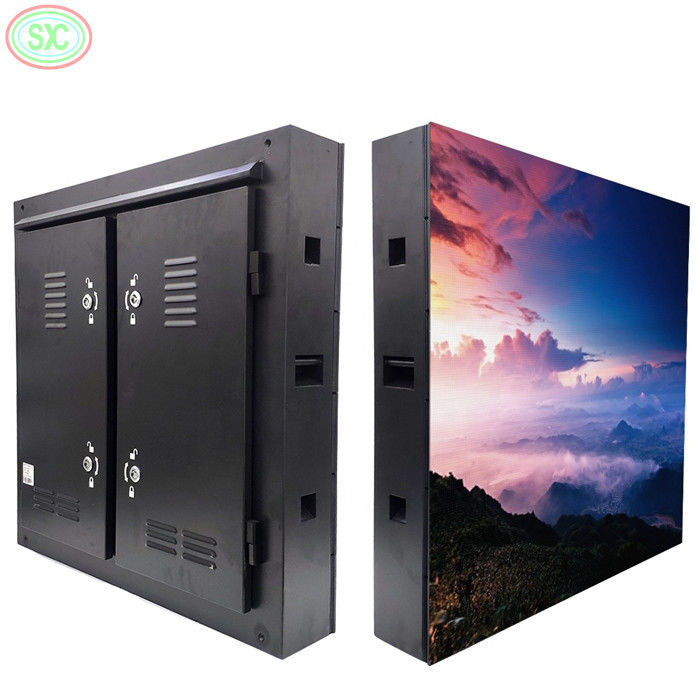

IP65 Waterproof Protection and Modular Design

The SMD Outdoor LED Screen features a special waterproof design that effectively protects against water and dust. With an IP65 rating, it ensures reliable performance in all weather conditions.

Technical Parameters

Items	P6 Indoor SMD 3-in-1 Full Color LED Display
Pitch Size	6mm
Module Size	192mm × 192mm
Module Pixel (Dots)	32 × 32
Pixel Configuration	1Red, 1Green, 1Blue
LED Chip	Epistar
Color Scale	65536degree/16777216colors
Pixel Density	62500pixels/square meter
View Angle (H/V)	120/120degree
Brightness	≥1200cd/sqm
Brightness Adjustment	64 level automatic or manual
View Distance	2-200m
Power Consumption	200-1100W/sqm
Net Weight	45kg/square meter
Operating Temperature	-25°C to +60°C
Operating Humidity	10%-95%RH
Life Time	≥100,000hours
Out of Control Dot	≤3/10,000
Whole Display Flatness	≤1mm Juncture
Exchange Frame Speed	>150frames per second
Refresh Frame Frequency	700Hz
Control Distance	120m (without repeater), single mode fiber:20km, multi mode fiber: 500m
Power	110V/220V±15% 50~60Hz
Operating System	Windows98/Me/2000/Xp/window 7
Drive Mode	Constant current driving, 1/8 scan
Display Mode	VGA640X480--VGA1600X1024
Maintenance Way	Rear access
Accepting Signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Packaging and Shipping

Packed in anti-static bags, bubble bags, foam box and carton to ensure safety during transportation. Customized single box packaging available upon request.

Delivery within 30 working days after payment confirmation. Shipping options include airway, freight, or as per customer requirements.
