Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE,ROHS,FCC,SASO |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 3 SQM |
|---|---|
| Price: | USD 2000-1000 |
| Packaging Details: | Flight Case , Size: 60x62x50cm, Wooden Case, Size:70x65x55cm |
| Delivery Time: | 7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 sqm per month |
| Step Pixels: | 2.5mm | LED Shape & Size: | 2.5mm SMD 2121 |
|---|---|---|---|
| Module Dimension: | 160 Mm X 160 Mm | Module Resolution: | 64 X 64 |
| Screen Dimension: | Customized | Cabinet Size: | 640mm X 640mm |
| Cabinet Resolution: | 256x 256 | Display Function: | Video,animation,graphics |
| Warranty: | 3~5 Years | Brightness: | 1000 |
| Cabinet Size: | 480*480mm*68mm | ||
| Highlight: | led video screen rental,rental led display screen |
||
High resolution indoor P2.5 rental led display with 640*640mm cabinet die casting aluminum cabinet for rental use
Product Description
1. Use Taiwan Jingyuan first-level LED chips
2. Pure gold wire is used for internal connection of LED
3. The module frame and mask are made of large A-row materials
4. Four-layer PCB, copper plating thickness>18mil
5. Stainless steel screws are used for assembly
6. Quick and convenient disassembly and assembly
7. 3-5 years warranty
8. Energy saving 60%: low-frequency current drive, heat dissipation roller fan, automatic temperature control device.
9. Service life>10 years;
Pamameter
| Module Parameters | |||||
| Pixel Pitch | 2.5mm | ||||
| Pixel Configuration | 1R1G1B | ||||
| Density | 160000 pixels/sqm | ||||
| LED Lamp | SMD2121 | ||||
| Module Size | 160*160mm | ||||
| Module Resolution | (W)64Pixels * (H)64Pixels | ||||
| Working Voltage | DC5V | ||||
| Scan Mode | 1/32 Scan | ||||
| Drive IC | MBI5124(Can be customized) | ||||
| Port Type | HUB75 | ||||
| Screen Parameters | |||||
| Cabinet Size | (W)640*(H)640mm | ||||
| Cabinet Material | Die-casting aluminum | ||||
| Cabinet Weight | 5.76KG | ||||
| Cabinet Resolution | 256*256 Pixels | ||||
| Module Qty | 16pcs | ||||
| Power Supply | 200W | ||||
| Working Voltage | AC220V±10% | ||||
| Max Power Consumption | 600W/sqm | ||||
| Ave Power Consumption | 200W/sqm | ||||
| Brightness | 800 Nits | ||||
| Refresh Rate | 1920Hz/ 3840Hz | ||||
| Frame Frequency | 60Hz | ||||
| Grey Scale | 14 bit | ||||
| Brightness Level | 256 levels | ||||
| Best View Distance | 2.5M-50M | ||||
| View Angle | 120°(Horizontal); 120°(Vertical) | ||||
| Protection Degree | IP30 | ||||
| Working Temperature | -20℃ ~ +60℃ | ||||
| Relative Humidity | 10%-95% | ||||
| Operation system | WIN7/WIN8 | ||||
| Control Method | Synchronous or Asynchronous | ||||
| Control System | NovaStar | ||||
| Receiving Card | MRV336 | ||||
| Control Distance | 100M(Ethernet cable); 20KM(Optical fiber cable) | ||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||

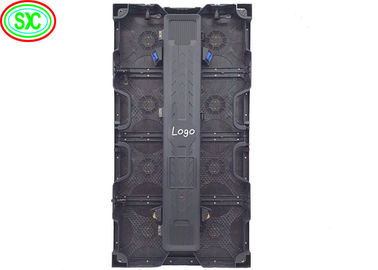

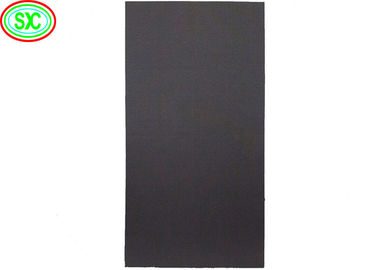

Detailed Picture
Our Service
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms
1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying
2.Shipping freight are quoted under your requests
3.Shipping port:ShenZhen,Mainland China
4.MOQ: 1sqm
