Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE,ISO,FCC,UL |
| Model Number: | SCXK-P3 |
| Minimum Order Quantity: | 5sqms |
|---|---|
| Price: | 750-850USD/sqm |
| Packaging Details: | Wooden and flight cases,it's all up to you. |
| Delivery Time: | 12-15 working days after receiving your down payment. |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqms/month |
| Usage: | Video | Color: | Full Color |
|---|---|---|---|
| Type Cabinet: | Iron/Die-cast Aluminum Cabinet | Module Size: | 192*192MM |
| Pixel Pitch: | 3MM | Brightness: | ≥1500cd/sqm |
| Pixel Density: | 111111dots/sqm | Scan Mode: | 1/16 |
| Control System: | Nova,Linsn | Working Voltage: | DC5V |
| Highlight: | P3 full color led module,3MM rgb led display module |
||
Nationstar led P3 Outdoor Rental LED Display Screen for stage backdrop video events show with high brightness
Application places:
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows,
fashion shows, concerts, ceremonies, entertainment,etc.
Full color LED Display usually used in the shooping mall,commercial centure,station,airport,concert,giving report,party,and other things.
It's very useful in this day,any info can be transfered by it.
In some ways,it gave us more color in the life and provide the convience.
Specifications of product:
| P3 Full Color LED Module | |||||
| Resolution/mm | 3 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 111111/square meter | ||||
| Module resolution | 64x64mm | ||||
| Module size/mm | 192x192mm | ||||
| View distance | 4-150m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >1500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 120(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/16 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Waterproof | IP43 | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||

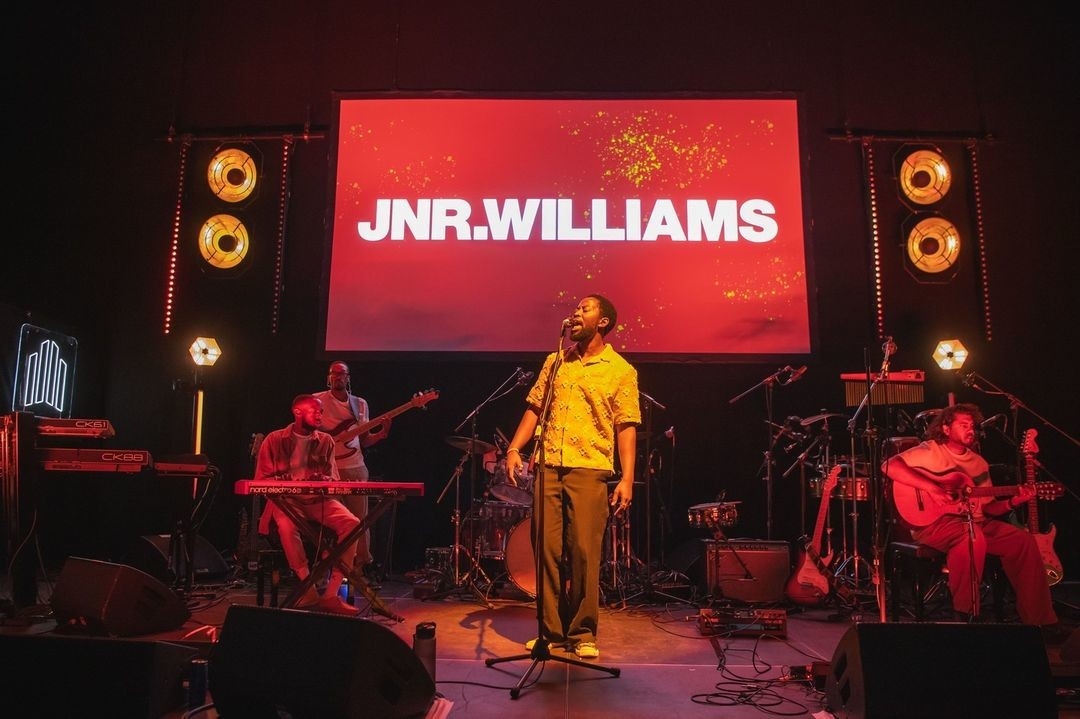

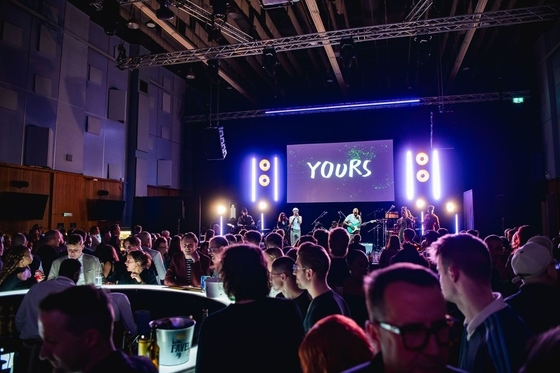

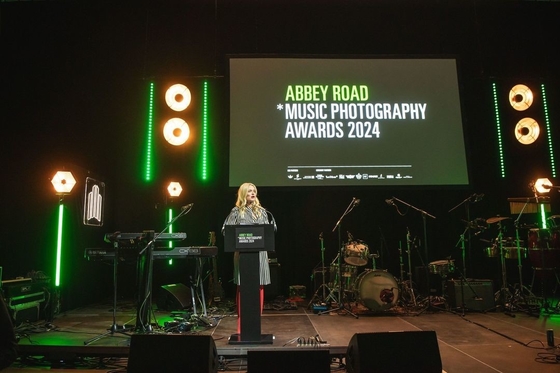

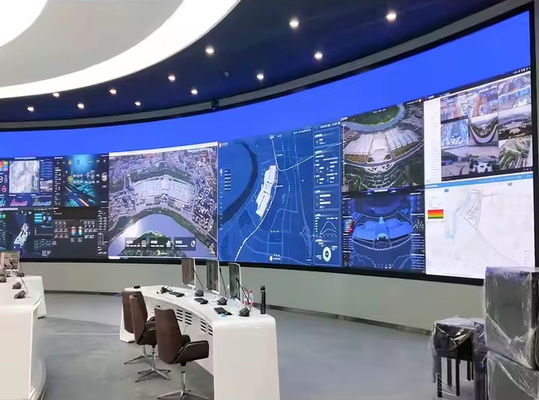

Our Cases:
Production Process:
Our Company:
___________________________________FAQ_________________________________________
Q1.Can I have a sample order for the LED display?
A:Yes,we welcome sample orders to test and check quality.Both for the module or the whole screen.
Q2.What about the lead time?
A:Order less than 100 square meters lead time to take 15 working days
Q3.Do you have any MOQ limit for LED display orders?
A:Low MOQ,1 square meter or a module checking is available
Q4.How do you ship the goods and how long does it take to arrive?
A:We mostly accept EXW FOB CIF DDP and other shipping ways.It usually takes 20~30 days on the sea.a few days for customs clearance
Q5.How to proceed with an order for an LED display?
A:Firstly let us know your requirements or application.
Secondly,We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places a deposit for the formal order.
Fourthly We arrange the production.
Q6.Is it OK to print my logo on the products?
A:Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer a guarantee for the products?
A:Yes,we offer 1-5 years warranty for our products.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
