Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China ,Guang Dong |
| Brand Name: | Shichuangxinke |
| Certification: | CE RoHS FCC CCC TUV UL |
| Model Number: | SCXK-P4 |
| Minimum Order Quantity: | 3 square meters |
|---|---|
| Price: | USD1900-2100 per square meters |
| Packaging Details: | wooden box flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after deposit payment received |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Resolution/mm: | 4 | Pixel Configuration: | 1R1G1B |
|---|---|---|---|
| Scanning Mode: | 1/8 Scanning | Module Size: | 256x128MM |
| Cabinet Size: | 512x512MM | Material: | Aluminum |
| Certificates: | CE RoHS FCC CCC UL | Warranty: | 3-5 Years |
| Application: | Stadium,airport,shopping Mall,street Advertising | ||
| Highlight: | P3.91 led display screen rental,HD rent led video wall |
||

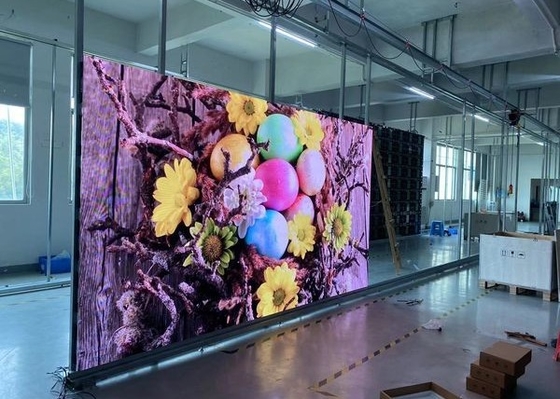

China Manufacturer Video P3.91 Outdoor Led Display Rental Images HD Screen for Advertising Mall / Cinema
1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
Specifications :
| Outdoor P4 LED advertising Display Screen | ||
| Information | Pixel Pitch | 4mm |
| Pixel Density | 62500 Pixels/m2 | |
| Pixel Configuration | 1R1G1B | |
| LED Wavelength | Red: 615 nm - 635 nm | |
| Green: 520 nm - 535 nm | ||
| Blue: 465 nm - 475 nm | ||
| LED Module | Module Size(mm) | 256(Width) × 128 (Height) |
| Module Resolution | 64(Width) × 32 (Height) | |
| Cabinet | Cabinet Size(mm) | 512 (Width) ×512(Height) |
| Cabinet Resolution | 128 (Width) × 128 (Height) | |
| Total QYT Module Per Cabinet | 4 (Width) ×4(Height) | |
| Cabinet Weight | 30kg/m2 | |
| Cabinet Material | Die-casting Aluminum LED Display | |
| Power | Input Voltage | 100-240V AC, 50/60Hz |
| Max Power Consumption | 1200 Watt/m2 | |
| Avg. Power Consumption | 720 Watt/m2 | |
| Brightness | ≥1800cd/m2 | |
| Brightness Uniformity | Luminance Discrepancy < 5% | |
| Best Viewing Angle | Horizontal:140°,Vertical:70° | |
| Viewing Distance | 5 - 15 meters | |
| Ambint Conditions | Temperature Range | Working:-20deg. to +60deg |
| Operating Humidity | 10%90%RH | |
| Ingression Protection Grade | IP40 | |
| Processing | Scanning Mode | 1/8 scanning |
| Signal Input | DVI, Composite Video for Live Video | |
| Supported Networking | Through LAN/WAN, RS 232/RS485 | |
| Controller | Linsn or Nova | |
Competitive advantages:
1, P4 SMD outdoor full color LED display uniform in brightness and color;
2, Full color P4 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P4 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
Our Company:
FAQ
1. How to place an order with us?
We are a factory producing outdoor and indoor LED displays with nearly 5 years professional experience in this field.
If you are interested in our products, we will try our best to cooperate with you.
Firstly, you can tell us the size of the module, then our engineers will analyze and make several projects for you to choose according to your requirements, each project has its own advantages and disadvantages, all the details including the price for your reference, then you can decide which project is the most suitable for you according to your own situation.
Once you confirm the order, you will pay 30% deposit to us, you and us both stamp and sign the contract, then we will produce the goods for you, make sure to provide you with good quality and deliver the goods within the deadline, service first, trust us, trust the world.
2. if you want cheaper price,what will we do?
Because we are a factory, the price we give you is reasonable, and we must guarantee the quality,
If the products are the same, you can compare the price with other suppliers,
However, if your quantity is really large, we can also consider a very low profit in exchange for your long term cooperation with us, so as to realize a win-win situation.
Profit is not our last goal, our goal is to provide better quality and service for more people, so that more people can enjoy the different feeling,
Using our LED display, you will get a relaxed and happy mood,
We can talk about anything, communication is never a problem.
3. How do you trust our product quality?
To build up a good reputation, just talking won't do, we have to prove ourselves with practical actions, starting from purchasing materials, every process is very strict, our engineers will check the quality of materials, even the smallest parts,
What's more, they will guide the workers to produce, once they find something bad, they will redo the badly made product in the shortest time, they will take great pains to test every point until they get all the points right,
Because they know that details determine success or failure, especially in today's society, you are welcome to come to our company to visit and guide us.
4. Can you visit our factory in China?
Normally, no one is allowed to visit our factory except our employees, because you know it is not good for the workers to concentrate on the production.
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
