Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China(Mainland) |
| Brand Name: | SCXK |
| Certification: | CE ,RoHS, FCC.CCC,SAA ,TUV ,UL |
| Model Number: | SCXK-P5 |
| Minimum Order Quantity: | Negotiations |
|---|---|
| Price: | Negotiations |
| Packaging Details: | Wooden and flight cases,it's up to you. |
| Delivery Time: | 7-10 working days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqs/month |
| Product Name: | Outdoor Full Color LED Display | Color: | Full Color,RGB LED Display |
|---|---|---|---|
| Resolution: | 32*32 | Module Size: | 320*160mm |
| LED Chip: | Epistar | Pixel Density: | 40000dots/sq |
| Cabinet Material: | Iron/Die Casting Aluminum Cabinet | Waterproof: | IP65 |
| Scan Mode: | 1/8 | Brightness: | ≥7500cd/sq |
| Warranty: | 3-5years | Indoor Options: | P1.667,P1.923,P2,P2.5,P3,P3.91,P4,P5,P6,P10... |
| Highlight: | Backdrops Suspended LED Displays,Concerts Suspended LED Displays,Rental Suspended LED Displays |
||

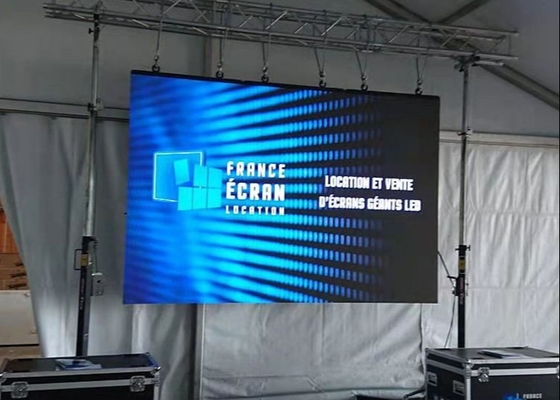

LED display die-casting aluminum P5 outdoor LED display for Stage Background / Competition
What we do?
We are a leading manufacturer and provider of technical solution of full color indoor an outdoor ledisplay,rental LED display, led modules where in Shenzhen ctiy,Guangdong province,China.
Why choose us?
1. Professional team and good after-sales service.
2. Promise high quality product for good price.
3. Quick delivery after payment.
4. Free technical support.
5. If any problems appear,we'll replay in 3-4 hours.
Specifications :
| Outdoor SMD P5 Full Color LED Display | |||||
| Resolution/mm | 5 | ||||
| Pixel configuration | 1R1G1B | ||||
| Pixel density/pixels/m² | 40000/square meter | ||||
| Module resolution | 32x32mm | ||||
| Module size/mm | 320x160mm | ||||
| View distance | 14-300m | ||||
| Single point brightness adjust | Can be added | ||||
| Single point color adjust | Can be added | ||||
| White balance brightness | >7500cd/square meter | ||||
| Color temperature | 6500K-9500K | ||||
| Horizontal view angle | 120(degrees) | ||||
| Vertical view angle | 60(degrees) | ||||
| Signal Process bit | 10 or 16bit | ||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | ||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | ||||
| Driving mode | Constant driving current | ||||
| Scanning mode | 1/8 SCANNING | ||||
| Frame rate | 60Hz | ||||
| Refresh frequency | >3000Hz | ||||
| Control mode | Computer synchronous | ||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted | ||||
| 255 steps. No grey loss | |||||
| Out of control point | <1/10000 | ||||
| Working hours | ≥72hours | ||||
| Mean Time Between Failure | >5000hours | ||||
| Life time | 100000hours | ||||
| Life-all-white(brightness halving) | 50000hours | ||||
| Environment temperature range | Operating temperature range: -20-45℃ | ||||
| Self-check technology | LED spot self-check, communications check, power check, | ||||
| temperature monitor(need customization) | |||||
| Remote monitoring | Remote supervision and control, record potential fault, | ||||
| send out warning signs to the operators.(need customization) | |||||
| Software environment | WindowsNT,Windows1999,WindowsXP | ||||
| Luminous point width between centres | Deviation<3% | ||||
| Brightness uniformity | <10% | ||||
| Color uniformity(chromaticity coordinate) | ±0.003 | ||||
| Power supply request | AC85-264V(50Hz-60Hz) | ||||
| Contrast | (1000:1) | ||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | ||||
| Humidity(working) | working:10-95% | ||||
| Humidity(storing) | storing:10-95% | ||||
Competitive advantages:
1, P5 SMD outdoor full color LED display uniform in brightness and color;
2, Full color P5 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P4 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use;
Certificate:
FAQ:
|
Q1: What's the warranty of your LED Display Screen ? A1: We have a 3-year warranty for our led display screen, and 100,000 hours life span of the led lamps. |
|
Q2: What about your pre-sale service and post-sale service? A2: For pre-sale service: We have a professional sales team and 13 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! |
|
Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. |
|
Q4: What's the control system? A4: For synchronization control: We use Nova, Linsn Or Colorlight control system. |
|
Q5: How can you ensure the led display product quality? A5: Our led display screen quality is our core competence, for 8 years, what we rely on. |
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3.36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
Welcome to visit our website and inquire us more info,waiting for you all the time!!!
Contact Person: Lillian seori
Tel: +8619386814677
