Name: COB Fine Pitch 0.9mm Indoor LED Video Wall Display Panel
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P0.9
Price: 1500 USD
Availability: InStock

Home Products Fine Pitch Led Display

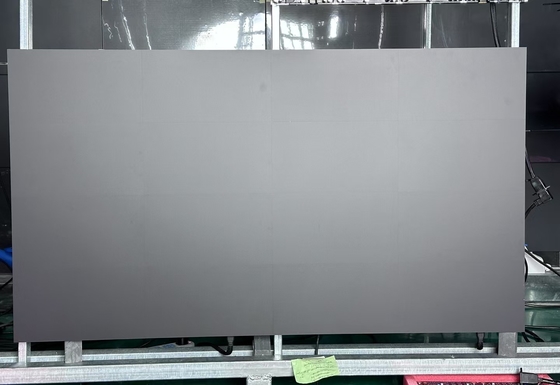

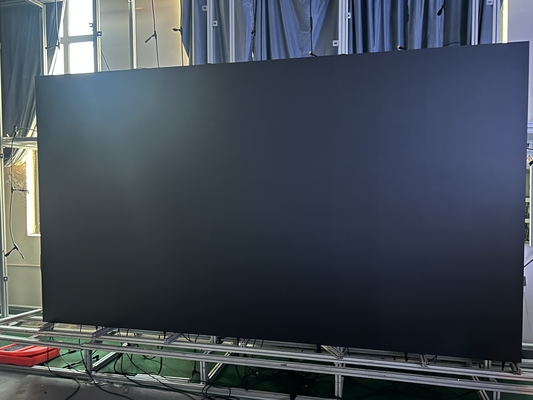

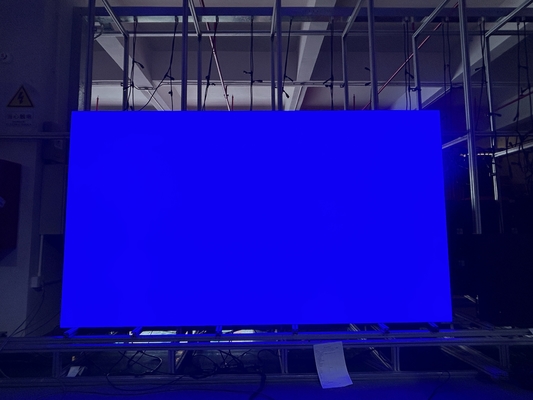

COB Fine Pitch 0.9mm Indoor LED Video Wall Display Panel

Product Details:

Place of Origin:	CHINA
Brand Name:	SCX-COB P0.9 ,P1.25 ,P1.56
Certification:	CB,FCC CE
Model Number:	P0.9

Payment & Shipping Terms:

Minimum Order Quantity:	2 sqm
Price:	1500usd per sqm
Packaging Details:	wooden case,flight case
Delivery Time:	7-10 working days
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	4500 sqm month

Contact Now

Detailed Product Description

Pixel Pitch:	0.9mm	Ip Protection:	Indoor IP43
Weight:	4kg	Pixel Density:	1137777dots/sqm
Cabinet Resolution:	640x360	Maintenance Method:	Front Maintenance
Moudle Size:	300X168.75mm	Control System:	Nova Star
Operating Voltage:	DC2.8V	Scanning Mode:	1/64
Maximum Power:	≤50W
Highlight:	Videotron Display Screen Panel , Fine Pitch Indoor LED Video Wall , 4K Indoor LED Video Wall

COB Fine Pitch 4K P0.9 P1.25 P1.56 Indoor LED Video Wall Display Panel

Key Specifications

Attribute	Value
Pixel Pitch	0.9mm
IP Protection	Indoor IP43
Weight	4kg
Pixel Density	1,137,777 dots/sqm
Cabinet Resolution	640×360
Maintenance Method	Front Maintenance
Module Size	300×168.75mm
Control System	Nova Star
Operating Voltage	DC2.8V
Scanning Mode	1/64
Maximum Power	≤50W

Technical Parameters

Parameter	Specification
Product Model	Full Flip-Chip COB
Applications	Indoor
LED Type	Full Flip-Chip COB
Panel Size	600×337.5×42mm
Panel Weight	6±0.5Kg/panel
Brightness	600 cd/m²
Color Temperature	3000-13000K adjustable
Refresh Frequency	≥3840Hz
Viewing Angle	H140°/V140°
Contrast Ratio	1,000,000:1
LED Life	100,000 hours

Manufacturing Technique Comparison

Feature	Flip COB	Standard COB	SMD	IMB
Technical Difficulty	High	Moderately High	Low	Medium
Display Quality	Excellent	Excellent	Good	Average
Stability & Protection	Excellent	Good	Average	Average
Energy Efficiency	High	High	Moderate	Low
Cost	High	Moderately High	Low	Low

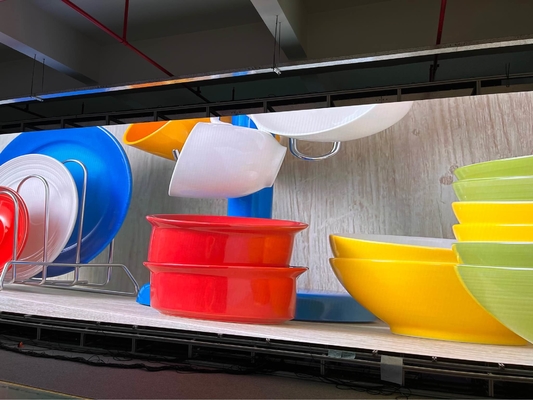

Project Case

Frequently Asked Questions

Can I order a sample of the LED display?

Yes, we welcome clients to order samples for quality testing.

What is the lead time?

Samples require 5-7 days, while bulk orders take 7-14 working days.

How are goods shipped and how long does delivery take?

LED screens are packed in wooden boxes or flight cases. We typically ship by sea, but DHL, UPS, FedEx or TNT are also available.

How do I place an order?

Please provide your requirements for a customized quote. After confirmation, we'll send a Proforma Invoice and arrange deposit payment. The balance is paid before shipment.

Can I have my logo printed on the product?

Yes, your logo can be printed on the cabinet.

What warranty do you offer?

We provide a 2-3 year warranty on our products.

What is the screen weight?

Aluminum cabinets weigh 22-30kg/sqm, while iron cabinets weigh 35-55kg/sqm.

What components are needed if I only purchase LED modules?

For fixed installations, you'll need sending cards, receiving cards, power supplies, and various cables, which we can provide.

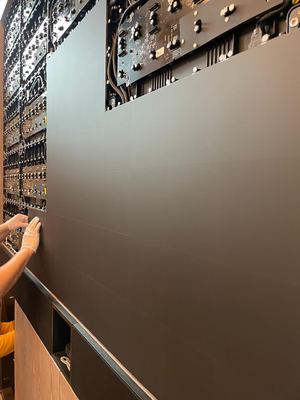

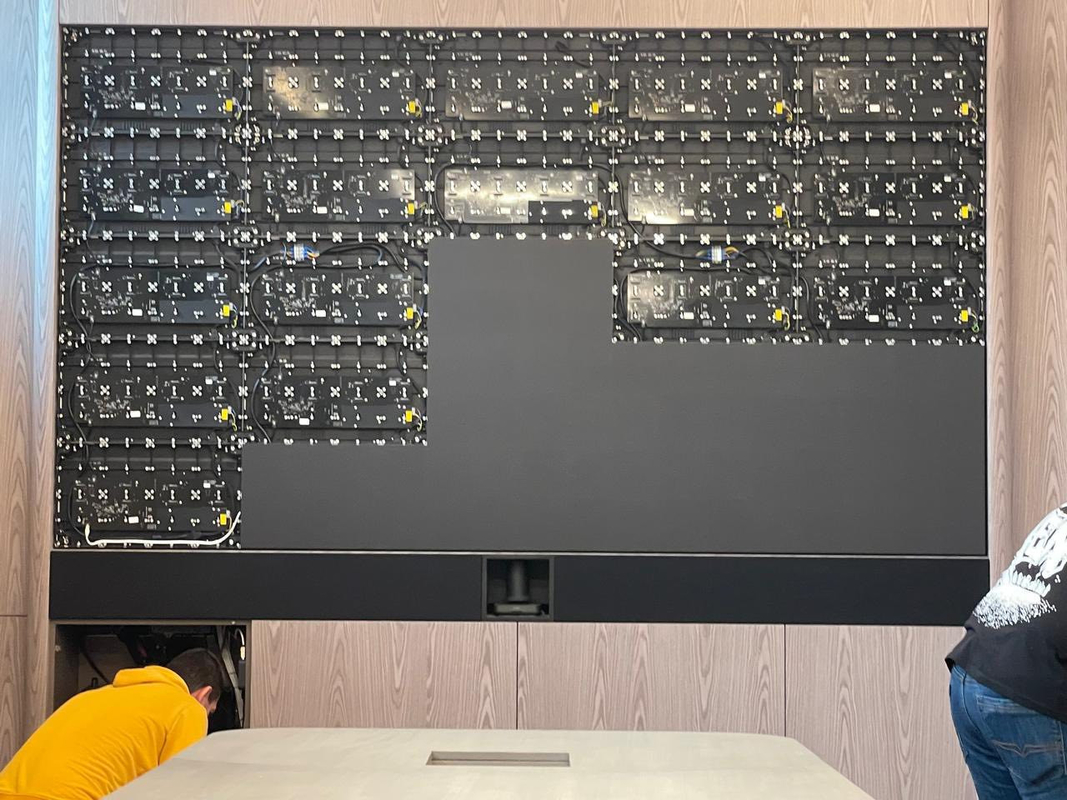

How is the LED screen installed?

Cabinet-based screens are simple to install by connecting cabinets. For module-only purchases, we provide detailed installation instructions.

How is the LED screen debugged?

We pre-debug screens based on your specifications. After installation, simply connect the sending card. Remote technical support is also available.
