P10 Outdoor LED Display Module 10mm Full Color Video Signage

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	6 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	Tube Chip Color:	Full Color
Display Function:	Video	Cabinet:	Iron Or Aluminum For Options
Module Size:	320160mm/160160mm	Dot Density:	10000
Warranty:	3 Years	Voltage:	DC5V
Highlight:	led sign module , rgb led display module

P10 Outdoor Advertising LED Display Screen Module Digital Signage Sign Board

Product Specifications

Pixels	10mm
Tube Chip Color	Full color
Display Function	Video
Cabinet	Iron or Aluminum For Options
Module size	320160mm/160160mm
Dot density	10000
Warranty	3 years
Voltage	DC5V

Product Description

Outdoor Waterproof P10 Fixed Installation LED Advertising Billboards Module 32x16 Dots

The high resolution LED billboard is known for displaying great quality pictures and videos to a broader audience. Highly usable for outdoor advertising such as banks, stages, promotion, exhibitions, highways, stations, stadiums and other outdoor areas.

Well-known Brand Power Supply

All series outdoor Fixed adopt Meanwhile power supply, electro optic conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply electro optic conversion ratio is under 80%, and high heat dissipation, not stable, low cost.

Unique Design - Easy to Install & Transport

The cabinet of P10 SMD Outdoor LED Billboard features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.

Technical Specifications

Resolution/mm	10
Pixel configuration	1R1G1B
Pixel density/pixels/m²	10000/m²
Module resolution	32x16
Module size/mm	320x160
View distance	10-300m
Single point brightness adjust	Can be added
Single point color adjust	Can be added
White balance brightness	>5000cd/㎡
Color temperature	6500K-9500K
Horizontal view angle	120(degrees)
Vertical view angle	60(degrees)
Signal Process bit	10 or 16bit
Grey process	1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances	Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode	Constant driving current
Scanning mode	static dring
Frame rate	60Hz
Refresh frequency	>3000Hz
Control mode	Computer synchronous
Brightness adjusted range	Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss
Out of control point	<1/10000
Working hours	≥72hours
Mean Time Between Failure	>5000hours
Life time	100000hours
Life-all-white(brightness halving)	50000hours
Environment temperature range	Operating temperature range: -20-45℃
Maximum power:/㎡	<600W
Average power:/㎡	<200W
Self-check technology	LED spot self-check, communications check, power check, temperature monitor(need customization)
Remote monitoring	Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization)

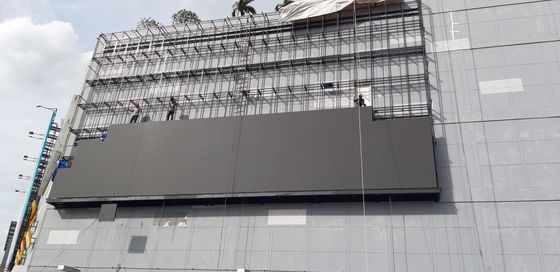

Installation Procedure

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping ways for your choice.

Why Choose Us

Continues Quality

With more than 10 years experience in led display producing, equipments are updated regularly. What's more, unique standardized and module production ensure our products continuous quality.

Competitive Price

With large scale production capacity and professional production technology, our company have built effective modular production. We always stick to promote the technical innovation and reduce cost to benefit customers.

Fast Delivery

Once we promise the delivery date, we will try our best to fulfill it. Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.

Perfect Service

Pre-sales: Your purchasing requirements will be highly valued and we'll recommend suitable products to you. After-sales: We will track the products usage and then constantly perfect our products.
