Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL |
| Model Number: | P2.5 |
| Minimum Order Quantity: | 1-1000sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case |
| Delivery Time: | 7-15 |
| Payment Terms: | T/T |
| Module Size: | 160*160 | Protection Level: | IP34 |
|---|---|---|---|
| LED Shape & Size: | 2mm Smd2121 | Brightness: | 2200 |
| Pixel Density: | 160000 | Driver Mode: | 1/32 |
| View Angle: | 120° / 60° | Cabinet Size: | 480mm*480mm |
| High Light: | rental led display screen,led rental screen |
||

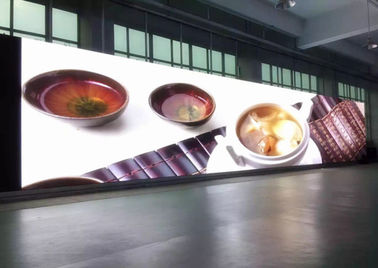

High Brightness P2.5 Wall stage led display screen rental WIFI slim cabinet 480*480
1. excellent design should be easy to understood,the produce will talk for itself,cancelling the necessity of detailed explain
2. seamless stitching :with the special connector design ,it's easy to reduce gaps while installing ,creating a perfect display
3. Adopt the latest anti-collision technology,make a more stable cabinet during rental events,make a longer life span
4. die casting aluminum alloy control box,adapt to all kinds of weather
| parameters | ||
| Unit Module | Item | parameter |
| Model | p2.5 indoor led display | |
| Module size | 240mm*120mm*10mm | |
| Pixel Pitch | 2.5mm | |
| Pixel Density | 160000dots/m2 | |
| Pixel Configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Module Resolution | 96dots(W)*48dots(H) | |
| Max power consumption | 20w | |
| Module Thickness | 10mm(without magnet) 13mm (with magnet ) | |
| Module Weight | 0.21kg | |
| Driving Method | Constant Current Driving | |
| Scan Method | 1/24scan | |
| Interface Way | HUB75E | |
| Brightness | ≥1000cd/m2 | |
| Unit Module | dimension | 480mmx480mm |
| Quantity of Module | 8 | |
| Thermal discharge | fan 2pcs | |
| Power supply Mode | 5V/60A* 1pcs | |
| Pixel per cabinet | 192mm*192mm | |
| Thickness | 85mm | |
| Optimal Viewing Distance | 2M-10M | |
| Optimal Viewing angle | 160°(W)120°(H) | |
| Enviroment Temperature | Storage :-35ºC-+85ºC work :-20ºC-+50ºC |
|
| Power | Relative Humidity | 20%-90% |
| Operating Voltage | AC220V±10% | |
| Average power consumption | ≤200W/m2 | |
| Max power Consumption | ≤300W/m2 | |
| Current | ≤20mA (Single LED ) | |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP | |
| Control Mode | Synchronization with PC | |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥400HZ | |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor | |
| MTBF | ≥9000hours | |
| Power Switch | Automatic Switch | |
| Display Mode | 800*600/1024*768 | |
Packaging:
1:Flight Case(3 cabinets in one case)
Gross Weight:150KG
Size:1010mm*560mm*1175mm
2:Wooden case(3 cabinets in one case)
Gross Weight:180KG
Size:1120mm*585mm*930mm
Buying Guides
In order to offer you a suitable solution,pleasefollow the guides belowing:
1, star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)
After-Sale Service
1. One year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.
Company Information
Shenzhen SCXK Electronics Co.,Ltd has the standard new factory,and about 100 employees.
We have outstanding R&D department and after-sell service workers,and separately design ability.
Our product mainly included led single dual color display,led indoor full color display;led outdoor full color display,led wireless car used screen etc.It can be used on the shopping more,bank,bus station,train station,Center of downtown,airport,school,factory,bus,taxi and son on.
We adapt many methods and very good after-sell service to sell our product all over the world.
Whenever and wherever we are,we always take the principle that is:professional makes good quality,good price product market to provide perfect product and service for our customers.
Certifications:
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory,located in Dalang,Longhua District .
2.Q:What kind of payment terms you accept?
A:We accept T/T,Western Union,MoneyGram etc.
3.Q:What's packaging?
A:1.Flight case packaging
2.Wooden case packaging
3. 36pcs in one case packaging
4.Customized packaging
4.Q:Does you have CE/ROHS certificates?
A:Yes, we offer the CE & ROHS certificates .
5.Q:What's the shipping method,shipping time?
A:Our products could be shipped by Sea, by Air, and by Express.
by sea:20-40days; by air:5-10days ;by express:3-6days
