Name: P6 Outdoor Waterproof SMD 3535 LED Video Wall Display IP65
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P6
Price: 469.00 USD
Availability: InStock

Home Products SMD LED Screen

P6 Outdoor Waterproof SMD 3535 LED Video Wall Display IP65

Product Details:

Place of Origin:	ShenZhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL/CB
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	386$-552$
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	6mm	Led Type:	SMD 3535/2727
Waterproof:	Ip65	Module Resolution:	32*32
Warranty:	3 Years	Voltage:	DC5V
Pixel Density:	27778	Brightness:	5500
Module Size:	192*192
Highlight:	smd led display , outdoor smd led display

China Full Color HD P6 Outdoor Waterproof Full Color LED Video Wall SMD 3535 LED Display Panels

Product Specifications

Attribute	Value
Pixels	6mm
LED Type	SMD 3535/2727
Waterproof	IP65
Module Resolution	32*32
Warranty	3 years
Voltage	DC5V
Pixel Density	27778
Brightness	5500
Module Size	192*192

Product Description

P6 Outdoor Full Color LED Video Wall Display / SMD 3535 LED Video Display Panels with CE

Our Mission: To be the premier provider of creative, marketing and innovative solutions devoted to helping other companies succeed and grow.

P6 SMD LED Screen Features

Lightweight design for convenient transportation and installation, saving labor costs and ideal for flow shows
Attractive appearance with simple structures
Easy assembly requiring no tools - can be installed and dismounted by one person
User-friendly interface with breakdown indicator lights for easy maintenance
High brightness with no gray scale damage, delivering excellent image quality

P6 SMD LED Screen Applications

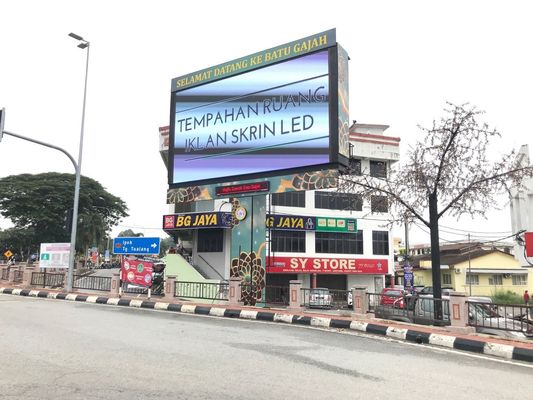

Outdoor and indoor advertising, digital billboards
Sports halls, fields, playgrounds, schools, churches
Transportation hubs including airports, bus stations and railway terminals
Commercial buildings, shopping malls, department stores, banks and car dealerships
Public information systems and architectural projects
Entertainment events, concerts, festivals, and motor shows

Technical Parameters

Module Parameters

Item	Specification
Pixel type	Real full color
Pixel color	RGB
Module size	320*320mm
Pixel LED	SMD3535
Pixels pitch	6mm
Resolution rate	32*32
Driving way	1/8
Driving IC	MBI5024
Working voltage	DC5V
Power	80W
Working temperature	-30°C - +50°C

Screen Parameters

Item	Specification
Material	Aluminum
Color	Black
Size	960*960mm
Resolution rate	96*96
Module quantity	5*5
Density	10000dots/m²
White balance luminance	7000-11000cd/m²
Color temperature	6500
Horizontal view angle	110°
Vertical view angle	50°
Protection grade	Before/after: IP67/IP65
Non-Flatness	<1mm
Module interval	<1mm
Weight	40kg
Maximal power/m²	750W
Frame frequency	≥60Hz/s
Refresh frequency	800-3840Hz
Gray grade	102410241024Grade/1073741824
Luminance adjustment	256 grade by auto-optic/color & 8 grade by hand
Input signal	RF, S-video, RGB, RGBHV, YUV, YC & Composition, etc
MTBF	>5000h
Life-span	>100000h
Speckles rate	<0.0001

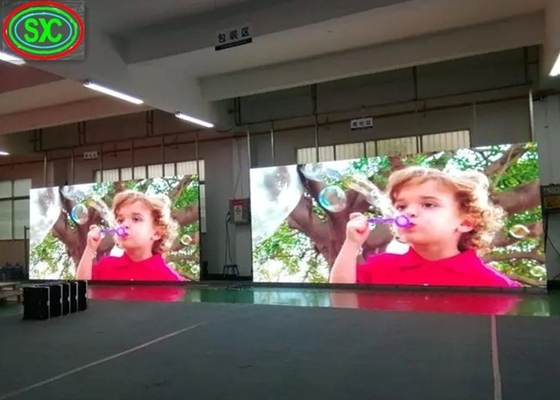

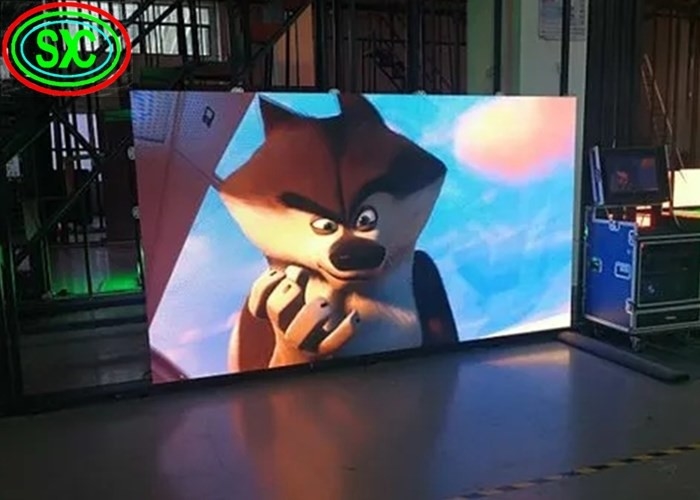

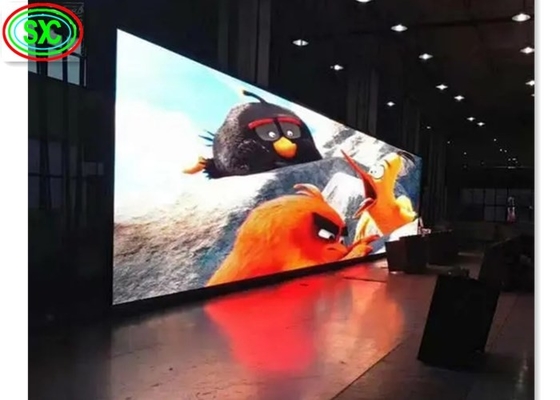

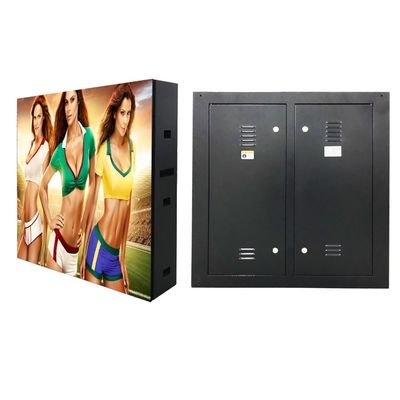

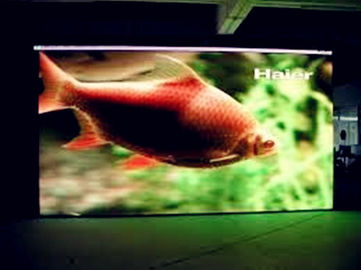

Product Gallery

Packaging & Shipping

Frequently Asked Questions

Q1: How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It typically takes 3-5 days to arrive. Airline and sea shipping options are also available.

Q2: How to proceed with an order for LED display?

A: Our ordering process: 1) Share your requirements or application; 2) We provide a quotation; 3) Confirm samples and place deposit; 4) We arrange production.

Q3: Is it OK to print my logo on LED display product?

A: Yes. Please inform us before production and confirm the design based on our sample.

Q4: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty for our products.
