Name: P4.81mm SMD3535 LED Dance Floor 240W IP65 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P4.81
Price: 10000.00 USD
Availability: InStock

Home Products LED Dance Floor

P4.81mm SMD3535 LED Dance Floor 240W IP65 Waterproof

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P4.81

Payment & Shipping Terms:

Minimum Order Quantity:	5 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	4.81mm	Tube Chip Color:	Full Color
Led Type:	SMD3535	The Optimum Viewing Angel:	H:160°,V:140°
Relative Humidity:	≤92%RH	Power Supply:	AC80-260V±10%/50Hz,60Hz
Regular Cabinet Size:	1000mmx500mm	Module Size:	250mmx250mm
Warranty Time:	3 Years	Density:	12580dots/㎡
Chip Brand:	Epistar Led	Average Power:	240W
Highlight:	club dance floor , light up dance floor

High Resolution Indoor/Outdoor P4.81 Full Color LED Dance Floor Factory For Bar Events

Indoor/Outdoor P4.81 Full Color LED Dance Floor Factory Price For Events

Product Description

LED video dance floor is a new digital terrestrial solution. Our LED dance floor features a high-strength resin mask with solid aluminum die-casting support, offering big load-bearing capacity, easy connection, and direct stampede capability. The highly protective structure allows seamless panel connection and random combinations.

RGB Colorful LED Dance Floor Features

Unlimited programming effects
Special lighting effects
32-bit color (16.7 million color combinations)
Modular & highly portable design
Quick and easy installation
More affordable than existing solutions
Sealed for long, durable lifetime

Product Specifications

LED Specifications
1	Type	SMD
2	LED Standard	Real Pixel(1R1G1B)
3	Red Wavelength	625-630nm
4	Green Wavelength	515-530nm
5	Blue Wavelength	465-475nm

Module Specifications
1	Pixel Pitch	4.81mm
2	Resolution	52x52 dots
3	Module Size	250x250mm

Cabinet Specifications
1	Cabinet Size (W*H)	500x500mm
2	Cabinet Resolution	104x104 dots
3	Pixel Density	43222 dots/㎡
4	Cabinet Weight	≤6.5kg
5	Material	Die casting aluminum
6	Flatness of cabinet	≤0.3mm

Screen Parameters
1	Color/Brightness Calibration	Yes
2	Color Temperature (K)	3000-10000
3	Light Centre Distance Deviation	＜3%
4	Brightness Uniformity	≥97%
5	Color Uniformity	Within ±0.003C×,Cy
6	Contrast Ratio	5000:1
7	View Angle	Horizontal 160°/Vertical 140°
8	Input Voltage	AC100~240V(50-60Hz)
9	Power Consumption	Max:800w/㎡ Avg:280w/㎡
10	Driving Method	13 scanning
11	Protection Level	IP65 waterproof
12	Grey Scale Levels	R(256) G(256) B(256)
13	Life Span	100,000 Hrs
14	Temperature-Operating	-20 -- 40℃
15	Humidity-Operating	10 - 99%
16	Features	Anti-slip, anti-collision, big load-bearing capacity
17	Usage	LED floors, LED wall background
18	Display function	Txt, picture, video

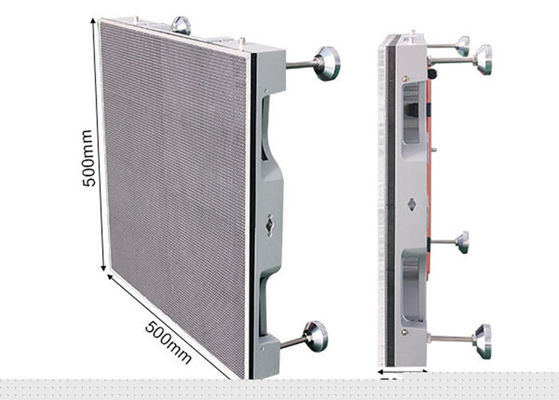

Module:

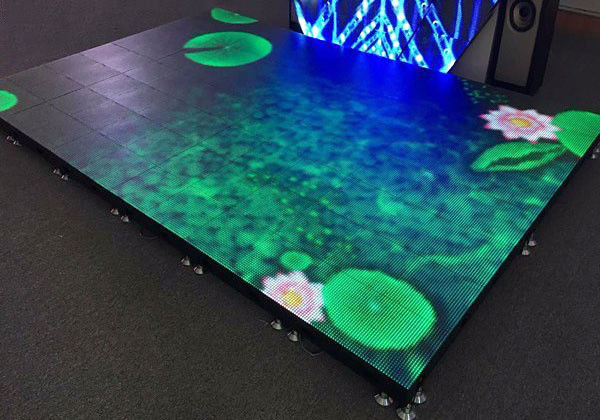

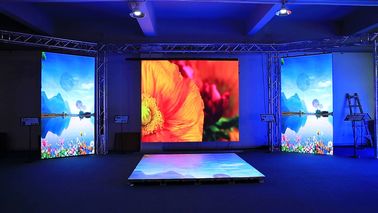

Show Effect:

Packaging and Shipping

Wooden case or flight case package are available. Shipping by sea, air or DHL, multiple shipping options available.

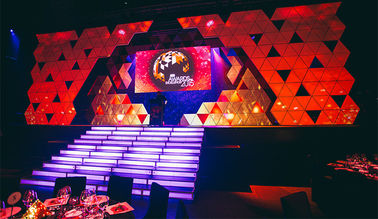

Applications

Stage, sports, advertising, traffic, events, stadium, shopping center, airport, exhibitions, car shows, fashion shows, concerts, ceremonies, entertainment, etc.

Our Advantages

Professional Manufacturer of LED display
OEM service, No MOQ
Easy installation, regular items in Stocks
Offering free design drawing as requested
Remote controlling and adjusting available
Wooden case or flight case options
24-hour response time
Fast delivery: Usually 6-8 working days
Excellent R&D team, factory Price and quality assurance

Service

Pre-sale service:

Reply enquiries in 24 hours
Market research and forecast for customer
Provide unique and professional solutions based on customer's requirement
Data sheet and samples offer
Other services, such as special packing design, factory visiting

In-sale service:

Tracking report in producing
Quality test report for every order
Photos and videos as per customer's requirement
Free spare parts

After-sale service:

Lifetime free maintenance and upgrade
Complaint respond period not exceed 24 hours; maintenance guidance in 48 hours
Customer satisfaction tracking report
Free technician training
Full set of documents including installation guidance, software operation manual, maintenance manual and control system software CD
Special service for big projects like stadiums, exhibitions, squares
