4.81mm Pixel Pitch Full Color LED Dance Floor IP65 Waterproof

• Display Effect and Interactive: Display 50 kinds of patterns, all video formats, and text with built-in interactive dynamic effects that respond to footsteps

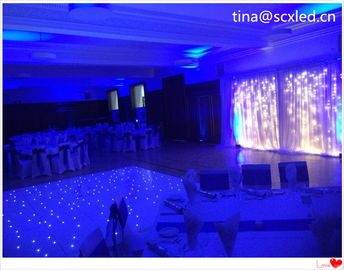

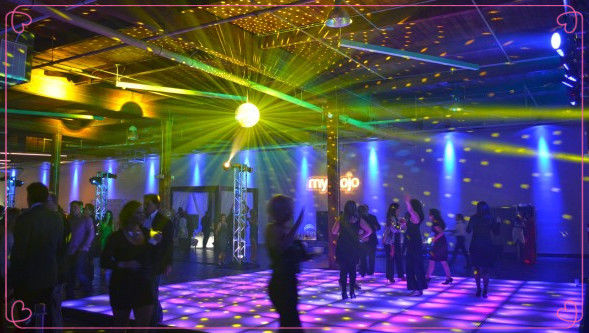

Architectural/retail spaces, stage productions, night clubs, DJ parties, live concerts, award functions, art galleries, museums, and more

1	Type	SMD
2	LED Standard	Real Pixel(1R1G1B)
3	Red Wavelength	625-630nm
4	Green Wavelength	515-530nm
5	Blue Wavelength	465-475nm

1	Pixel Pitch	4.81mm
2	Resolution	52x52dots
3	Module size	250x250mm

1	Cabinet Size(W*H)	500x500mm
2	Cabinet Resolution	104x104dots
3	Pixel Density	43222dots/㎡
4	Cabinet Weight	≤6.5kg
5	Material	Die casting aluminum
6	Flatness of cabinet	≤0.3mm

1	Color/Brightness Calibration	Yes
2	Color Temperature(K)	3000-10000
3	Light Centre Distance Deviation	＜3%
4	Brightness Uniformity	≥97%
5	Color Uniformity	Within ±0.003C×,Cy
6	Contrast Ratio	5000:1
7	View Angle	Horizontal160°/Vertical140°
8	Input Voltage	AC100~240V(50-60Hz)
9	Power Consumption	Max:800w/㎡ Avg:280w/㎡
10	Driving Method	13 scaning
11	Protection Level	IP65 waterproof
12	Grey Scale Levels	R(256) G(256) B(256)
13	Life Span	100,000 Hrs
14	Temperature-Operating	-20 -- 40℃
15	Humidity-Operating	10 - 99%
16	Features	Anti-slip, anti-collision, big load-bearing capacity
17	Usage	LED floors, LED wall background
18	Display function	Txt, picture, video

• Professional LED display manufacturer with OEM service and no MOQ
• Easy installation with regular items in stock
• Free design drawings available upon request
• Remote controlling and adjusting capabilities
• Flexible packaging options (wooden case or flight case)
• 24-hour response time for inquiries
• Fast delivery: Usually 6-8 working days
• Excellent R&D team offering factory prices with quality assurance

Wooden case or flight case packaging available. Shipping options include sea, air, or DHL with multiple shipping methods to choose from.

• Aging: 100% fully tested for 72 hours with 256 grey level
• Vibration Testing: 3-5 minutes up and down in 5mm range

With over 12 years of LED display production experience, regularly updated equipment, and unique standardized module production ensuring consistent product quality.

Large-scale production capacity and professional technology create effective modular production, allowing us to promote innovation while reducing costs for customers.

We commit to promised delivery dates, using special procedures like emergency inventory to maintain uninterrupted product supply.

Pre-sales: We value your requirements and recommend suitable products. After-sales: We track product usage to continuously improve our offerings.
