Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.

|
| Place of Origin: | ShenZhen China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/CB |
| Model Number: | P3.91 |
| Minimum Order Quantity: | 5 sqm |
|---|---|
| Price: | 525$-829$ |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-15 working days after receive your payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000sqm per month |
| Pixels: | 3.91mm | Cabinet: | Die Casting Aluminum |
|---|---|---|---|
| Frame Frequency: | >=60HZ | Average NO Failure: | >=1000hours |
| Transmiiting Distance: | Internet Cable <100m | Refresh Rate: | >=1920HZ |
| Maximum Power: | 600m2 | Module Size: | 250*250mm |
| Cabinet Size: | 500*500mm / 500*1000mm | Pixel Density: | 65410 |
| Highlight: | led video screen rental,rental led display screen |
||
Technical Parameters:
| Parameter | Value | ||||||
| Product Model | P2 | P2.5 | P3 | P3.91 | P4 | P5 | P6 |
| Pixel Pitch | 2mm | 2.5mm | 3mm | 3.91mm | 4mm | 5mm | 6mm |
| Driving Mode | 1/20 Scan | 1/16 Scan | 1/16 Scan | 1/16 Scan | 1/20 Scan | 1/8 Scan | 1/8 Scan |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD 1515 Black | SMD 2020 Black | SMD 2020 Black | SMD 2020 Black | SMD 2020 Black | SMD 2020 Black | SMD 3528 Black |
| Module Size(mm) | 256*256 | 240*240 | 192*192 | 250*250 | 128*128 | 320*160 | 192*192 |
| Module Pixels | 128*128 | 96*96 | 64*64 | 64*64 | 32*32 | 64*32 | 32*32 |
| Pixel Density | 250000 dots/sqm | 160000 dots/sqm | 111111 dots/sqm | 65536 dots/sqm | 62500 dots/sqm | 40000 dots/sqm |
27777 dots/sqm |
| Viewing Angle | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° |
| Max./Avg. Power Comsumption |
1000/400 W/sqm |
1000/400 W/sqm |
900/360 W/sqm |
800/320 W/sqm |
800/320 W/sqm |
600/240 W/sqm |
600/240 W/sqm |
| Brightness | ≥1800 cd/m² | ≥1500 cd/m² | ≥1500 cd/m² | ≥1500 cd/m² | ≥1500 cd/m² | ≥1500 cd/m² | ≥1200 cd/m² |
| Refresh Rate | ≥3000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz | ≥2000Hz |
| Recommended Viewing Distance | ≥2m | ≥2.5m | ≥3m | ≥3.91m | ≥4m | ≥5m | ≥6m |
| Operating Temperature/Humidity | -20℃~+65℃/10%~95%RH | ||||||
Features of P3.91 / 4.81 led screen

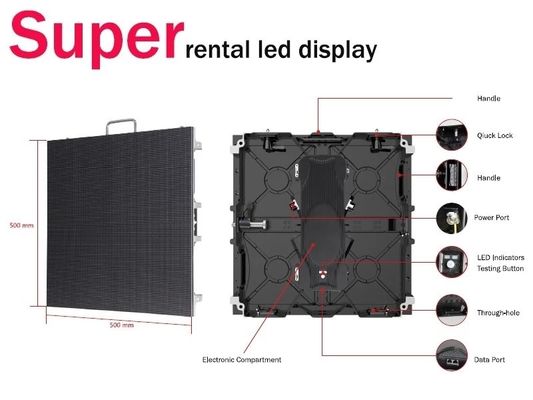

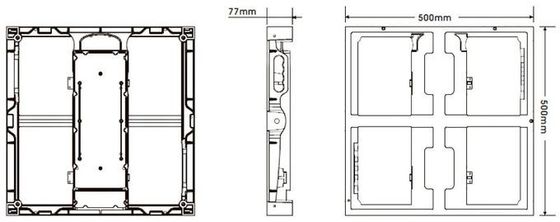

1) 500mm*1000mm light weight cabinet-15kgs-Sample Design.
2) To adopt Printed Circuit Board to instead of metal cables in the side of cabinet.
3) Without complex cable checking and connection.
4) It is more helpful for display to work fluently.
5)The other important advantage is avoiding more trouble and saving much time for after-sales maintenance. If any wrong for circuit working,customer can easily replace the board in time.
Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
1. Wooden case or flight case package
2. Shipping by sea,air or DHL,multiple shipping ways.
♦ Why choose us:
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly.What’s
more,unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built
effective modular production.We always stick to promote the technical innovation and reduce cost to
benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency
inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Our team will be forever here to offer you full supports !!!
Contact Person: Susan_zhang
Tel: +8618344159301
