P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm

P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm

  • P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm
  • P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm
  • P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm
  • P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm
  • P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm
P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/UL
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixels: 6mm Tube Chip Color: Full Color
Cabinet: Steel Or Aluminum For Options Pixel Configuration: 1R1G1B
Warranty: 3 Years Brand: SCXK
High Light:

led screen module

,

led sign module

P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm







Products function introduction:


1) High intensity and can be adjusted, so can meet the request of the customers according the environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect LED Curtain Screen.
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line.
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
6) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, indoor P6 display etc.





Features



◆3 times aging process.
◆Salty spray test, high voltage test, varying temperature test, waterproof test, vibration test.
◆Long service time and low attenuation by applying dual channels for heat dissipation.
◆High protection grade of IP66 achieved by patented mask design with waterproof and dustproof fuction.
◆No deformation under sunlight by the use of Anti-UV module mask, Anti-Oxidation module frame with protection from deformation.

◆Energy Saving Outdoor Fixed LED Display

◆Able to work in all weather outdoor environments. High protection grade of IP65 suitable for winter and cold areas like North European countries and Russia, and high temperature like KSA, Oman, UAE, etc.

◆Super light p6 outdoor led screen for rental use movable led display for concert background

◆Night club, Entertainment events, New product press conference, Stadiums, Stages background, TV shows, Concerts, TV Studio etc.



Specifications :



Outdoor SMD P6
Resolution/mm 6
Pixel configuration 1R1G1B
Pixel density/pixels/m² 43222/m²
Module resolution 27778
Module size/mm 192x192mm
View distance 14-300m
Single point brightness adjust Can be added
Single point color adjust Can be added
White balance brightness >7500cd/㎡
Color temperature 6500K-9500K
Horizontal view angle 120(degrees)
Vertical view angle 60(degrees)
Signal Process bit 10 or 16bit
Grey process 1024x1024x1024 16834x16834x16834 65536x65536x65536
Control distances Internet cable:100m, multimembrane:500m, monofilm:2km
Driving mode Constant driving current
Scanning mode 1/13 SCANNING
Frame rate 60Hz
Refresh frequency >3000Hz
Control mode Computer synchronous
Brightness adjusted range Manual, automatic operation, stepless continuous adjusted
255 steps. No grey loss
Out of control point <1/10000
Working hours ≥72hours
Mean Time Between Failure >5000hours
Life time 100000hours
Life-all-white(brightness halving) 50000hours
Environment temperature range Operating temperature range: -20-45℃
Self-check technology LED spot self-check, communications check, power check,
temperature monitor(need customization)
Remote monitoring Remote supervision and control, record potential fault,
send out warning signs to the operators.(need customization)
Software environment WindowsNT,Windows1999,WindowsXP
Luminous point width between centres Deviation<3%
Brightness uniformity <10%
Color uniformity(chromaticity coordinate) ±0.003
Power supply request AC85-264V(50Hz-60Hz)
Contrast (1000:1)
System protection Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration
Humidity(working) working:10-95%
Humidity(storing) storing:10-95%

P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm 0

P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm 1

Various Shaped LED Display


Cylinder LED display, Curved LED display, 90 degrees LED display, Round LED display, LED ball.
LEDFUL supply more design and more solutions.





P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm 2

Our Service

1)Your inquiry related to our products or price will be replied in 24hrs

2)OEM&ODM,any your customized lightings we can help you to design and put into product

3)Distributoership are offered for your unique design and some our current models

4)Protection of your sales area,ideas of design and all your private information

5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win



Trade Terms



1.Payment:T/T,30% deposits before production,70% balance to be paid before dleiverying



2.Shipping freight are quoted under your requests



3.Shipping port:ShenZhen,Mainland China



4.MOQ:1sqm



Certifications



P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm 3

P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm 4

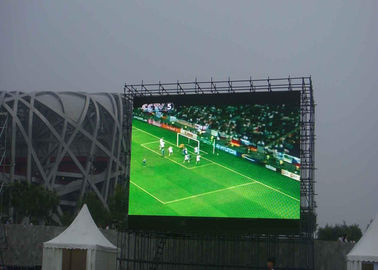

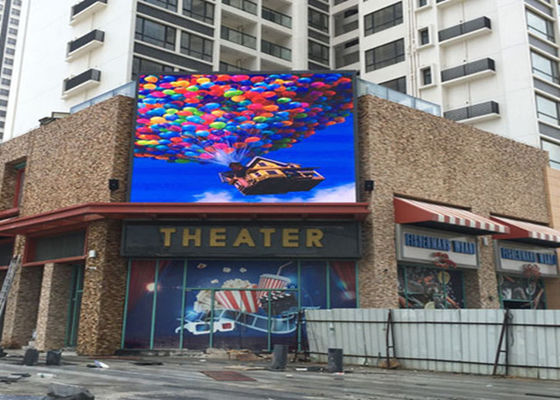

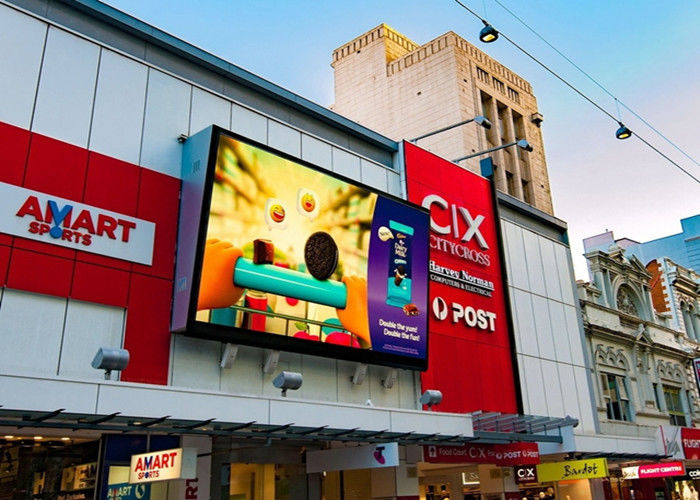

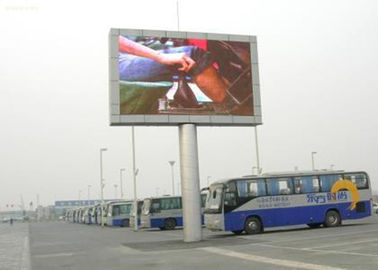

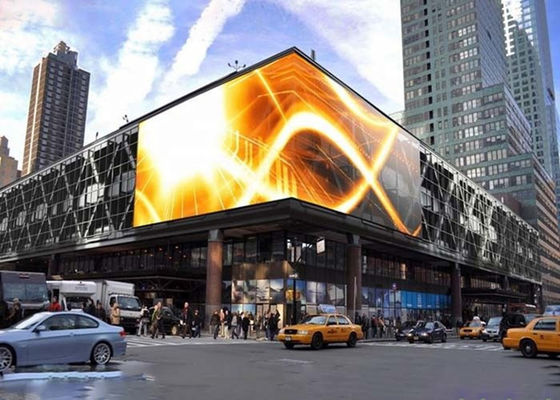

Our Projects

P6 Outdoor Commcercial Advertising LED Video Wall Digital Billboards 192*192mm 5
