Name: P6 Outdoor Full Color LED Advertising Display Screen IP65
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P6
Price: 10000.00 USD
Availability: InStock

Home Products Advertising LED Screens

P6 Outdoor Full Color LED Advertising Display Screen IP65

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	6mm	Tube Chip Color:	Full Color
Led Type:	SMD2727/3535	Display Function:	Video/Text/Image
Waterproof:	IP65	Viewing Angle:	H:160 V:140
Optimal Viewing Distance:	>=6m	Voltage:	DC5V
Relative Humidity:	≤95%RH	Driving Mode:	1/8scan
Highlight:	advertising led display board , outdoor advertising led display

Outdoor Advertising LED Signs P6 Billboards Full Color Digital LED Display Screen

Product Specifications

Attribute	Value
Pixel Pitch	6mm
Tube Chip Color	Full color
LED Type	SMD2727/3535
Display Function	Video/Text/Image
Waterproof	IP65
Viewing Angle	H:160° V:140°
Optimal Viewing Distance	≥6m
Voltage	DC5V
Relative Humidity	≤95%RH
Driving Mode	1/8scan

SCXK P6 High Brightness Outdoor Full Color LED Advertising Display Board

Key Advantages

Professional LED display manufacturer with OEM service and no MOQ
Easy installation with regular items in stock
Free design drawing service available
Remote control and adjustment capabilities
Flexible packaging options (wooden case or flight case)
24-hour customer service response
Fast delivery: 6-8 working days typically
Excellent R&D team providing factory-direct pricing and quality assurance

Production Process

Incoming Inspection
SMD
Plug-in
Wave Soldering
After Welding
Testing
Semi Finished Aging
Module Assembly
Gluing
Finished Aging
Detection Finishing Warehousing

Technical Specifications

Specification	Detail
Resolution	6mm
Pixel Configuration	1R1G1B
Pixel Density	27,778/m²
Module Resolution	32×32
Module Size	192×192mm
View Distance	6-400m
Brightness Adjustment	Single point adjustable
Color Adjustment	Single point adjustable
White Balance Brightness	>4500cd/㎡
Color Temperature	6500K-9500K
Viewing Angles	Horizontal: 120°, Vertical: 60°
Signal Process Bit	10 or 16bit
Grey Process	1024×1024×1024 to 65536×65536×65536
Control Distances	Internet cable: 100m, multimembrane: 500m, monofilm: 2km
Driving Mode	Constant driving current
Scanning Mode	1/8
Frame Rate	60Hz
Refresh Frequency	>1920Hz
Control Mode	Computer synchronous
Brightness Adjustment Range	Manual/automatic, 255 steps with no grey loss
Out of Control Point	<1/10000
Working Hours	≥72 hours
Mean Time Between Failure	>5000 hours
Lifetime	100,000 hours
Life-all-white (brightness halving)	50,000 hours
Operating Temperature	-20°C to 45°C
Power Consumption	Max: <900W/㎡, Avg: <350W/㎡
System Protection	Moistureproof, dustproof, high temperature protection, anti-corrosion, anti-burning, anti-static, anti-vibration

Packaging and Shipping

Wooden case or flight case packaging available. Shipping options include sea, air, or DHL express.

Product Features

Automatic brightness adjustment based on ambient lighting conditions for energy efficiency
High refresh rate and gray scale for realistic, high-quality images
Flexible content management for dynamic advertising
Remote monitoring capability for real-time operation tracking
Scheduled on/off functionality for unattended operation

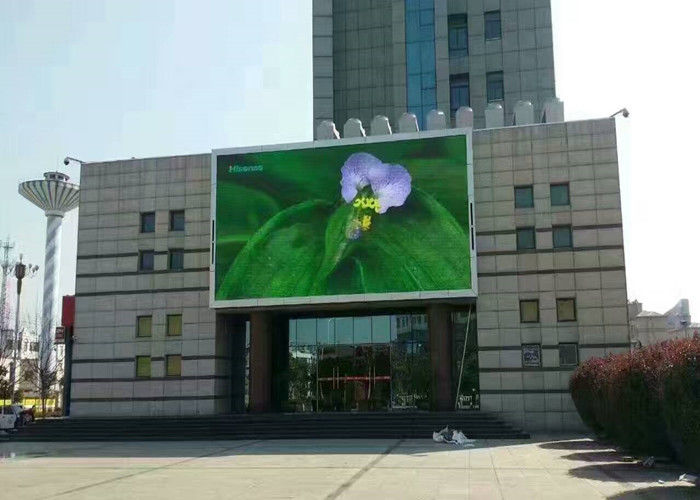

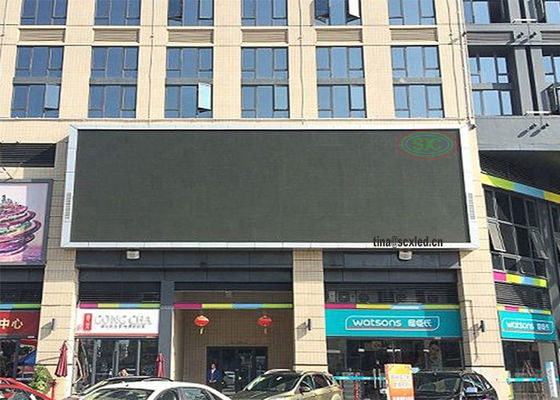

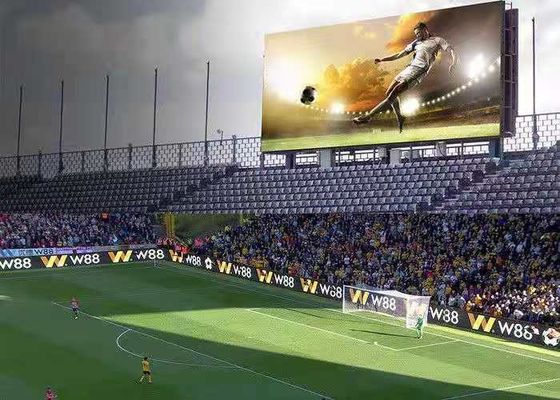

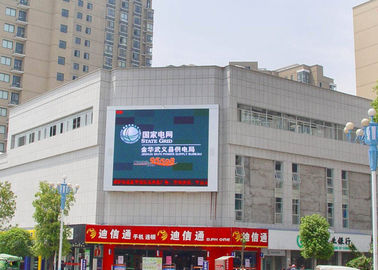

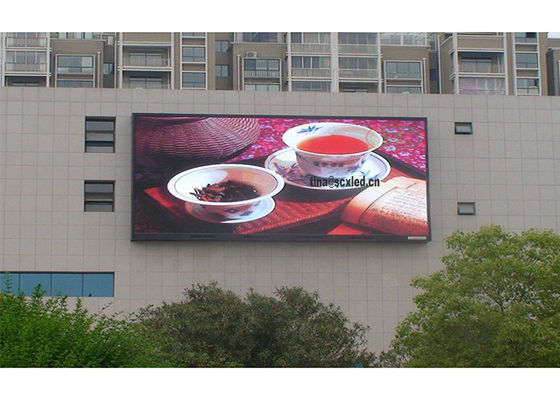

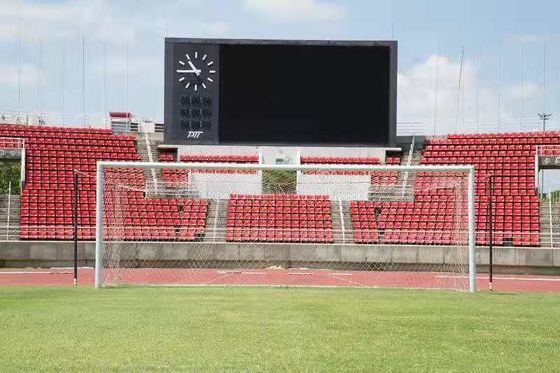

Project Example
