SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC
SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC
SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P8
Payment & Shipping Terms:
Minimum Order Quantity: 5 sqm
Price: 300USD~850USD
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 8mm Product Name: Stadium Permeter LED Screen
Cabinet Material: Die- Catsing Aluminum / Iron Certificate: CE,FCC,ROHS, CB,ISO
Waterproof: IP65 Chip Brand: Epistar Led
Pixel Density: 15625 Dots /m2
High Light:

SMD3535 Stadium Perimeter LED Screen

,

300W/M2 Stadium Perimeter LED Screen

,

FCC Football Stadium Led Display

Outdoor P10 P8 P6 Football Basketball Stadium Perimeter LED Screen Display Full Color LED Pantalla







Specification



Pixel Pitch
P8
Pixel Configuration
SMD3535
Density (Pixels/㎡)
15,625
Module Resolution (Pixel)
40x20
Module Size (mm)
320x160
Driving Mode (Duty)
1/5
Cabinet Size (mm)
960x960
Cabinet Weight (KG)
28.5
Brightness (CD/㎡)
≥6,500
Viewing Angle (°)
H:160 V:140
Gray Grade (Bits)
14
Operation Power
AC100-240V 50-60Hz
Max. Power Consumption (W/㎡)
550
Avg. Power Consumption (W/㎡)
300
Frame Frequency (Hz)
≥60
Refresh Frequency (Hz)
≥3,840
Working Temperature (ºC)
-20~+60
Lifetime (Hours)
100,000
Protecting Grade
IP65(front),IP54(rear)



Product Details of Stadium Perimeter LED Screen



1.High refresh rate, no flicker during live switch



Up to 3800Hz refresh rate,without the phenomenon of drag and flicker under the shooting conditions of professional cameras andcameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality.



SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 0SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 1

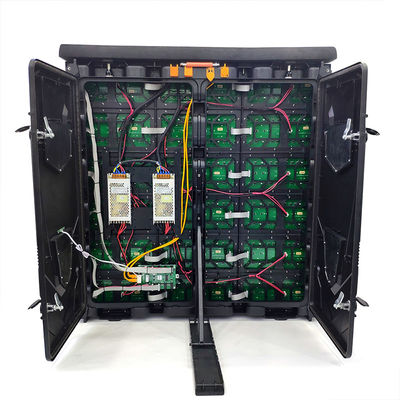

2.320MMX160MM standard size modules



960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance. Also it is very convenient when you change the pixel pitch such as P5mm P8mm and P10mm. You dont need to change anything, just change the module as they have the same module size and structure.

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 2

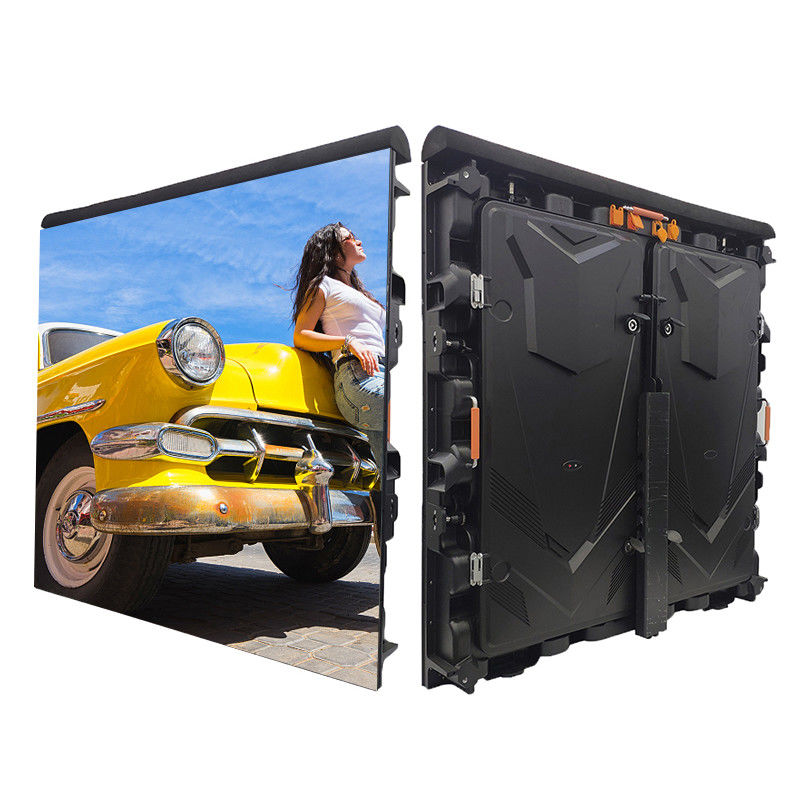

3.Exquisite cabinet design features



960mm Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 3

4.Independent support structure



There is an independent support structure that can be rotated and adjusted, and it can still stand even when subjected to a strong external impact. The installation angle of the cabinet can be adjusted according to the actual site conditions, and the angle can be flexibly changed. It supports 60 ° / 65 ° / 70 °/ 75 °/ 80 °/ 85 °/ 90 ° multi-angle adjustment.

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 4

5.Soft mask design



The soft surface and unique soft protective pad can protect people’s safety, even if someone hits the LED screen, it is very effective to protect people’s safety.

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 5

6.Ultra light weight cabinet



Outdoor stadium 960 series LED display weighs only 28.5kg, is easy to transport, saves your labor costs, and is lightweight, easy to install, assemble and disassemble.

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 6

7.With waterproof performance



Outdoor stadium LED display has a special air inlet, a waterproof structure, excellent water resistance, can achieve the effect of heat dissipation design and absolutely quiet operation.

SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 7



8.IP65 protection level



All-weather for outdoor environment. With unique protection technology to make the display reache the level of IP65, which can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady.



SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 8SMD3535 300W/M2 Stadium Perimeter LED Screen Outdoor P10 P8 P6 FCC 9




♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.
