Full Color Outdoor Waterproof P10 RGB Stadium LED Display Screen Fixed Installed
Product Specifications
| Attribute |
Value |
| Pixel Pitch |
10mm |
| Led Type |
SMD 3535 |
| Display Function |
Video/Text/Image |
| Waterproof |
IP65 |
| Cabinet |
Iron or Aluminum For Options |
| Frame Frequency |
>=60HZ |
| Average NO Failure |
>=1000hours |
| Dot Density |
10000dots/ sqm |
| Viewing Angle |
160/140 |
| Brightness |
more than 5000cd/m2 |
Football Club Stadium P10 Digital Big LED Video Wall Billboard Basketball Stadium Sports Score Board
Technical Specifications
Pitch size: 10mm
Module size: 320mm*160mm
Panel pixel(dots): 32*16
Pixel configuration: 1Red,1Green,1Blue
Color scale: 256-65536grade/16777216colors
Pixel density: 10000 pixels/square meter
View angle(H/V): 160/120 degree
Brightness: ≥6500cd/square meter
View distance: 10-300m
Power consumption: 100-1200W/square meter
Net weight: 8kg/pcs
Operating temperature: -25°C~+60°C
Operating humidity: 10%--95%RH
Life time: ≥100,000hours
Exchange frame speed: >150frames per second
Refresh frame frequency: 1920-3840Hz
Control distance: 100m (without relay),single mode fiber: 20000m, multi mode fiber:500m-20km
Power: 110V/220V/380V±15% 50Hz
Operating system: Windows98/Me/2000/Xp
Drive mode: constant current driving
Display mode: VGA640X480--VGA1600X1024
Protections for outdoor display: IP65
Accepting signal: PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
Key Features of Stadium Perimeter LED Screen
- High refresh rate: Up to 3800Hz refresh rate ensures flicker-free performance under professional camera conditions
- Standard size modules: 320mm×160mm panels for easy assembly, maintenance and pitch changes

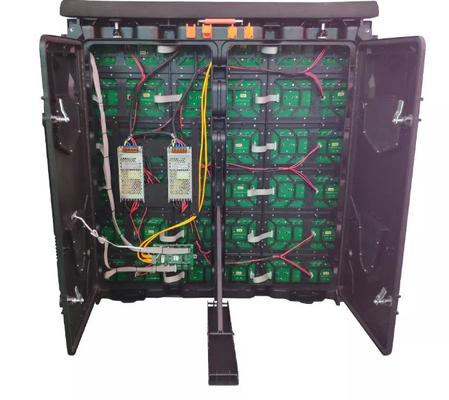

- Exquisite cabinet design: Lightweight with quick locks and humanization handlebar for easy installation
- Independent support structure: Adjustable installation angles from 60° to 90° for flexible positioning
- Soft mask design: Protective padding ensures safety for players and spectators
- Ultra lightweight: Only 28.5kg cabinet weight reduces transportation and installation costs
- Waterproof performance: Special air inlet and waterproof structure with excellent water resistance
- IP65 protection: All-weather durability with anti-ultraviolet and steady performance
Packaging and Shipping
Wooden case or flight case package available. Shipping options include sea, air or DHL express.
Customer Support
Our professional team provides comprehensive technical support and service for all installations.
