P10 SMD Outdoor Stadium LED Display 10mm Pitch IP65 Waterproof

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	6 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	10mm	Tube Chip Color:	Full Color
Led Type:	SMD 3535	Display Function:	Video/Text/Image
Waterproof:	IP65	Frame Frequency:	>=60HZ
Dot Density:	10000	Brightness:	>=5000cd/m2
Highlight:	P10 SMD Stadium LED Display , Outdoor Waterproof Stadium LED Display , Full Color Stadium LED Display

Outdoor Waterproof Full Color P10 SMD Football Stadium Perimeter LED Display Screen

Outdoor P10 Football Basketball Stadium Perimeter LED Screen Display Full Color LED Pantalla

Specification

Parameter	Value
Pitch size	10mm
Module size	320mm*160mm
Panel pixel(dots)	32*16
Pixel configuration	1Red/1Green/1Blue
Color scale	256-65536grade/16777216colors
Pixel density	10000 pixels/square meter
View angle(H/V)	160/120 degree
Brightness	≥5500cd/square meter
View distance	≥10m
Power consumption	100-1200W/square meter
Net weight	28.5kg/pcs
Operating temperature	-25°C~+60°C
Operating humidity	10%--95%RH
Life time	≥100,000hours
Exchange frame speed	>150frames per second
Refresh frame frequency	1920-3840Hz
Control distance	100m (without relay),single mode fiber: 20000m,multi mode fiber:500m-20km
Power	110V/220V/380V±15% 50Hz
Operating system	Windows98/Me/2000/Xp
Drive mode	constant current driving
Display mode	VGA640X480--VGA1600X1024
Protections for outdoor display	IP65
Accepting signal	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

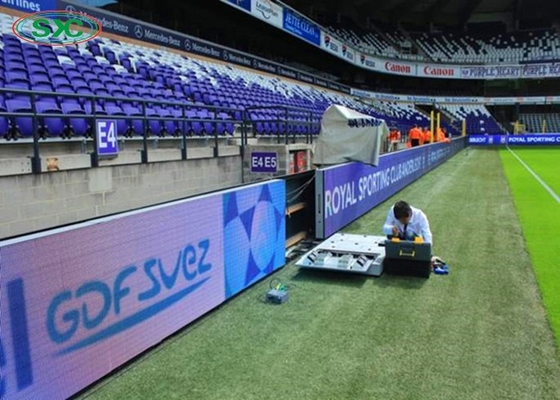

Product Details of Stadium Perimeter LED Screen

1. High refresh rate, no flicker during live switch

Up to 3800Hz refresh rate ensures a fine high-definition display without flicker under professional camera conditions (1/2800 seconds), guaranteeing ultra high-definition image quality.
2. 320MMX160MM standard size modules

960mm Series LED display features standard size panels (320*160mm) for quick assembling, maintenance, and easy pixel pitch changes (P5mm, P8mm, P10mm) without structural modifications.
3. Exquisite cabinet design features

Lightweight design with quick locks, delicate structure for easy installation without gaps, and humanization handlebar for convenient movement.
4. Independent support structure

Rotatable and adjustable support structure that remains stable under impact, with flexible angle adjustment (60°-90° range) to suit various site conditions.
5. Soft mask design

Soft surface with protective pads ensures safety for people who might come into contact with the display.
6. Ultra light weight cabinet

Weighing only 28.5kg for easy transport, installation, and labor cost savings.
7. Waterproof performance

Special air inlet and waterproof structure provide excellent water resistance while maintaining effective heat dissipation and quiet operation.
8. IP65 protection level

All-weather protection with anti-ultraviolet technology ensures durability and reliability in any outdoor conditions.
