Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Shenzhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL/CB |
| Model Number: | P10 |
| Minimum Order Quantity: | 6 sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000 sqm per month |
| Pixels: | 10mm | Tube Chip Color: | Full Color |
|---|---|---|---|
| Led Type: | SMD3535 | Display Function: | Video/Image |
| Cabinet: | Iron Or Die-casting Aluminum | Frame Frequency: | >=60HZ |
| Average NO Failure: | >=1000hours | Refresh Rate: | >=180HZ |
| Module Size: | *160mm | Cabinet Size: | 960*960mm |
| Module Resolution: | 32*16 | Module Style: | 1/4 Scan |
| Highlight: | led display smd,outdoor smd led display |
||
SMD3535 P10 Outdoor Full Color Led Display Waterproof 1/4 Scan 960*960mm
P10 SMD LED Screen Applications
Stage,Sports,advertising,traffic,events,stadium,shopping center,airport,exhibitions, car shows, fashion shows, concerts, ceremonies, entertainment,etc.
P10 SMD LED Screen Module Specification
| Color type | Real full color |
| Module size | 320*160mm |
| Pixel led | SMD3535 |
| Resolution rate | 32*16 |
| Driving IC | MBI5024 |
| Working voltage | DC5V |
| Power | 200W |
| Working temperature | -20°C - +50°C |
Screen Specification
| Item | Model |
| Material | Iron/Die-casting aluminum |
| Color | Full Color |
| Size | 960*960mm |
| Resolution rate | 96*96 |
| Module quantity | 4*6 |
| Density | 10000dots/m2 |
| White balance luminance | ≥5000cd/m2 |
| Color temperature | 6500 |
| Horizontal view angel | 110 |
| Vertical view angel | 50 |
| Protection grade | Before/after: IP65/IP43 |
| Non-Flatness | 1mm |
| Module interval | 1mm |
| Weight | 32kg |
| Maximal power/m2 | 600W |
| Frame frequency | ≥60Hz/s |
| Refresh frequency | ≥300Hz/s |
| Gray grade | 16777216 |
| Luminance adjusted | 256 grade by hand&8 grade by auto-optic/color |
| Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| Control system | PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmisson(Optional) |
| MTBF | >5000h |
| Life-span | >100000h |
| Speckles rate | <0.0002 |

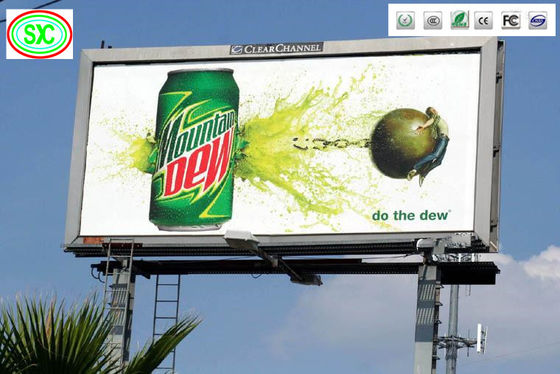

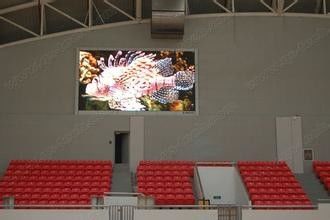

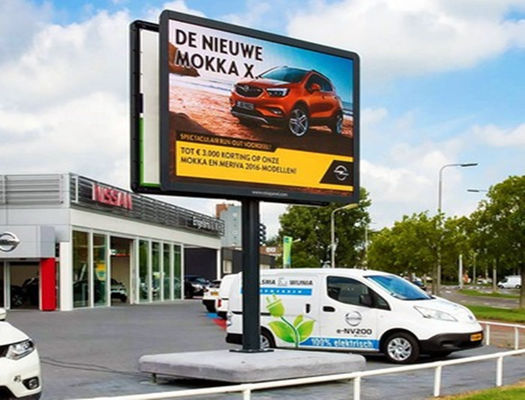

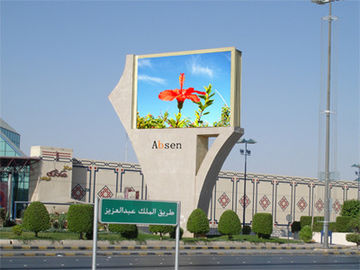

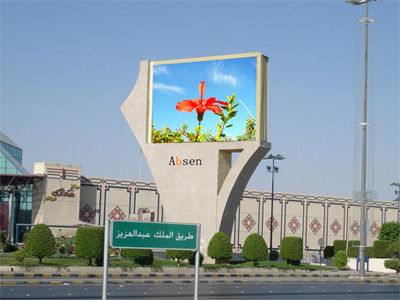

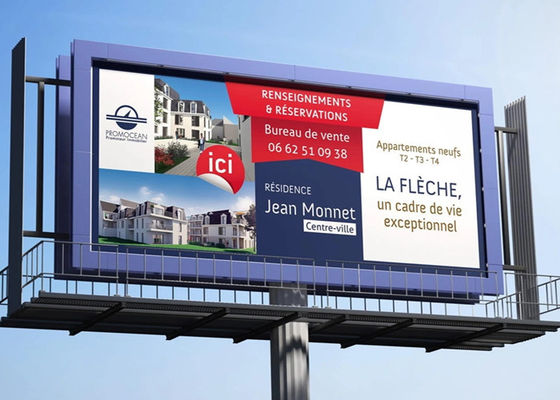

Applications
--- Outdoor and indoor advertising, digital billboards, advertising companies
--- Sports halls, fields, playgrounds,school church
--- Airports, bus stations and railway passenger terminals.
--- Facades of shopping malls, department stores, banks and car dealerships.
--- Architecture and social projects, information systems in cities.
--- Show-business, concerts, festivals, motor shows and other public events.
Continues Quality
With more than 10 years experience in led display producing,equipments are updated regularly. What’s more, unique standardized and module production ensure our products continuous quality.
Competitive Price
With large scale production capacity and professional production technology,our company have built effective modular production.We always stick to promote the technical innovation and reduce cost to benefit customers.
Fast Delivery
Once we promise the delivery date,we will try our best to fulfill it.Special procedures such as emergency inventory will be used to maintain your uninterrupted supply of the products.
Perfect Service
Pre-sales:Your purchasing requirements will be highly valued and we’ll recommend suitable products to you.
After-sales:We will track the products usage and then constantly perfect our products.
Packing:
Flight case and carton case.
Contact Person: Susan_zhang
Tel: +8618344159301
