Name: P10 SMD LED Screen 10mm Pitch 3 Years Warranty
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Home Products SMD LED Screen

P10 SMD LED Screen 10mm Pitch 3 Years Warranty

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL/CB
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	2sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	Western Union,MoneyGram,D/P,T/T,L/C
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	Led Type:	SMD3535
Display Function:	Video/Image	Cabinet:	Die-casting Aluminum/iron
Cabinet Size:	320mm*160mm	Working Voltage:	DC5V
Warranty Time:	3 Years	Dot Density:	10000
Driving Mode:	1/4 Scaning	Certificates:	CE,RoHs,FCC,ISO
Piexl Dots:	32*16	Screen Size:	960*960mm
Highlight:	led display smd , smd led display

Slim Outdoor Full Color P10 P6 P8 SMD LED Screen Rental with 3 Years Warranty

Product Specifications

Attribute	Value
Pixels	10mm
Led Type	SMD3535
Display Function	Video/Image
Cabinet	Die-casting aluminum/iron
Cabinet Size	320mm*160mm
Working Voltage	DC5V
Warranty Time	3 years
Dot Density	10000
Driving Mode	1/4 scaning
Certificates	CE, RoHs, FCC, ISO
Pixel Dots	32*16
Screen Size	960*960mm

Premium Features

LED: International brand components with wide viewing angle, high brightness, minimal attenuation, excellent heat dissipation, and vivid colors
Driving IC: Premium brands including Taiwan MBI and Japanese Toshiba to prevent dark bright or virtual light defects
Power Supply: Industrial-strength with 20% maximum power reserve and less than 5% voltage fluctuation
Connector: Aerospace-grade brands ensure stable power and signal transmission
PCB Board: Advanced 4-layer design
Easy Installation: 100 cabinets can be installed in one hour by one person; cabinet replacement takes under 50 seconds

Technical Specifications

Module	P6.67	P8	P10
Module size (mm)	320x160	320x160	320x160
Density of pixel (dots/m²)	22,478	15,625	10,000
LED encapsulation	SMD3535	SMD3535	SMD3535
Resolution of module	48X24	40X20	32X16
Optimum viewing distance	6.67-155m	8-185m	10-200m
View angle (°)	140 H,120 V	140 H,120 V	110H,60V
Max power consumption (W/M²)	1100	1000	1000
Size of cabinet (mm)	640X640	640X640	640X640
Resolution of cabinet	96x96	80x80	64x64
Weight of cabinet (kg)	15	15	15
Driving method	1/8 scan constant current	1/4 scan constant current	1/4 scan constant current
Refresh rate (Hz/S)	≥2000	≥2000	≥2000
Luminance of white balance (nits)	≥5000	≥6000	≥5500

Additional Specifications

Operation Temperature: -30°C to +50°C

Working Voltage: 110-220 VAC ±10%

Grey Scale/Color: Displays ≥16.7M colors (synchronized)

Brightness Adjustment: 256 manual levels per color, 100 automatic levels per color

Input Signal: RF, S-Video, RGB, RGBH, YUV, YC & Composition, etc.

Control System: Linsn (sending card, receiving cards and Hubs)

MTBF: >50,000 hours

Life Span: >100,000 hours

Defect Dot Rate: <0.0001

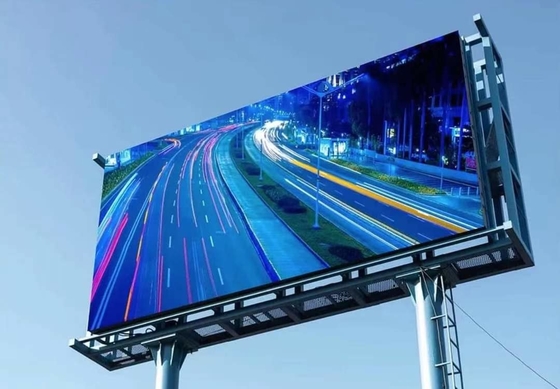

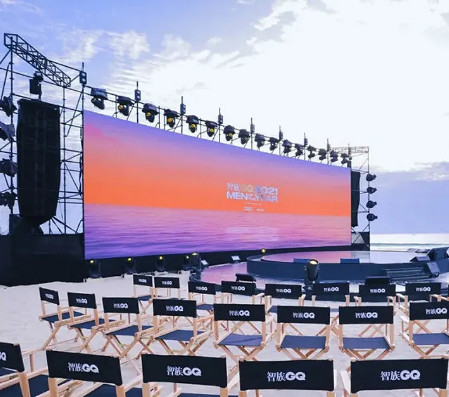

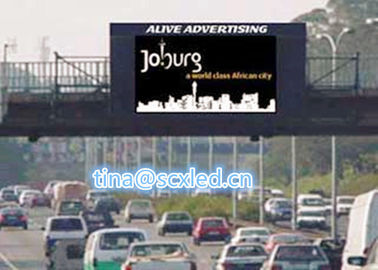

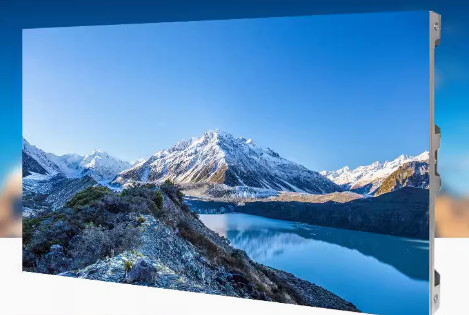

Product Images

Customer Support & Warranty

Guidance Service: Online support for installation and usage; for large projects, we provide one week of free training or on-site guidance (customer bears relevant costs)
Warranty Period: 3 years after shipment
Maintenance Principles: Timely response and problem resolution
Maintenance Terms: Free maintenance during warranty period; after warranty, only material costs are charged

About Our Company

SCXK has specialized in LED technology since 2005. As a leading manufacturer based in Shenzhen, China, we provide comprehensive technical solutions for full-color indoor and outdoor LED displays, rental LED displays, and LED modules.
