Shenzhen Shichuangxinke Electronics Co.,Ltd
professional makes good quality, provide perfect product and service for every customer.
 |
| Place of Origin: | Shenzhen in China |
| Brand Name: | SCXK |
| Certification: | CE/ROHS/FCC/ISO/UL/CB |
| Model Number: | P10 |
| Minimum Order Quantity: | 2sqm |
|---|---|
| Price: | negotiation |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Delivery Time: | 7-10 working days after receive your payment |
| Payment Terms: | Western Union, MoneyGram, D/P, T/T, L/C |
| Supply Ability: | 5000sqm per month |
| Pixels: | 10mm | Led Type: | SMD3535 |
|---|---|---|---|
| Display Function: | Video/Image | Cabinet: | Die-casting Aluminum/iron |
| Cabinet Size: | 320mm*160mm | Working Voltage: | DC5V |
| Warranty Time: | 3 Years | Dot Density: | 10000 |
| Driving Mode: | 1/4 Scaning | Certificates: | CE,RoHs,FCC,ISO |
| Piexl Dots: | 32*16 | Screen Size: | 960*960mm |
| Highlight: | led display smd,smd led display |
||
Slim 32*16 P10 P6 P8 SMD LED Screen rental 1/4 scaning 3 years warranty
Famous Brands Raw Material Selection
1)LED: well-known international brand, with wide viewing angle, high brightness, little attenuation,
good heat dissipation, and vivid colors.
2) Driving IC: famous brands such as, Taiwan MBI, Japanese Toshiba, avoidable the defective phenomena, such as dark bright, virtual light and so on.
3) Power supply: industrial-strength brand. The power t maximum power reserve of 20% the space,
the range of voltage fluctuation is less 5%, high stability.
4) Connector: Aerial grade brands ensure the stable transmission of power and signal.
5) PCB Board: adopt 4-layer design.
6) Easy installation:100 pieces of cabinets' installation can be finished in one hour by one person.
The replacement of any cabinet can be done within 50 seconds.
Specification of Outdoor LED Screen
|
Outdoor Die casting Aluminum 640mm Rental LED Displays |
||||
|
Module |
Pitch/mm |
P6.67 |
P8 |
P10 |
|
Module size/mm |
320x160 |
320x160 |
320x160 |
|
|
Density of pixel/(dots/m2) |
22,478 |
15,625 |
10,000 |
|
|
Led encapsulation |
SMD3535 |
SMD3535 |
SMD3535 |
|
|
Resolution of module |
48X24 |
40X20 |
32X16 |
|
|
Main |
Optimum viewing distance |
6.67-155m |
8-185m |
10-200m |
|
View angle / ° |
140 H,120 V |
140 H,120 V |
110H,60V |
|
|
Max power consumption/W/M2 |
1100 |
1000 |
1000 |
|
|
Size of cabinet/mm |
640X640 |
640X640 |
640X640 |
|
|
Resolution of cabinet |
96x96 |
80x80 |
64x64 |
|
|
Weight of cabinet/kg |
15 |
15 |
15 |
|
|
Driving method |
1/8 scan constant current |
1/4 scan constant current |
1/4 scan constant current |
|
|
Refresh rate Hz/S |
≥2000 |
≥2000 |
≥2000 |
|
|
Luminance of white balance |
≥5000 nits |
≥6000 nits |
≥5500 nits |
|
|
Operation of Environmental Temperature/°C |
below 30 to above 50 |
|||
|
Working vlotage |
110-220 VAC/+/- 10% |
|||
|
Grey scale/color |
displaying colors≥16.7M(synchronized) |
|||
|
Brightness adjustment |
256 levels of each color(manually),100 levels of each color(automatically) |
|||
|
Input signal |
RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc |
|||
|
Control system |
linsn(sending card,receiving cards and Hubs) |
|||
|
Average of non-failure life |
>50,00h |
|||
|
Life span |
>100,000h |
|||
|
Defect dot rate |
<0.0001 |
|||

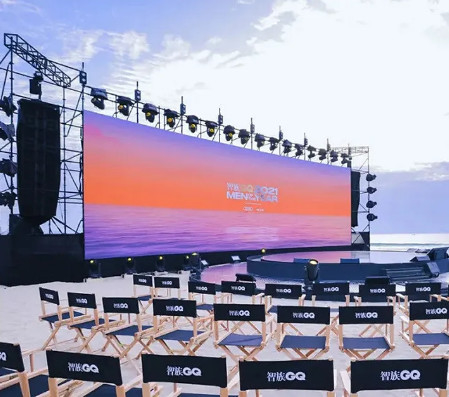

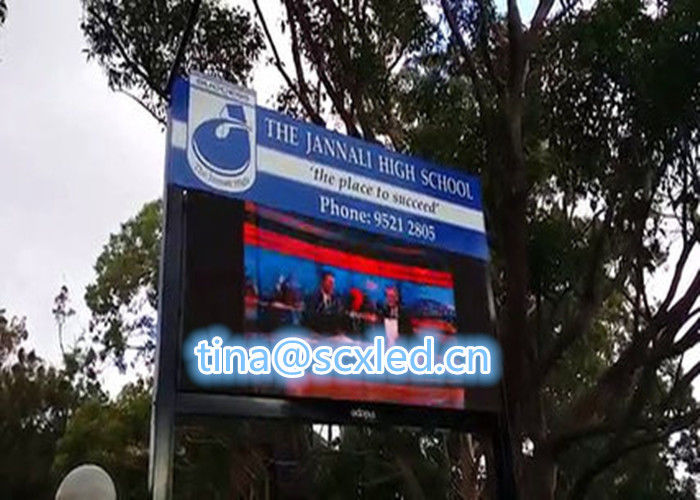

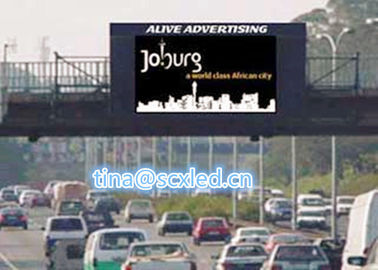

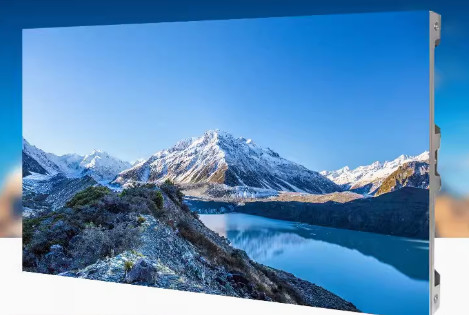

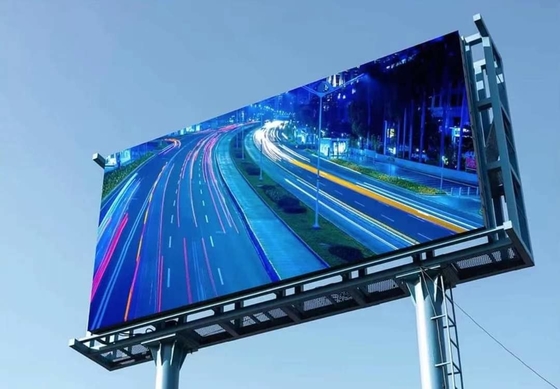

Screen shown:
Our Services
1) Guidance service: We can guide on line if customers have questions about the installation and usage.
For large project, we provide your engineer a week free training, or if customer could bear the relevant cost, our engineer can go to customer’s country for on-site guidance.
2) Warranty period: 2 years after shipment.
3) Maintenance principles: response in time, solve problems as soon as possible and ensure the use.
4) Maintenance terms: In the Maintenance period, free of all maintenance charges.
Under normal use and storage, our company will be responsible for the equipments.
If there is any failure in product quality, our company will maintain and change the components for free.
After Maintenance period, only charge the material costs fees free of manual work fees.
