China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price
China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price
China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price
Product Details:
Place of Origin: ShenZhen in China
Brand Name: SCXK
Certification: CE/ROHS/FCC/ISO/CB
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: negotiation
Packaging Details: flight case, wooden case, carton, it is up to you.
Delivery Time: 7-10 working days after receive your payment
Payment Terms: T/T, Western Union
Supply Ability: 5000sqm per month
Contact Now
Detailed Product Description
Pixel Pitch: 10mm Tube Chip Color: Full Color
Led Type: SMD 3528 Display Function: Video/Text/Image
Waterproof: IP65 Cabinet: Steel Or Aluminum For Options
Frame Frequency: >=60HZ Average NO Failure: >=1000hours
Certificates: CE,RoHs,FCC,ISO, CB Dot Density: 10000
Viewing Angle: 160/140 Brightness: >=5000cd/m2
High Light:

perimeter led screen

,

led perimeter advertising boards

Outdoor P10 P8 P6 Football Basketball Stadium Perimeter LED Screen Display Full Color LED Pantalla





Specification



Pitch size 10mm
Module size 320mm*160mm
Panel pixel(dots) 32*16
Pixel configuration 1Red,1Green,1Blue
Color scale 256-65536grade/16777216colors
Pixel density 10000 pixels/square meter
View angle(H/V) 160/120 degree
Brightness ≥6500cd/square meter
View distance 5-150m
Power consumption 100-1200W/square meter
Net weight 28.5kg/pcs
Operating temperature —25°C~+60°C
Operating humidity 10%—95%RH
Life time ≥100,000hours
Exchange frame speed >150frames per second
Refresh frame frequency 1920-3840Hz
Control distance 100m (without relay),single mode fiber:
20000m,multi mode fiber:500m-20km
Power 110V/220V/380V±15% 50Hz
operating system Windows98/Me/2000/Xp
Drive mode constant current driving
display mode VGA640X480—VGA1600X1024
Protections for outdoor display IP65
Accepting signal PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI

Product Details of Stadium Perimeter LED Screen



1.High refresh rate, no flicker during live switch



Up to 3800Hz refresh rate,without the phenomenon of drag and flicker under the shooting conditions of professional cameras andcameras of 1/2800 seconds,which ensures a fine high-definition display screen.to ensure the ultra high-defination image quality.



China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 0China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 1

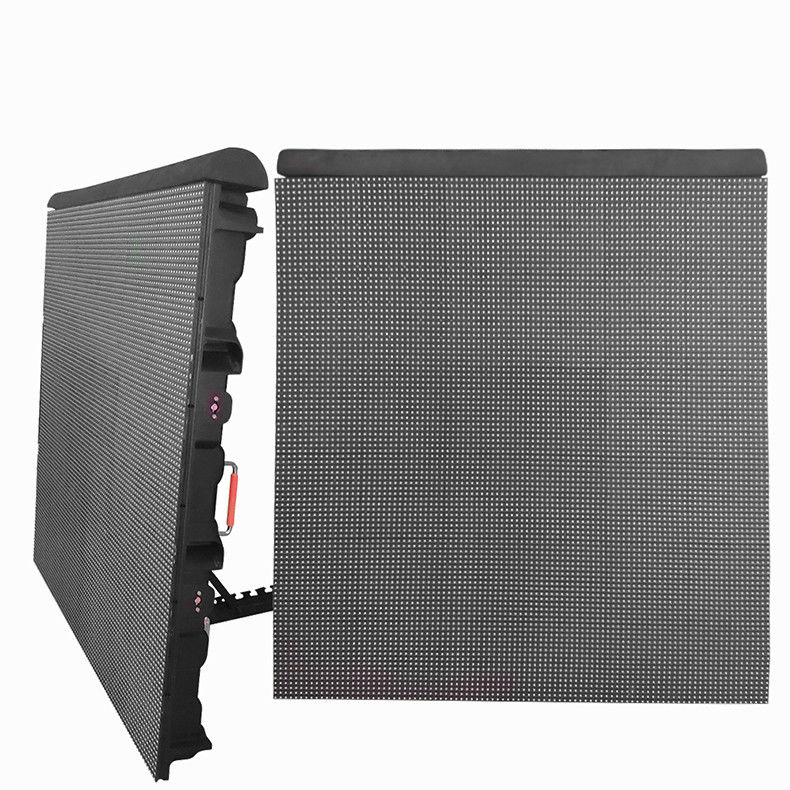

2.320MMX160MM standard size modules



960mm Series LED display with standard size panel: 320*160mm. Pay more attention to the standard led screen display performance, the Quick Assembling and Maintenance. Also it is very convenient when you change the pixel pitch such as P5mm P8mm and P10mm. You dont need to change anything, just change the module as they have the same module size and structure.

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 2

3.Exquisite cabinet design features



960mm Series LED display Product is Less weight led display with quick locks, delicate structure for easy installation without Gaps. Humanization handlebar design make you more easy to move the cabinet.

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 3

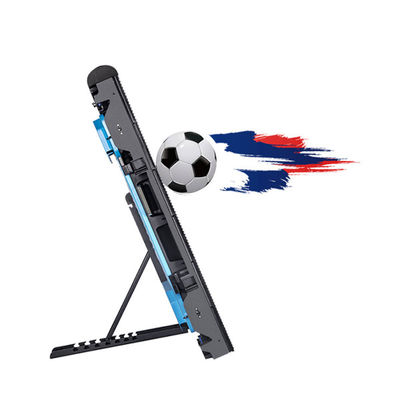

4.Independent support structure



There is an independent support structure that can be rotated and adjusted, and it can still stand even when subjected to a strong external impact. The installation angle of the cabinet can be adjusted according to the actual site conditions, and the angle can be flexibly changed. It supports 60 ° / 65 ° / 70 °/ 75 °/ 80 °/ 85 °/ 90 ° multi-angle adjustment.

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 4

5.Soft mask design



The soft surface and unique soft protective pad can protect people’s safety, even if someone hits the LED screen, it is very effective to protect people’s safety.

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 5

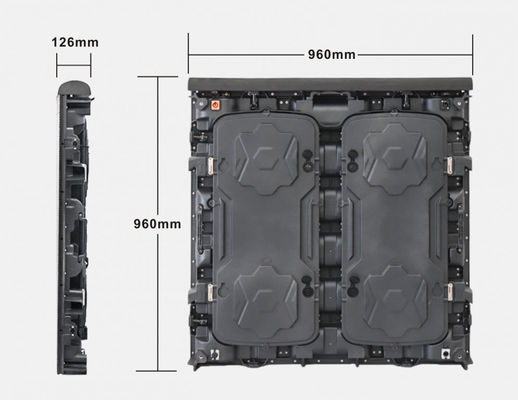

6.Ultra light weight cabinet



Outdoor stadium 960 series LED display weighs only 28.5kg, is easy to transport, saves your labor costs, and is lightweight, easy to install, assemble and disassemble.

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 6

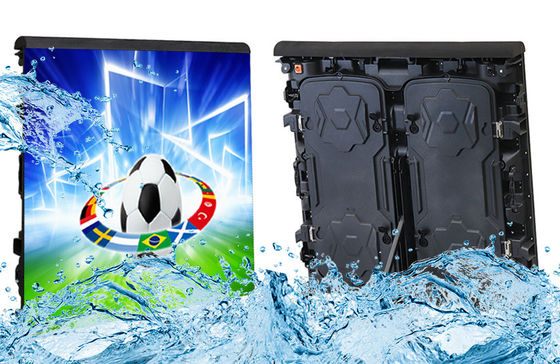

7.With waterproof performance



Outdoor stadium LED display has a special air inlet, a waterproof structure, excellent water resistance, can achieve the effect of heat dissipation design and absolutely quiet operation.

China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 7



8.IP65 protection level



All-weather for outdoor environment. With unique protection technology to make the display reache the level of IP65, which can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady.



China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 8China Outdoor RGB Full Color P5 P10 SMD Commercial Advertising Football Stadium Perimeter LED Display Screen Price 9




♦ Packaging and shipping



Wooden case or flight case package are available.

Shipping by sea,air or DHL,multiple shipping ways for your choice.



♦ Contact



Sales Engineer Manager:Tina LI
Whatsapp: 0086-131-7786-2801



Our team will be forever here to offer you full supports !!!
