Name: P5mm Outdoor Stadium LED Display SMD 2121 IP65 Waterproof
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P5
Price: 10000.00 USD
Availability: InStock

Home Products Stadium LED Display

P5mm Outdoor Stadium LED Display SMD 2121 IP65 Waterproof

Product Details:

Place of Origin:	ShenZhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P5

Payment & Shipping Terms:

Minimum Order Quantity:	3 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Tube Chip Color:	Full Color
Led Type:	SMD 2121	Display Function:	Video/Text/Image
Cabinet:	Die-casting Aluminum/iron	Frame Frequency:	>=60HZ
Certificates:	CE,RoHs,FCC,ISO, CB	Dot Density:	40000 Dots/ Sqm
Viewing Angle:	140/120
Highlight:	perimeter led display , perimeter led screen

Outdoor Football Stadium P5 Digital Big LED Display Video Wall Billboard

Product Attributes

Attribute	Value
Pixel Pitch	5mm
Tube Chip Color	Full color
Led Type	SMD 2121
Display Function	Video/Text/Image
Cabinet	die-casting aluminum/iron
Frame Frequency	>=60HZ
Certificates	CE,RoHs,FCC,ISO, CB
Dot density	40000 dots/ sqm
Viewing angle	140/120

Technical Specifications

Parameter	Value
Pitch size	5mm

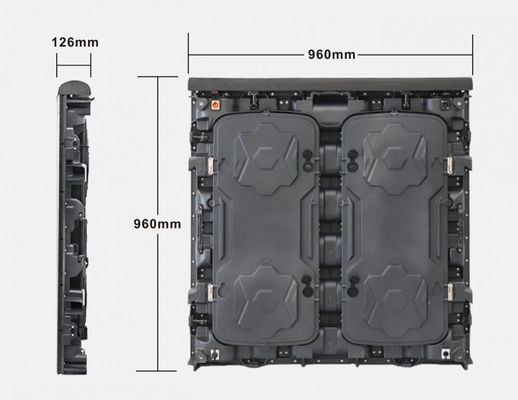

Module size	320mm*160mm
Panel pixel(dots)	64*32
Pixel configuration	1Red,1Green,1Blue
Color scale	256-65536grade/16777216colors
Pixel density	40000 pixels/square meter
View angle(H/V)	160/120 degree
Brightness	≥ 6500cd/square meter
View distance	5-150m
Power consumption	100-1200W/square meter
Net weight	8kg/pcs
Operating temperature	-25°C~+60°C
Operating humidity	10% --95%RH
Life time	≥ 100,000hours

Key Features

High refresh rate (3800Hz): No flicker during live switching, ensuring high-definition display quality
Standard 320mm×160mm modules: Easy assembly, maintenance, and pixel pitch changes
Exquisite cabinet design: Lightweight with quick locks and humanized handlebar for easy installation
Independent support structure: Adjustable installation angles (60°-90°) for flexible positioning
Soft mask design: Protective padding enhances safety for players and spectators
Ultra-lightweight cabinet: Only 28.5kg for easy transportation and installation
IP65 waterproof rating: All-weather performance with excellent water resistance
Advanced thermal management: Special air inlet design for effective heat dissipation
