High Quality P10 Full Color Outdoor Waterproof Football Stadium LED Screen Display
Product Attributes
| Attribute |
Value |
| Pixels |
10mm |
| Tube Chip Color |
Full color |
| Led Type |
SMD |
| Display Function |
Video/Photos |
| Waterproof |
IP65 |
| Frame Frequency |
>=60HZ |
| Average NO Failure |
>=1000hours |
| Dot Density |
10000 |
| Viewing angle |
120° degree Horizontal & 60° degree Vertical |
| Brightness |
more than 5000cd/m2 |
Football Club Stadium P10 Digital LED Video Wall Billboard
Professional LED display solution for basketball stadiums and sports score boards.
Specification
| Pitch size |
10mm |
| Module size |
320mm*160mm |
| Panel pixel(dots) |
32*16 |
| Pixel configuration |
1Red,1Green,1Blue |
| Color scale |
256-65536grade/16777216colors |
| Pixel density |
10000 pixels/square meter |
| View angle(H/V) |
160/120 degree |
| Brightness |
≥5000cd/square meter |
| View distance |
≥10m |
| Power consumption |
100-1200W/square meter |
| Net weight |
8kg/pcs |
| Operating temperature |
-25°C~+60°C |
| Operating humidity |
10%--95%RH |
| Life time |
≥100,000hours |
| Exchange frame speed |
>150frames per second |
| Refresh frame frequency |
1920-3840Hz |
| Control distance |
100m (without relay),single mode fiber: 20000m,multi mode fiber:500m-20km |
| Power |
110V/220V/380V±15% 50Hz |
| Operating system |
Windows98/Me/2000/Xp |
| Drive mode |
constant current driving |
| Display mode |
VGA640X480--VGA1600X1024 |
| Protections for outdoor display |
IP65 |
| Accepting signal |
PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Stadium Perimeter LED Screen Features
1. High Refresh Rate
Up to 3800Hz refresh rate ensures no flicker during live switch, even under professional camera conditions of 1/2800 seconds, guaranteeing ultra high-definition image quality.
2. Standard Size Modules (320mm×160mm)
960mm Series LED display features standard size panels for quick assembling and maintenance. Easily change pixel pitch (P5mm, P8mm, P10mm) without structural modifications.
3. Exquisite Cabinet Design
Lightweight design with quick locks and humanization handlebar for easy installation and movement. Delicate structure ensures gap-free assembly.

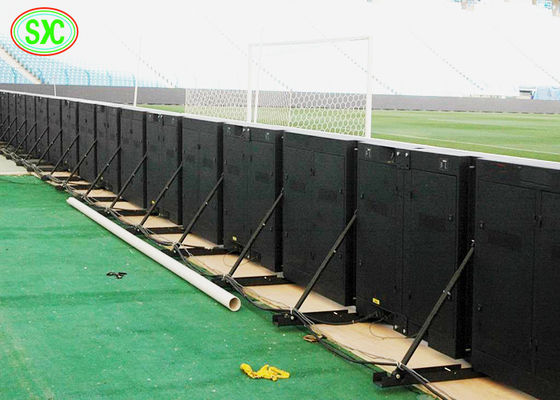

4. Independent Support Structure
Rotatable and adjustable structure withstands strong impacts. Supports 60°-90° multi-angle adjustment to adapt to various installation conditions.
5. Soft Mask Design
Unique soft protective pad enhances safety, effectively protecting people from injury upon impact with the LED screen.
6. Ultra Light Weight Cabinet
Outdoor stadium 960 series weighs only 28.5kg, reducing transportation and labor costs while maintaining easy installation.
7. Waterproof Performance
Special air inlet and waterproof structure provide excellent water resistance while maintaining effective heat dissipation and quiet operation.
8. IP65 Protection Level
All-weather outdoor operation with unique protection technology. Anti-ultraviolet, durable, and reliable performance in any weather condition.
Packaging and Shipping
Available in wooden case or flight case packaging. Multiple shipping options including sea, air, or DHL.
Our professional team provides full support for all your LED display needs.
