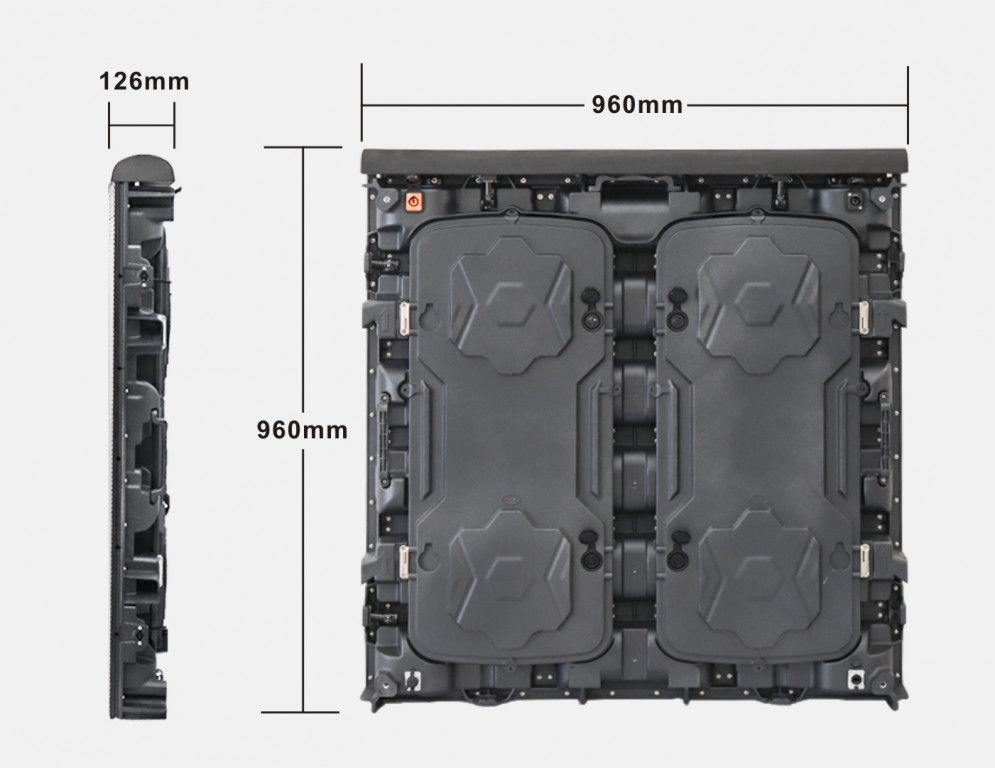

Name: P5 IP65 Stadium LED Display 960x960mm 6500cd/m²
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P5
Price: 10000.00 USD
Availability: InStock

Home Products Stadium LED Display

P5 IP65 Stadium LED Display 960x960mm 6500cd/m²

Product Details:

Place of Origin:	ShenZhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB/UL
Model Number:	P5

Payment & Shipping Terms:

Minimum Order Quantity:	2 pcs
Price:	negotiation
Packaging Details:	flight case/wooden case/carton
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	5mm	Waterproof:	IP65
MBI:	5024	Viewing Angle:	H:160 V:140
Optimal Viewing Distance:	>=5m	Voltage:	DC5V
LED Parameter:	R:625-630nm	Module Size:	320*160mm
Highlight:	perimeter led display , perimeter led screen

Football Stadium Perimeter Video LED Display Cabinet 960X960mm P5 P6 P8 P10 Stadium Screen

Key Specifications

Attribute	Value
Pixel Pitch	5mm
Waterproof	IP65
MBI	5024
Viewing angle	H:160° V:140°
Optimal viewing distance	≥5m
Voltage	DC5V
LED Parameter	R:625-630nm
Module Size	320*160mm

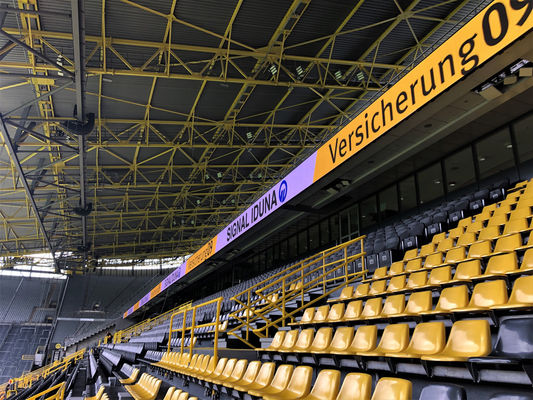

Outdoor P10 P8 P6 Football Basketball Stadium Perimeter LED Screen Display

Full color LED display designed specifically for stadium perimeter applications with high visibility and durability.

Technical Specifications

Pitch size	5mm
Module size	320mm*160mm
Panel pixel(dots)	64*32
Pixel configuration	1Red, 1Green, 1Blue
Color scale	256-65536grade/16777216colors
Pixel density	40000 pixels/square meter
View angle(H/V)	160/120 degree
Brightness	≥6500cd/square meter
View distance	5-150m
Power consumption	100-1200W/square meter
Net weight	8kg/pcs
Operating temperature	-25°C~+60°C
Operating humidity	10%--95%RH
Life time	≥100,000hours

Product Features

High refresh rate (3800Hz) - Eliminates flicker during live broadcasts and ensures high-definition display quality
Standard 320mm×160mm modules - Easy assembly, maintenance, and pixel pitch conversion (P5/P8/P10)

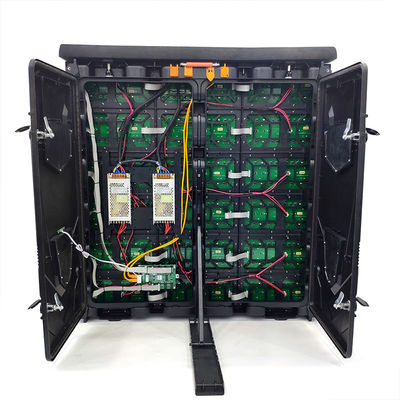

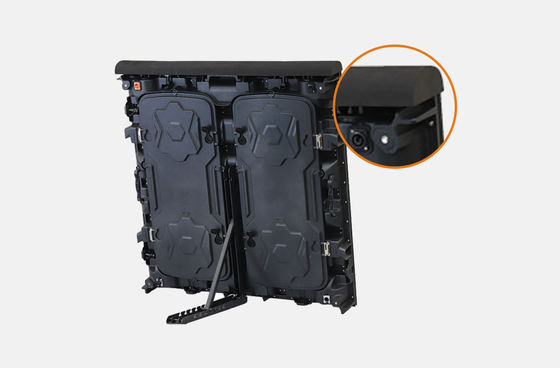

Exquisite cabinet design - Lightweight with quick locks and ergonomic handles for easy installation and transport
Adjustable support structure - Supports 60°-90° multi-angle adjustment to adapt to various installation conditions
Soft mask design - Protective padding ensures safety for players and spectators
Ultra-lightweight - Only 28.5kg per unit reduces transportation and installation costs
IP65 waterproof rating - Special air inlet and waterproof structure for all-weather operation
