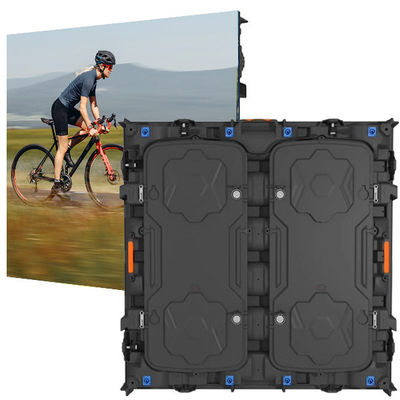

Name: SMD2727 6mm Stadium LED Display IP65 Waterproof DC5V
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P6
Price: 10000.00 USD
Availability: InStock

Home Products Stadium LED Display

SMD2727 6mm Stadium LED Display IP65 Waterproof DC5V

Product Details:

Place of Origin:	ShenZhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/UL
Model Number:	P6

Payment & Shipping Terms:

Minimum Order Quantity:	5 pcs
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixels:	6mm	Led Type:	SMD2727
Waterproof:	Ip65	Cabinet:	Die Casting Aluminum/iron
MBI:	5024	Viewing Angle:	H:100 V:50
Optimal Viewing Distance:	>=4m	Voltage:	DC5V
Brightness:	More Than 3000cd/㎡	Pixel Composing:	1 R1G1B
LED Parameter:	R:625-630nm
Highlight:	perimeter led display , led perimeter advertising boards

SMD2727 Full Color Stadium LED Display Video Display Function DC5V Voltage

Product Specifications

Attribute	Value
Pixels	6mm
Led Type	SMD2727
Waterproof	IP65
Cabinet	Die casting aluminum/iron
MBI	5024
Viewing Angle	H:100° V:50°
Optimal Viewing Distance	≥4m
Voltage	DC5V
Brightness	More than 3000cd/㎡
Pixel Composing	1 R1G1B
LED Parameter	R:625-630nm

Product Description

QC LED Video Displays

Our LED video display systems deliver crisp, high-contrast video for any application
Quick content changes with full-color LED screens in various resolutions and sizes
Available in pixel pitches from 2.35mm to 48mm for optimal viewing
Flexible panel design for custom sizes, curves, and corners
High clarity messaging with customizable controls and programming
Industry-leading contrast ratio and brightness for all lighting conditions

Technical Specifications

No.	Item	Type 1 Cabinet			Type 2 Cabinet
No.	Item	P5	P8	P10	P5	P8	P10
0	Price	$338/sq.m	$323/sq.m	$309/sq.m	$366/sq.m	$366/sq.m	$338/sq.m
1	Pixel Pitch	5mm	8mm	10mm	5mm	8mm	10mm
2	Pixel Configuration	1R1G1B,SMD3535			1R1G1B,SMD3535
3	Pixel Density	40000pixels/m²	15625pixels/m²	10000pixels/m²	40000pixels/m²	15625pixels/m²	10000pixels/m²
4	Module Size	320mm*160mm			320mm*160mm
5	Module Resolution	64*32pixels	40*20pixels	32*16pixels	64*32pixels	40*20pixels	32*16pixels
6	Cabinet Size	960*960mm			960*960mm
7	Cabinet Resolution	192*192Pixels	120*120Pixels	96*96Pixels	192*192Pixels	120*120Pixels	96*96Pixels
8	Cabinet Type	Iron			Die casting Aluminum
9	Cabinet Thickness	17cm			8.4cm
10	Weight	50Kgs/Cabinet			32Kgs/Cabinet
11	Brightness	>6000cd/m²
12	Refresh Rate	>2000Hz
13	Gray Scale	65536
14	View Angle (H/V)	≥120°/60°
15	Max Power Consumption	1200W	1000W	800W	1200W	1000W	800W
16	Average Power Consumption	400W	300W	200W	400W	300W	200W
17	Input Voltage	220V
18	Working Temperature	-20℃~45℃
19	Working Humidity	10%-90%RH
20	IP Grade	IP65/IP54

Cabinet Design

Packaging & Shipping

SCXK has specialized in LED technology since 2005. As a leading manufacturer based in Shenzhen, China, we provide comprehensive technical solutions for full-color indoor and outdoor LED displays, rental LED displays, and LED modules.

Our Services

Pre-sale Service

24-hour response to inquiries
Market research and forecasting
Customized professional solutions
Technical datasheets and samples
Special packaging and factory visit arrangements

In-sale Service

Production process tracking
Progress photos and videos
Complimentary spare parts

After-sale Service

24-hour complaint response
24-month warranty
Free technician training
Complete documentation including installation guides and software manuals

Explore our High Brightness P4 SMD indoor full color rental LED display screen

We build what you can rely on!

Let's work together to create outstanding visual solutions.
