Name: P10 SMD Outdoor Stadium LED Display Screen IP65 Full Color
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 10000.00 USD
Availability: InStock

Home Products Stadium LED Display

P10 SMD Outdoor Stadium LED Display Screen IP65 Full Color

Product Details:

Place of Origin:	Shenzhen in China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	6 sqm
Price:	negotiation
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-10 working days after receive your payment
Payment Terms:	T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability:	5000sqm per month

Contact Now

Detailed Product Description

Pixel Pitch:	10mm	Tube Chip Color:	Full Color
Led Type:	SMD 3535	Display Function:	Video/Text/Image
Waterproof:	IP65	Frame Frequency:	>=60HZ
Dot Density:	10000	Brightness:	>=5000cd/m2
Highlight:	Football Stadium Perimeter LED Display Screen , Outdoor Full Color LED Display Screen , P10 SMD LED Display Screen

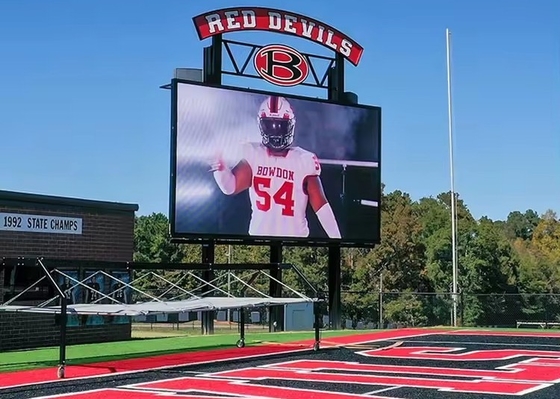

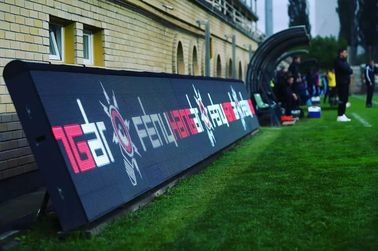

Outdoor Full Color P10 SMD Football Stadium Perimeter LED Display Screen

Product Specifications

Attribute	Value
Pixel Pitch	10mm
Tube Chip Color	Full color
Led Type	SMD 3535
Display Function	Video/Text/Image
Waterproof	IP65
Frame Frequency	>=60HZ
Dot Density	10000
Brightness	>=5000cd/m2

Technical Details

Pitch size	10mm
Module size	320mm*160mm
Panel pixel(dots)	32*16
Pixel configuration	1Red,1Green,1Blue
Color scale	256-65536grade/16777216colors
Pixel density	10000 pixels/square meter
View angle(H/V)	160/120 degree
Brightness	≥ 5000cd/square meter
View distance	≥ 10m
Power consumption	100-1200W/square meter
Net weight	28.5kg/pcs
Operating temperature	-25°C~+60°C
Operating humidity	10% --95%RH
Life time	≥ 100,000hours

Key Features

High refresh rate (up to 3800Hz) - Eliminates flicker during live broadcasts and ensures high-definition display quality
Standard 320mm×160mm modules - Easy assembly, maintenance, and pixel pitch conversion
Exquisite cabinet design - Lightweight with quick locks and humanized handlebar for easy installation
Independent support structure - Adjustable installation angles from 60° to 90°
Soft mask design - Safety protection for players and spectators
Ultra lightweight - Only 28.5kg per unit for easy transportation and installation
IP65 waterproof rating - All-weather performance with excellent water resistance
Advanced thermal management - Special air inlet design for effective heat dissipation
