Name: P10 Outdoor Waterproof Stadium LED Display 10mm Pixel IP65
Brand: Shenzhen ShiXin Display Technology Co.,Ltd
SKU: P10
Price: 421.00 USD
Availability: InStock

Home Products Stadium LED Display

P10 Outdoor Waterproof Stadium LED Display 10mm Pixel IP65

Product Details:

Place of Origin:	ShenZhen China
Brand Name:	SCXK
Certification:	CE/ROHS/FCC/ISO/CB
Model Number:	P10

Payment & Shipping Terms:

Minimum Order Quantity:	5 sqm
Price:	290$-552$
Packaging Details:	flight case, wooden case, carton, it is up to you.
Delivery Time:	7-15 working days after receive your payment
Payment Terms:	Western Union,T/T
Supply Ability:	5000 sqm per month

Contact Now

Detailed Product Description

Pixels:	10mm	Waterproof:	IP65
Cabinet:	Iron Or Aluminum For Options	Frame Frequency:	60-85Hz
Viewing Angle:	160/140	Surface Flatness:	GAP< 0.5mm
Min.View Distance:	10
Highlight:	perimeter led display , led perimeter advertising boards

P10 Advertising Flexible Signs Full Color Outdoor Waterproof Stadium Perimeter LED Screen

Product Specifications

Attribute	Value
Pixels	10mm
Waterproof	IP65
Cabinet	Iron or Aluminum For Options
Frame Frequency	60-85Hz
Viewing Angle	160/140
Surface Flatness	GAP < 0.5mm
Min. View Distance	10m

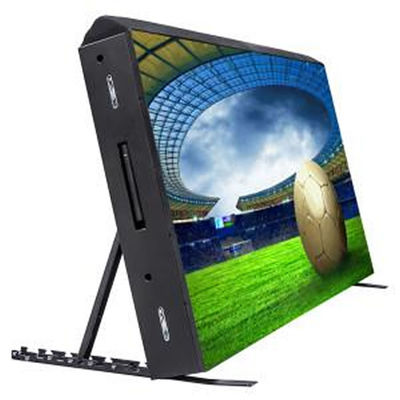

P10 Soft Mask Football Stadium Perimeter LED Screen Display

Special designed for stadium environments with superior visibility and protection features.

Key Features

Special designed cabinet with frame support adjustable from 75 to 90 degrees for optimal viewing angles
Soft mask protection for LED lamps and player safety during collisions
High efficiency optical fiber transmission system eliminates signal delay across large soccer fields

Brightness and Chromaticity Calibration

Precision calibration ensures superior picture quality with brightness difference < 2% and chromaticity difference < 0.005. Fully adjustable settings allow customization to your requirements.

Technical Parameters

Parameter	Specification
Model	Outdoor SMD P10
Resolution	10mm
Pixel Configuration	1R1G1B
Pixel Density	10000/m²
Module Resolution	32*16
Module Size	320*160mm
View Distance	10-400m
White Balance Brightness	>5000cd/㎡
Color Temperature	6500K-9500K
Horizontal View Angle	120°
Vertical View Angle	60°
Refresh Frequency	>3500Hz

Pixel-Perfect Image Quality

Our meticulous attention to detail ensures every marketing image, video, or text appears with perfect clarity and vibrant colors, capturing every nuance of your content.

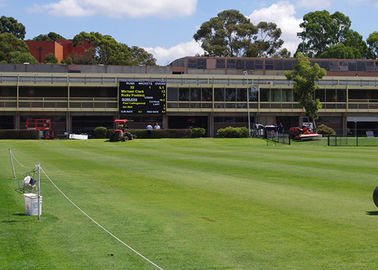

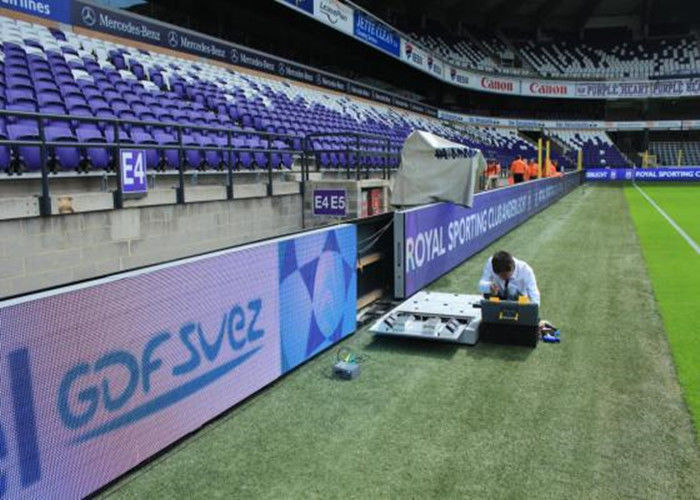

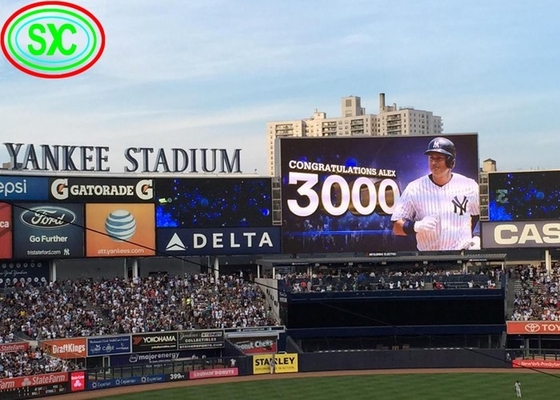

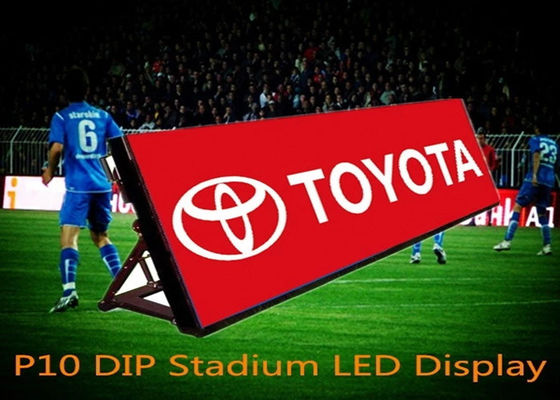

Application Examples
